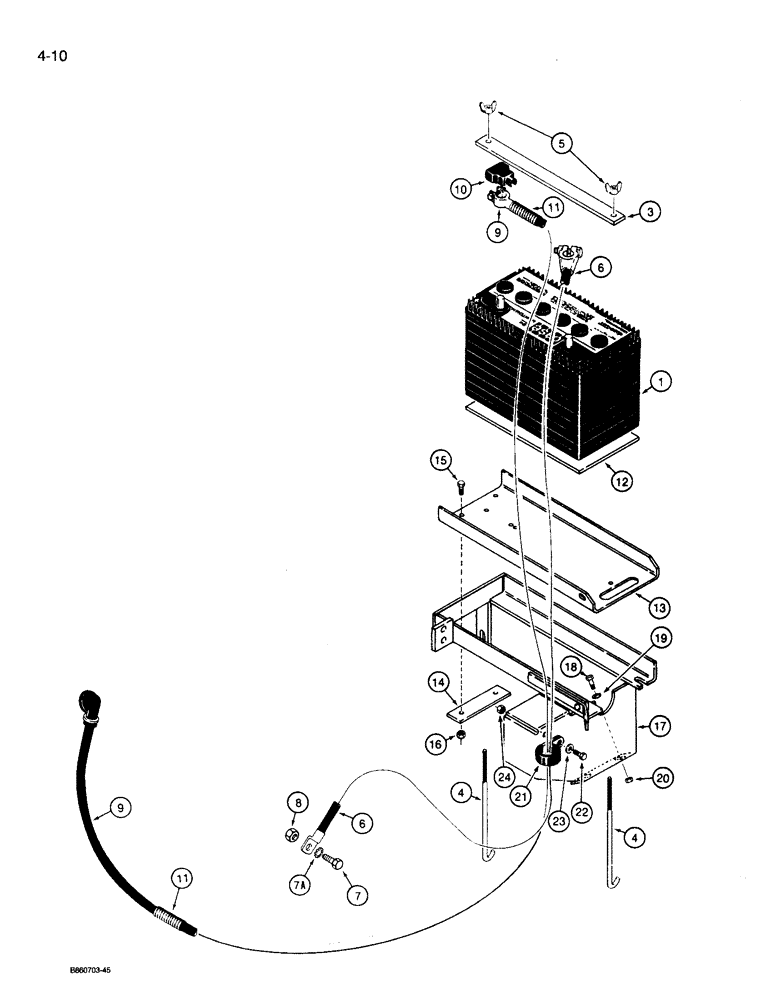

Запчасти Case 360 (4-10) - BATTERY, MOUNTING, AND CABLES - DEUTZ DIESEL ENGINE MODELS (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

12V, service replacement, replaces BHC30

1шт.

3

H237388

BRACKET

battery hold down

1шт.

4

H433440

BOLT

J-type, 5/16 NC x 9-3/4 inch, battery hold down

2шт.

5

129-419

WING NUT,5/16"-18

wing, 5/16 inch NC

2шт.

6

H84707

NEG BATTERY CABLE

negative, battery, see decal Fig. 9-138 for negative ground tag H198457

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

, Serial Range: -JAF0104257

1шт.

7

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

P.I.N. JAF0104257 and after

1шт.

7a

193-53

LOCK WASHER,Ext Tooth, 3/8"

1шт.

8

232-4116

NUT,3/8"-16, GC

1шт.

9

H433415

NEG BATTERY CABLE

positive, Serial Range: battery-starter

1шт.

10

H102681

COVER ASSY

positive battery cable terminal

1шт.

11

R40573

LOOM

49 inch (1245 mm) long, positive battery cable, cut from R44806 conduit, see below

1шт.

12

H378281

LARGE PLATE

PLATE, LARGE rubber, battery

1шт.

13

H433426

CHANNEL

battery

1шт.

14

H433427

LARGE PLATE

PLATE, LARGE reinforcing

1шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

16

232-4115

LOCK NUT,5/16"-18, GC

2шт.

17

H672157

BRACKET

battery support

1шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

19

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

20

232-4115

LOCK NUT,5/16"-18, GC

2шт.

21

D40471

CLAMP

battery cables

1шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

23

H426775

WASHER

flat, 5/16 inch, hardened

1шт.

24

232-4115

LOCK NUT,5/16"-18, GC

1шт.

R44806

LOOM

88-1/2 inch (2248 mm) long

1шт.
