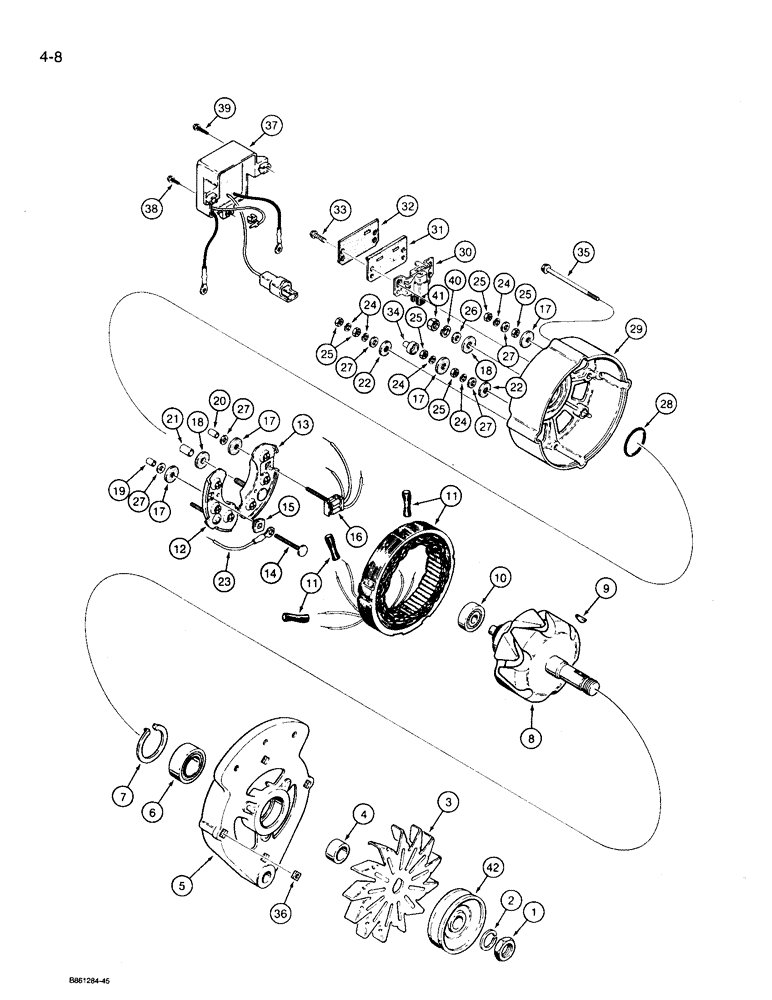

Запчасти Case 360 (4-08) - ALTERNATOR - ALL WISCONSIN GASOLINE ENGINE MODELS, DEUTZ ENGINE MODELS PRIOR TO P.I.N. JAF0104527 (04) - ELECTRICAL SYSTEMS

*

PRIOR TO P.I.N. JAF0104527

1шт.

H434491

ALTERNATOR

engine, clockwise rotation, Incl. Ref. 1 - 41

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 12V, 65 Amp

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR

1шт.

1

A44669

NUT

hex, 5/8 inch NF, special, pulley

1шт.

2

192-25

LOCK WASHER,5/8"

1шт.

3

A47602

FAN

alternator

1шт.

4

A43405

SPACER

fan

1шт.

5

A43397

HOUSING

front

1шт.

6

A42810

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

front

1шт.

7

A43394

RETAINER

snap, front bearing

1шт.

8

A47604

ROTOR

alternator

1шт.

9

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

10

A44427

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

rear

1шт.

11

N14084

STATOR

alternator

1шт.

12

N14086

DIODE

rectifier, negative

1шт.

13

A49691

DIODE

rectifier, positive

1шт.

14

111-324

CARRIAGE BOLT,Short NK, 3/8"-16 x 7/8", G2

carriage, No. 10 NC x 1-1/2 inch

1шт.

15

A41041

INSULATOR

square

1шт.

16

A49690

RECTIFIER

trio

1шт.

17

A47612

WASHER

insulating, No. 10 ID

4шт.

18

A47613

WASHER

insulating, 1/4 inch ID

2шт.

19

A47608

SLEEVE

insulating, No. 10 x 1/3 inch

1шт.

20

A43395

RUBBER INSULATOR

insulation, No. 10 x 19/32 inch

1шт.

21

A44771

SLEEVE CYLINDER

insulation, 1/4 x 1/2 inch

1шт.

22

A48409

WASHER

insulation, 13/64 inch ID

2шт.

23

A47606

CABLE

AC terminal

1шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

5шт.

25

129-17

NUT,Hex, #10 - 24

6шт.

26

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

flat, 1/4 inch, special

1шт.

27

195-513

WASHER,#10

flat, No. 10

5шт.

28

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

Bearing seal

1шт.

29

A45026

HOUSING

rear

1шт.

30

A41048

BRUSH, COMMUTATOR

BRUSH rotor, component parts not serviced separately

1шт.

31

A44769

GUARD

dirt

1шт.

32

A43399

COVER

brush

1шт.

33

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

machine, pan head slotted, No. 4 NC x 3/16 inch

2шт.

34

A44630

CYLINDER END CAP

AC terminal

1шт.

35

A44423

BOLT

hex, No. 10 NC x 2-55/64 inch, special

4шт.

36

NLS

NO LONGER SERVICED

square, No. 10 NC, special

4шт.

37

N14088

VALVE

voltage, component parts not serviced separately

1шт.

38

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

self-tapping, hex washer head, No. 10 NC x 3/8 inch

1шт.

39

187-1090

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

self-tapping, hex washer head, No. 10 NC x 5/8 inch

2шт.

40

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

1шт.

41

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

42

A44678

PULLEY

alternator, not included with alternator assembly, order separately, replaces H107508 pulley

1шт.
