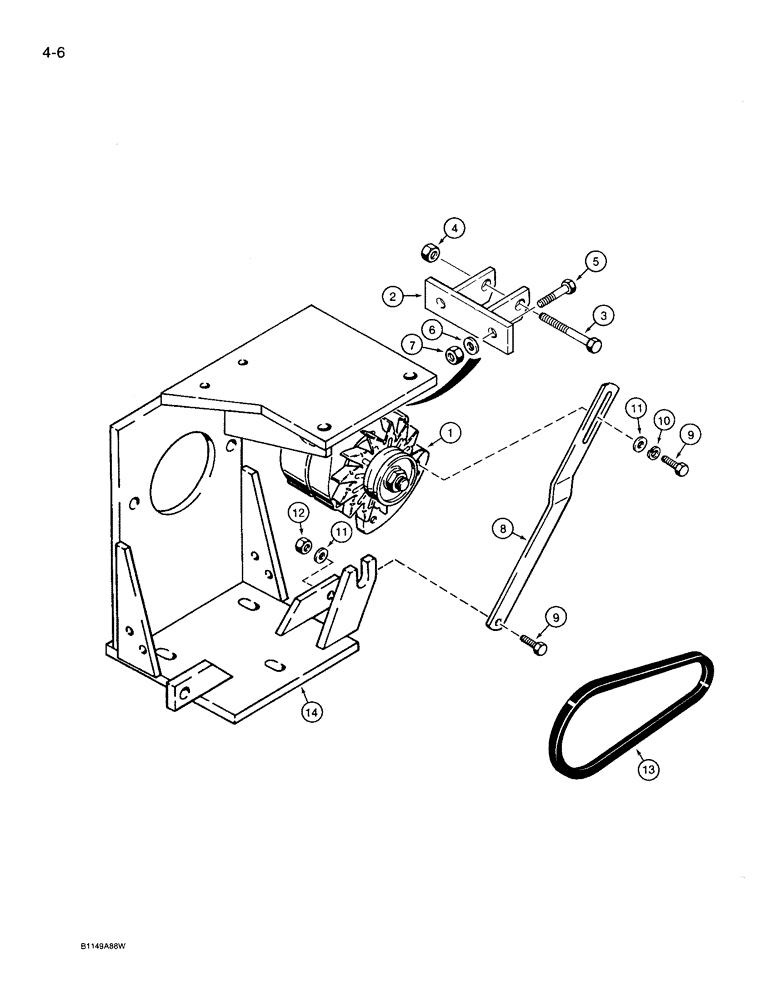

Запчасти Case 360 (4-06) - ALTERNATOR MOUNTING - WISCONSIN GASOLINE ENGINE MODELS, P.I.N. 1256193 AND AFTER (04) - ELECTRICAL SYSTEMS

P.I.N. 1256193 AND AFTER

1шт.

1

H434491

ALTERNATOR

engine, does not include H107508 pulley, order separately, alternator parts list Fig. 4-8

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR - NA Only

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR - NA Only

1шт.

2

H672833

BRACKET

alternator mounting, attaches alternator to ground drive pump mounting bracket, Ref. 14

1шт.

3

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

4

232-4118

NUT,1/2"-13, GC

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 3/8 inch, hardened

2шт.

7

232-4116

NUT,3/8"-16, GC

2шт.

8

H191833

LINK

alternator adjusting (replaces H428953)

1шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

10

492-11031

LOCK WASHER,5/16"

1шт.

11

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

12

232-4115

LOCK NUT,5/16"-18, GC

1шт.

13

H435937

V-BELT,9.65 mm W x 250.00 mm L

Alternator Drive, Replaces H142695

1шт.

14

H672831

BRACKET

ground drive pump mounting, see Fig. 6-6 for bracket mounting hardware

1шт.
