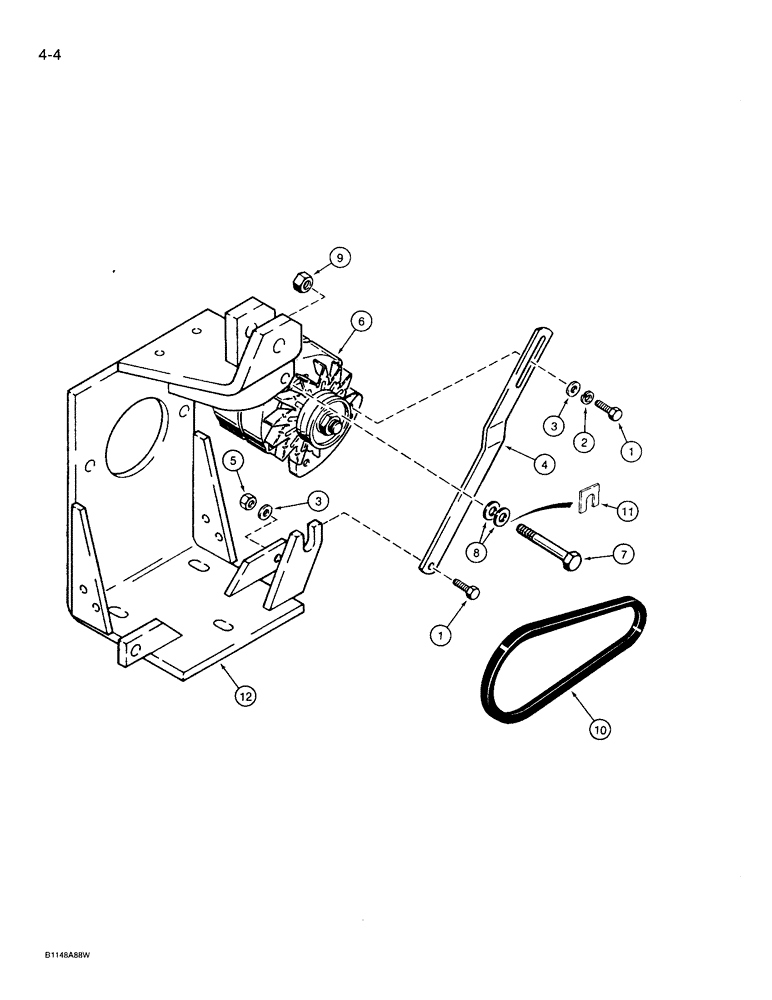

Запчасти Case 360 (4-04) - ALTERNATOR MOUNTING - WISCONSIN GASOLINE ENGINE MODELS, PRIOR TO P.I.N. 1256193 (04) - ELECTRICAL SYSTEMS

PRIOR TO PIN 1253193

1шт.

1

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

2

492-11031

LOCK WASHER,5/16"

1шт.

3

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

4

H191833

LINK

alternator adjusting (replaces H428953)

1шт.

5

232-4115

LOCK NUT,5/16"-18, GC

1шт.

6

H434491

ALTERNATOR

engine, does not include H107508 pulley, order separately, alternator parts list Fig. 4-8

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR - NA Only

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR - NA Only

1шт.

7

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64")

1шт.

9

232-4118

NUT,1/2"-13, GC

1шт.

10

H435937

V-BELT,9.65 mm W x 250.00 mm L

Alternator Drive, Replaces H142695

1шт.

11

H434645

SPACER

alternator adjusting, if used

1шт.

12

H670851

BRACKET

ground drive pump mounting, see Fig. 6-4 for bracket mounting hardware

1шт.
