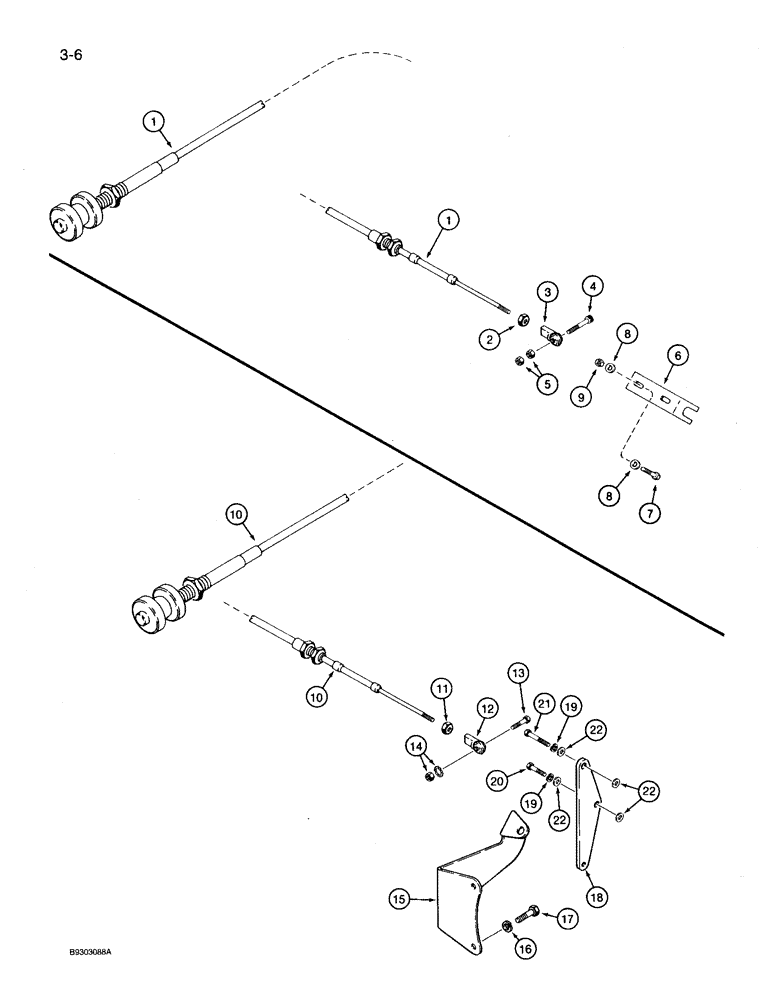

Запчасти Case 360 (3-06) - THROTTLE CONTROL AND LINKAGE - DEUTZ DIESEL ENGINE MODELS (03) - FUEL SYSTEM

1

H433614

CABLE

throttle control; PRIOR TO PIN JAF0104257

1шт.

2

225-14210

NUT,#10-32

Prior to PIN JAF0104257

1шт.

3

H433283

BALL JOINT

throttle cable connecting; PRIOR TO PIN JAF0104257

1шт.

4

165-36

HEX SOC SCREW,#10 - 32 x 1 1/4"

hex socket, No. 10 NF x 1-1/4 inch; PRIOR TO PIN JAF0104257

1шт.

5

231-24109

LOCK NUT,#10-32, GB

hex lock, No.10 NF; PRIOR TO PIN JAF0104257

2шт.

6

H433411

ANGLE

throttle cable, attaches to engine air sweep bracket; PRIOR TO PIN JAF0104257

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

PRIOR TO PIN JAF0104257

2шт.

8

H426775

WASHER

flat, 5/16", hardened, plated; PRIOR TO PIN JAF0104257

4шт.

9

232-4115

LOCK NUT,5/16"-18, GC

Prior to pin JAF0104257

2шт.

10

H433614

CABLE

throttle control; PRIOR TO PIN JAF0104257

1шт.

11

225-14210

NUT,#10-32

PIN JAF0104257 and after

1шт.

12

H433283

BALL JOINT

throttle cable connecting; PIN JAF0104257 AND AFTER

1шт.

13

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

machine, hex, No. 10 NC x 3/4 inch; PIN JAF0104257 AND AFTER

1шт.

14

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

hex, with external tooth lock washer, No. 10 NC; PIN JAF0104257 AND AFTER

1шт.

15

121545A1

BRACKET

cable mounting; PIN JAF0104257 AND AFTER

1шт.

16

892-11010

LOCK WASHER,M10

PIN JAF0104257 and after

2шт.

17

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

PIN JAF0104257 and after

2шт.

18

121548A1

LEVER

throttle; PIN JAF0104257 AND AFTER

1шт.

19

492-11025

LOCK WASHER,1/4"

PIN JAF0104257 and after

2шт.

20

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, 6 - 1 x 20 mm; PIN JAF0104257 AND AFTER

1шт.

21

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

hex, 6 - 1 x 25 mm; PIN JAF0104257 AND AFTER

1шт.

22

H426767

WASHER

flat, 1/4 inch, hardened; PIN JAF0104257 AND AFTER

4шт.
