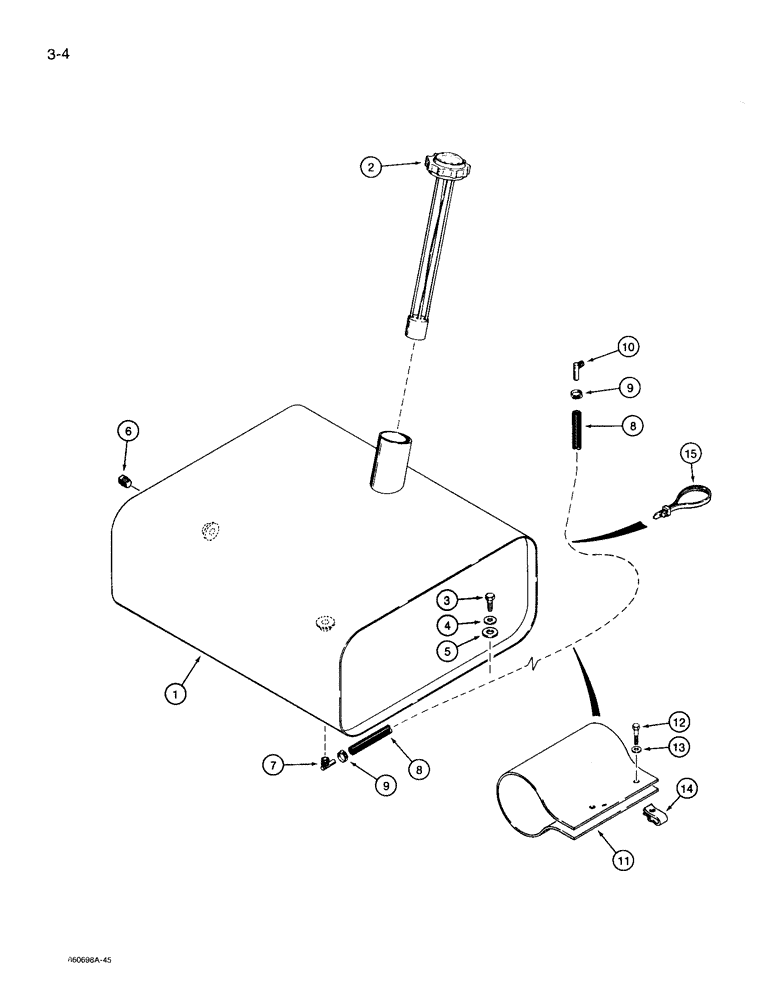

Запчасти Case 360 (3-04) - FUEL TANK AND FUEL LINES - WISCONSIN GASOLINE ENGINE MODELS (03) - FUEL SYSTEM

H672620

FUEL TANK

fuel, Incl. Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

fuel

1шт.

2

N13955

GAUGE

fuel level indicator

1шт.

3

187-1070

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

hex, self-tapping, 5/16 NC x 1 inch

4шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

5

H274894

WASHER

flat, 1/2 inch, special

4шт.

6

221-12

PLUG,Sq Hd, 1/4"-18

square head, 1/4 inch NPT

1шт.

7

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

1шт.

8

S119414

X

HOSE - 1/4 (6) ID x 84 inch (2134 mm) long, cut from S118378 bulk hose, see below

1шт.

9

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

10

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

11

H374678

FLAP

hose, rubber, at articulation joint

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

14

H346650

NUT

clip, 5/16 inch NC

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

S118378

HOSE,0.25" ID BULK, SAE 30R2 Type 3

Use to make Ref. 8

1шт.
