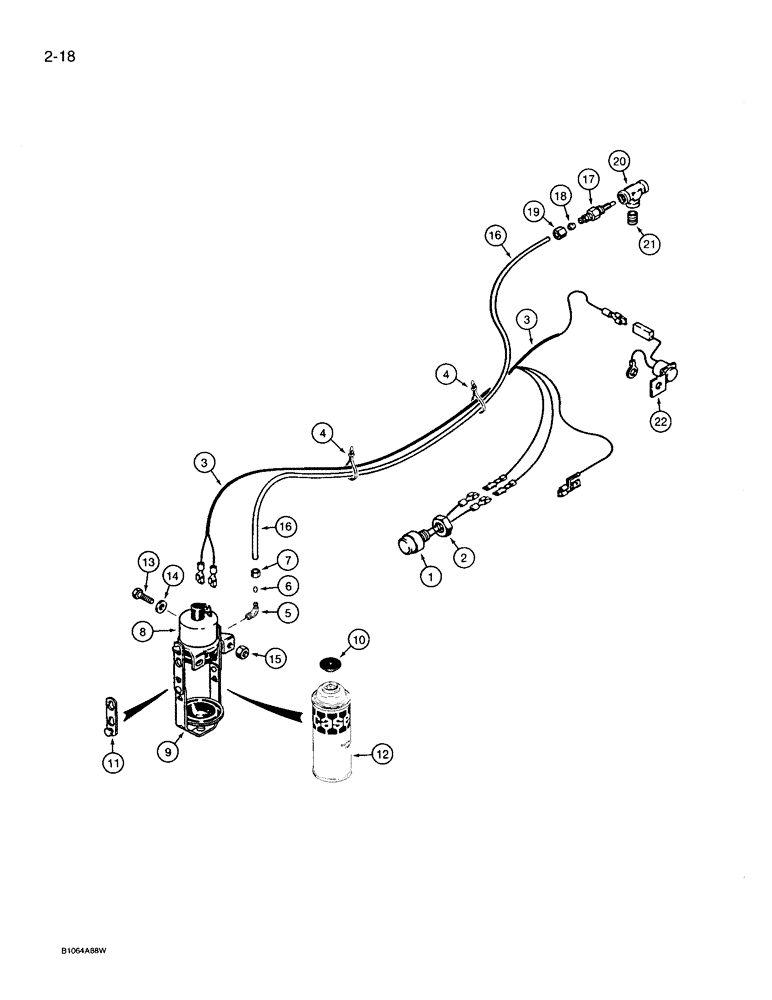

Запчасти Case 360 (2-18) - COLD START SYSTEM (02) - ENGINE

1

A135520

SWITCH

SWITCH - cold start

1шт.

2

425-1110

NUT,5/8"-18, G5

1шт.

3

H434571

HARNESS

wiring, ether start

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

A143381

SOLENOID

ether injection, Incl. Ref. 5 - 10

1шт.

A143381 solenoid assembly was replaced by 185552A2 per ECN H95A301. If looking for the plastic cannister holder that is part of the new assembly, the P/N is 190752A1. New style solenoid assembly uses smaller ether can than previous. Use ZAD3 from ship direct program. ZAD3 is found under the Gold Eagle Chemical program.

1шт.

5

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1шт.

6

222-100

TUBE NUT,1/8" Tube

compression fitting

1шт.

7

222-110

TUBE NUT,3/8"-24

compression fitting

1шт.

8

NSS

NOT SOLD SEPARAT

SOLENOID - ether injection

1шт.

9

R30785

BAIL

can

1шт.

10

R30786

GASKET

can

1шт.

11

R30812

LINK

extension

1шт.

12

B17072

START SPRAY FLUID

starting, cylinder, 16 fluid ounces (473 ml)

1шт.

13

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

14

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

15

232-4115

LOCK NUT,5/16"-18, GC

2шт.

16

H435723

TUBE,2.41 mm ID x 3.17 mm OD x 1250 mm L

53-1/4 inch (1352 mm) long, cut from A149932 tube, see below

1шт.

17

A145069

NOZZLE INJECTION

ether start, Incl. Ref. 18 and 19

1шт.

18

222-100

TUBE NUT,1/8" Tube

compression fitting

1шт.

19

222-110

TUBE NUT,3/8"-24

compression fitting

1шт.

20

221-421

TEE,1/8" NPT

1/8 inch NPT, attaches to air cleaner and air restriction indicator

1шт.

21

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

1/8 NPT x 3/4 inch

1шт.

22

A171943

IGNITION SWITCH

temperature, circuit breaking, includes lead wires

1шт.

A149932

TUBE

83 inch (2108 mm) long, nylon, use to make Ref. 16

1шт.
