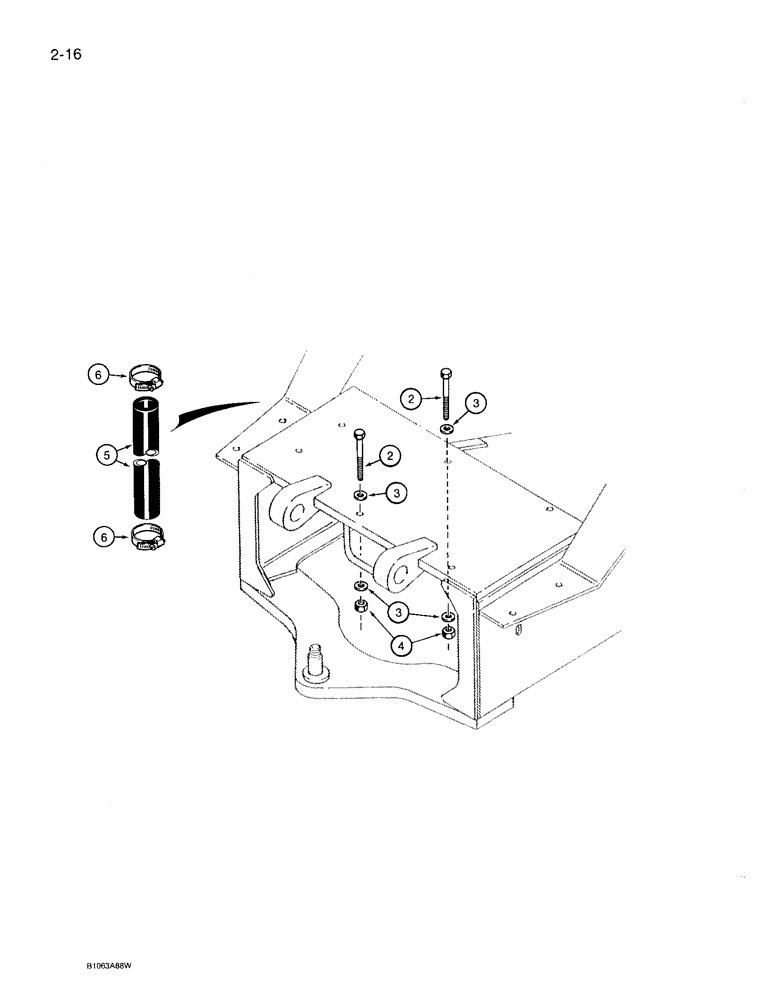

Запчасти Case 360 (2-16) - ENGINE MOUNTING - WISCONSIN GASOLINE ENGINE MODELS (02) - ENGINE

1

H672126

ENGINE ASSEMBLY

ENGINE ASSY Wisconsin gasoline VH4D , not shown, see your authorized Case dealer for engine components

1шт.

2

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2 NC x 2-3/4 inch

4шт.

3

H274894

WASHER

flat, 17/32 x 1-5/64 inch

8шт.

4

232-4118

NUT,1/2"-13, GC

4шт.

5

H433921

HOSE,355.00 mm, SAE 20R5 Class D2

Extension, Engine Oil Fill Tube

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

hose

2шт.
