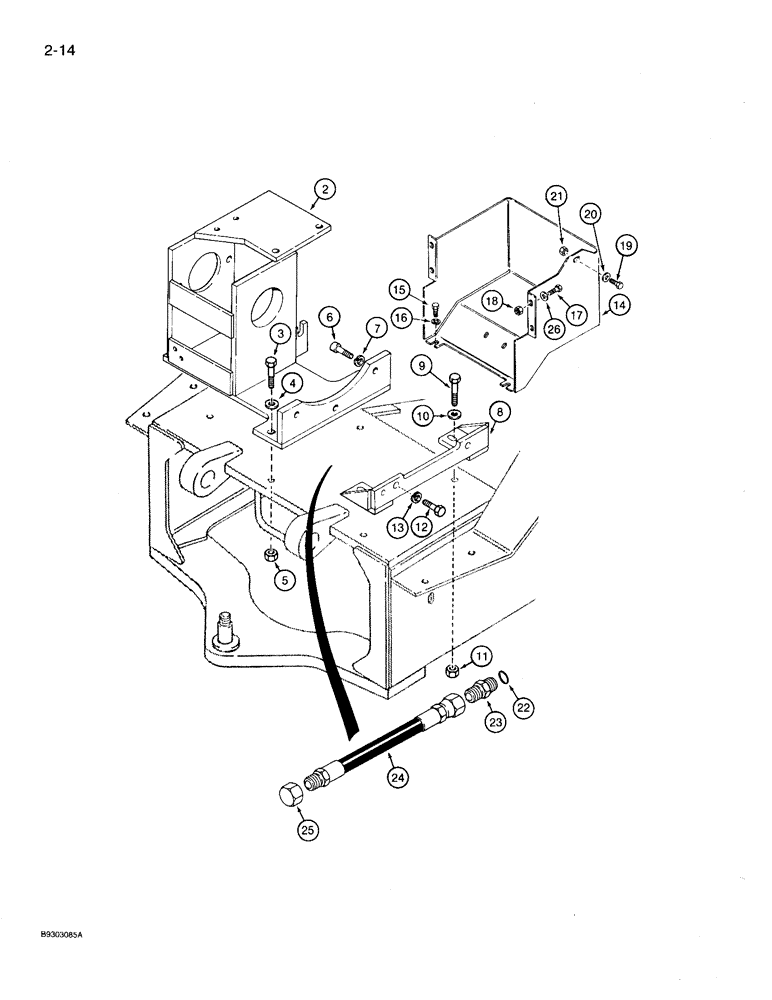

Запчасти Case 360 (2-14) - ENGINE MOUNTING - DEUTZ DIESEL ENGINE MODELS, PRIOR TO P.I.N. JAF0104257 (02) - ENGINE

1

H672168

ENGINE ASSEMBLY

ENGINE ASSY Deutz diesel, not shown, see your authorized Case dealer for engine components

1шт.

2

H673144

BRACKET

mounting, engine and ground drive pump, left-hand side

1шт.

3

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

4

H274894

WASHER

flat, 17/32 ID x 1-5/64 inch OD, special

4шт.

5

232-4118

NUT,1/2"-13, GC

4шт.

6

864-12045

HEX SOC SCREW,M12 x 45mm, Cl 8.8

hex socket, 12 - 1.75 x 45 mm

3шт.

7

892-1112

LOCK WASHER,M12

3шт.

8

H672765

BRACKET

mounting, engine, right-hand

1шт.

9

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

10

H274894

WASHER

flat, 17/32 ID x 1-5/64 inch OD, special

2шт.

11

232-4118

NUT,1/2"-13, GC

2шт.

12

814-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 8.8, Full Thd

hex, 14 - 2 x 45 mm

4шт.

13

892-1114

LOCK WASHER,M14

lock, 14 mm

4шт.

14

H433431

BRACKET

air sweep

1шт.

15

814-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

hex, 6 - 1 x 10 mm

2шт.

16

492-11025

LOCK WASHER,1/4"

2шт.

17

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

18

280129

NUT,1/4"-20

hex lock, 1/4 inch NC

4шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

H426775

WASHER

flat, 5/16 inch, hardened

1шт.

21

232-4115

LOCK NUT,5/16"-18, GC

1шт.

22

H434437

RING

flat, special, used between adapter H435411 (Ref. 23) and engine

1шт.

23

H435411

FITTING

straight, special, engine to drain hose

1шт.

24

H435406

HOSE,9.65 mm ID x 305.00 mm, SAE 100R3

Engine Oil Drain

1шт.

25

218-754

CAP,37 Degree, 9/16"-18

Hex, drain hose

1шт.

26

H426767

WASHER

flat, 1/4 inch, hardened

4шт.
