Запчасти Case 360 (9-142) - DECALS (09) - CHASSIS/ATTACHMENTS

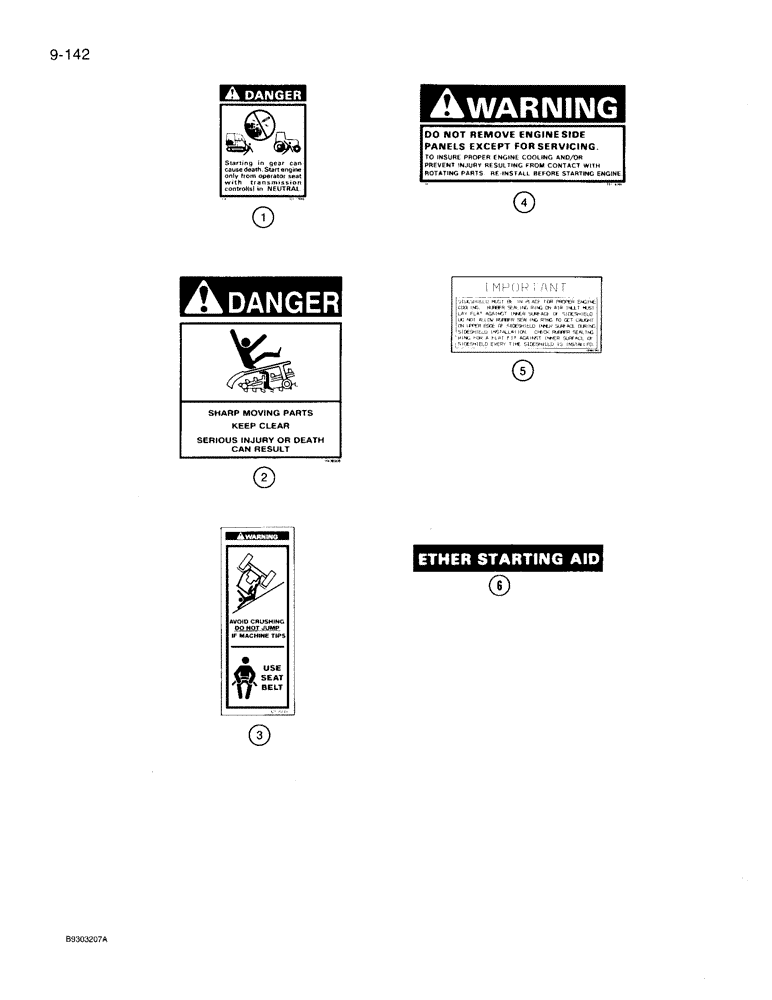

Схема запчастей Case 360 - (9-142) - DECALS (09) - CHASSIS/ATTACHMENTS
6
5
3
2
1
4

Артикул

Название

Примечание

Количество

1

321-7040

DANGER DECAL

Starting in gear can cause death

1шт.

2

H438908

DECAL

Danger, sharp moving parts, keep clear, 110 x 110 mm long

1шт.

3

321-7030

WARNING DECAL

Do Not Jump - Use Seat Belt, Used on models with Deutz diesel engine, P.I.N. JAF0104257 and after

1шт.

4

321-5701

DECAL

Warning, do not remove engine side panels, used on models with Deutz diesel engine, P.I.N. JAF0104257 and after

1шт.

5

124017A1

DECAL

Important, sideshield must be in place, brown with white letters, models with Deutz diesel engine, P.I.N. JAF0104257 and after

1шт.

5

179081A1

DECAL

Important, sideshield must be in place, black with white letters, models with Deutz diesel engine

1шт.

6

D124152

DECAL

ether starting aid

1шт.

A180055

CAP ASSY.

Eagle Insert

1шт.

114983A1

BEZEL

Instrument Panel

1шт.

Выбрано товаров: 9
