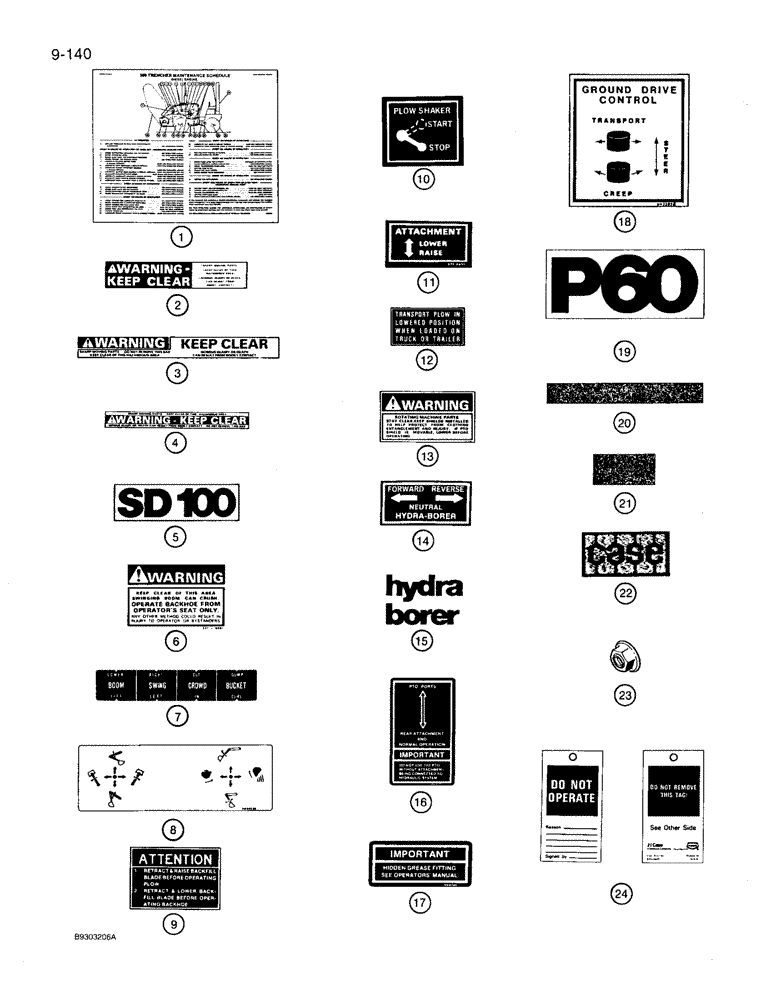

Запчасти Case 360 (9-140) - DECALS (09) - CHASSIS/ATTACHMENTS

1

8-99000

DECAL

maintenance schedule, used on models with Deutz diesel engine, prior to P.I.N. JAF0104257

1шт.

1a

122415A1

DECAL

maintenance schedule, used on models with Deutz diesel engine, P.I.N. JAF0104257 and after, not shown

1шт.

1b

8-98990

DECAL

maintenance schedule, used on models with Wisconsin gasoline engine, not shown

1шт.

2

H438999

DECAL

Danger, sharp moving parts, keep clear, 100 x 295 mm long, crumber boom mounting bracket

2шт.

3

321-6687

DECAL

Warning, keep clear, sharp moving parts, crumber boom or 4 foot digging chain guard

2шт.

4

321-6260

DECAL

Warning, keep clear, sharp moving parts, 3 foot or 5 foot digging chain guard

2шт.

5

H427864

DECAL

SD100, backhoe, brown

2шт.

5

179091A1

DECAL

SD100, backhoe, gray

2шт.

6

321-4481

DECAL

Warning, keep clear of this area, swinging boom can crush

4шт.

7

H218867

DECAL

backhoe control pattern, used on backhoes with four lever controls, brown with white letters

1шт.

8

H434695

DECAL

backhoe control pattern, used on backhoes with dual lever controls, brown with white letters

1шт.

8

179078A1

DECAL

backhoe control pattern, used on backhoes with dual lever controls, black with white letters

1шт.

9

321-2760

DECAL

Attention, retract and raise backfill blade

1шт.

10

H249912

DECAL

plow shaker, start/stop

1шт.

11

321-4651

DECAL

attachment, lower/raise

1шт.

12

H208280

DECAL

transport plow in lowered position

1шт.

13

321-6715

DECAL

Warning, rotating machine parts

2шт.

14

321-5663

DECAL

hydra-borer control pattern

1шт.

15

H427880

DECAL

hydra-borer, brown

1шт.

15

179248A1

DECAL

hydra-borer, gray

1шт.

16

H434370

DECAL

Important, PTO ports, brown with white letters

1шт.

16

179082A1

DECAL

Important, PTO ports, black with white letters

1шт.

17

H434540

DECAL

Important, hidden grease fitting, brown with white letters

2шт.

17

179083A1

DECAL

Important, hidden grease fitting, black with white letters

2шт.

18

H433858

DECAL

ground drive control, brown with white letters

1шт.

18

179001A1

DECAL

ground drive control, black with white letters

1шт.

19

H427906

DECAL

P60, brown

1шт.

19

193429A1

DECAL

P60, gray

1шт.

20

H434209

ADHESIVE STRIP

anti-skid, 76 x 580 mm

2шт.

21

H431221

ADHESIVE STRIP

anti-skid, 76 x 152 mm

2шт.

22

321-4739

EMBLEM

Case, on grille, if used

1шт.

22a

186989A1

EMBLEM

Case, on grille, if used

1шт.

23

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Push-on type, attaches emblem to grille

2шт.

24

321-4614

TAG

TAG - do not operate

1шт.
