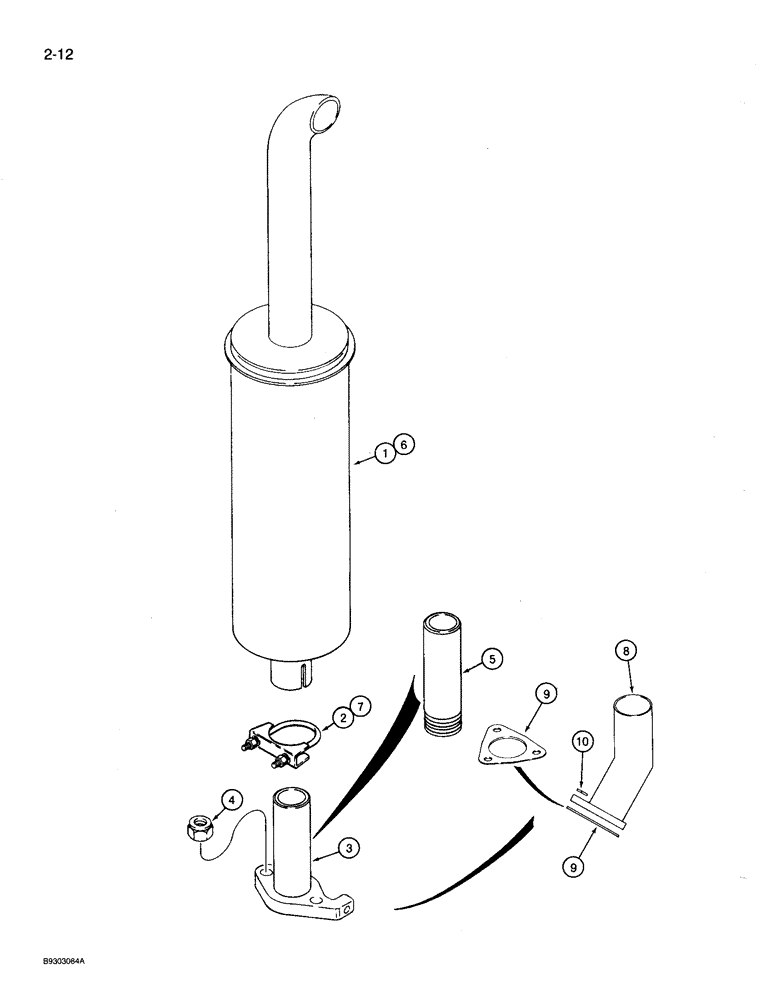

Запчасти Case 360 (2-12) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

H436399

MUFFLER

exhaust, Deutz diesel or Wisconsin gasoline engine (replaces H433337), no longer available, order H437896 muffler

1шт.

2

H262550

CLAMP

muffler, two-piece, includes hardware, Deutz diesel or Wisconsin gasoline engine, used with H436399 muffler

1шт.

3

H672158

FLANGE

exhaust, used on models with Deutz diesel engine, prior to P.I.N. JAF0104257

1шт.

4

831-2110

NUT,M10 x 1.5, Cl 8

hex, self locking, 10 mm - 1.5, plated, used with H672158 adapter

2шт.

5

H66266

PIPE

exhaust, used on models with Wisconsin gasoline engine

1шт.

6

H437896

MUFFLER

exhaust, Deutz diesel or Wisconsin gasoline engine

1шт.

7

D61412

CLAMP

muffler, two-piece, includes hardware, Deutz diesel or Wisconsin gasoline engine, included with H437896 muffler

1шт.

8

121391A1

ADAPTER

exhaust, used on models with Deutz diesel engine, P.I.N. JAF0104257 and after

1шт.

Nuts are included on engine, P.I.N. JAF0104257 and after.

1шт.

9

121732A1

GASKET

adapter, P.I.N. JAF0104257 and after

1шт.

10

892-11008

LOCK WASHER,8mm ID

P.I.N. JAF0104257 and after

3шт.
