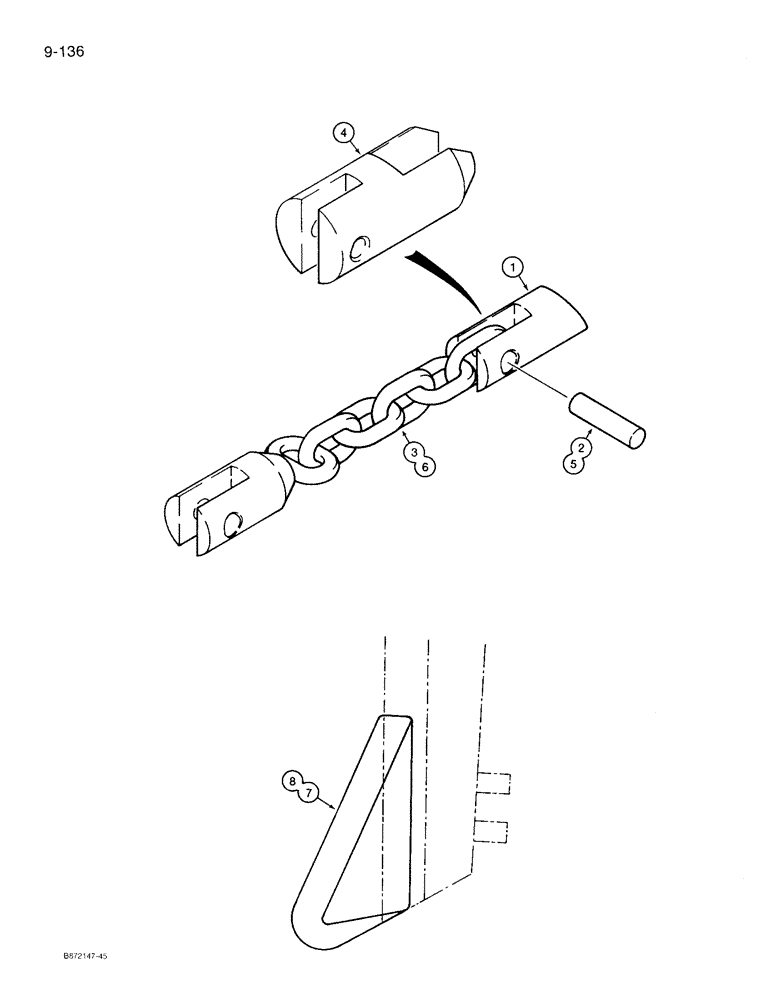

Запчасти Case 360 (9-136) - PLOW BLADE BULLETS AND MANDRELS, TOE KITS (09) - CHASSIS/ATTACHMENTS

H648881

CHAIN (CE)

KIT - bullet and mandrel, 1 inch (25 mm) bullet, includes instruction sheet, Incl. Ref. 1 - 3

1шт.

1

H249862

CLEVIS

BULLET - plow blade, Serial Range: weld-blade

1шт.

2

H249979

RIVET

3/8 x 1-3/16 inch, Serial Range: mandrel-bullet

1шт.

3

H584391

SLEEVE CYLINDER

MANDREL - cable pull

1шт.

H648899

KIT

bullet and mandrel, 1-1/2 inch (38 mm) bullet, includes instruction sheet, Incl. Ref. 4 - 6

1шт.

4

H219386

SPECIAL PIN

BULLET - plow blade, Serial Range: weld-blade

1шт.

5

H133314

RIVET

3/8 x 11/16 inch, Serial Range: mandrel-bullet

1шт.

6

H538157

ADAPTER

MANDREL - cable pull

1шт.

7

H641373

KIT

toe, used on 1-1/2 inch wide advanced angle plow blade, welds to blade, Incl. toe and instructions, if used

1шт.

8

H647792

KIT

toe, used on 2 inch wide advanced angle plow blade, welds to blade, Incl. toe and instructions, if used

1шт.
