(9-130) - ADV. ANGLE ("A" TYPE) PLOW BLADES & 10:1 CHUTES - SWIVEL HINGE, 24 & 30 IN. COVER, 2 IN. WIDE BLADE

Запчасти Case 360 (9-130) - ADV. ANGLE ("A" TYPE) PLOW BLADES & 10:1 CHUTES - SWIVEL HINGE, 24 & 30 IN. COVER, 2 IN. WIDE BLADE (09) - CHASSIS/ATTACHMENTS

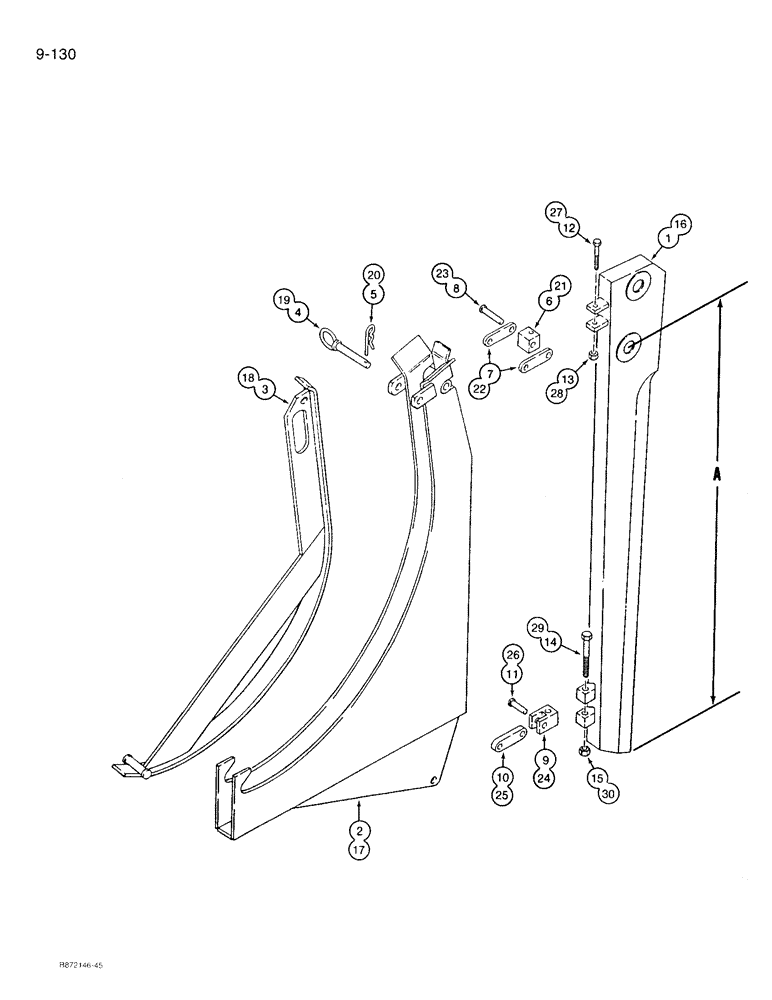

Схема запчастей Case 360 - (9-130) - ADV. ANGLE ("A" TYPE) PLOW BLADES & 10:1 CHUTES - SWIVEL HINGE, 24 & 30 IN. COVER, 2 IN. WIDE BLADE (09) - CHASSIS/ATTACHMENTS
23
29
28
24
20
8
13
19
12
9
10
15
6
14
3
21
26
7
2
18
22
30
1
16
11
5
25
27
4
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H936435

BLADE AND CHUTE ASSEMBLY - plow, 2 inch wide blade and 24 inch cover depth x 1-5/8 inch chute clearance, machinery item, order from Machinery Price List, Includes: Ref. 1 - 15

1шт.

1

H638940

BLADE

plow, advanced angle, 24 inch cover depth, dimension "A" is 35 inches

1шт.

2

H639039

CHUTE (DOWNWARD)

cable, 1-5/8 inch clearance

1шт.

3

H639021

BEARING, CONE

chute

1шт.

4

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

5

H32292

PIN

hair, gate pin

1шт.

6

H142349

BLOCK

HINGE - chute, upper

1шт.

7

H133157

DRAG LINK

chute to blade hinge, upper

2шт.

8

H142752

RIVET

flat head, 1/2" x 2-5/8", hardened

2шт.

9

H133736

JOINT TURNING

HINGE - chute, lower

1шт.

10

H133165

DRAG LINK

chut to blade hinge, lower

1шт.

11

H133785

RIVET

flat head, 1/2 x 1-1/2 inch, hardened

2шт.

12

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

13

230-4116

LOCK NUT,3/8"-16, GA

hex, self-locking, 3/8 inch NC

1шт.

14

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch

1шт.

15

131-1308

JAM NUT,Jam, 1/2"-13

1шт.

H936450

BLADE AND CHUTE ASSEMBLY - 2 inch wide blade x 30 inch cover depth x 1-5/8 inch chute clearance, machinery item, order from Machinery Price List, Includes: Ref. 16 - 30

1шт.

16

H638957

HALF BLADE

plow, advanced angle, 30 inch cover depth, dimension "A" is 41 inches

1шт.

17

H639054

CHUTE (DOWNWARD)

cable

1шт.

18

H639047

CHUTE ASSY.

GATE - chute

1шт.

19

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

20

H32292

PIN

hair, gate pin

1шт.

21

H142349

BLOCK

HINGE - chute, upper

1шт.

22

H133157

DRAG LINK

chute to blade hinge, upper

2шт.

23

H142752

RIVET

flat head, 1/2 x 2-5/8 inch, hardened

2шт.

24

H133736

JOINT TURNING

HINGE - chute, lower

1шт.

25

H133165

DRAG LINK

chute to blade hinge, lower

1шт.

26

H133785

RIVET

flat head, 1/2 x 1-1/2 inch, hardened

2шт.

27

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

28

230-4116

LOCK NUT,3/8"-16, GA

hex, self-locking, 3/8 inch NC

1шт.

29

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch

1шт.

30

131-1308

JAM NUT,Jam, 1/2"-13

1шт.
