(9-128) - ADV. ANGLE ("A" TYPE) PLOW BLADES AND 10:1 CHUTES - SWIVEL HINGE, 30 IN. COVER, 1-1/2 IN. WIDE BLADE

Запчасти Case 360 (9-128) - ADV. ANGLE ("A" TYPE) PLOW BLADES AND 10:1 CHUTES - SWIVEL HINGE, 30 IN. COVER, 1-1/2 IN. WIDE BLADE (09) - CHASSIS/ATTACHMENTS

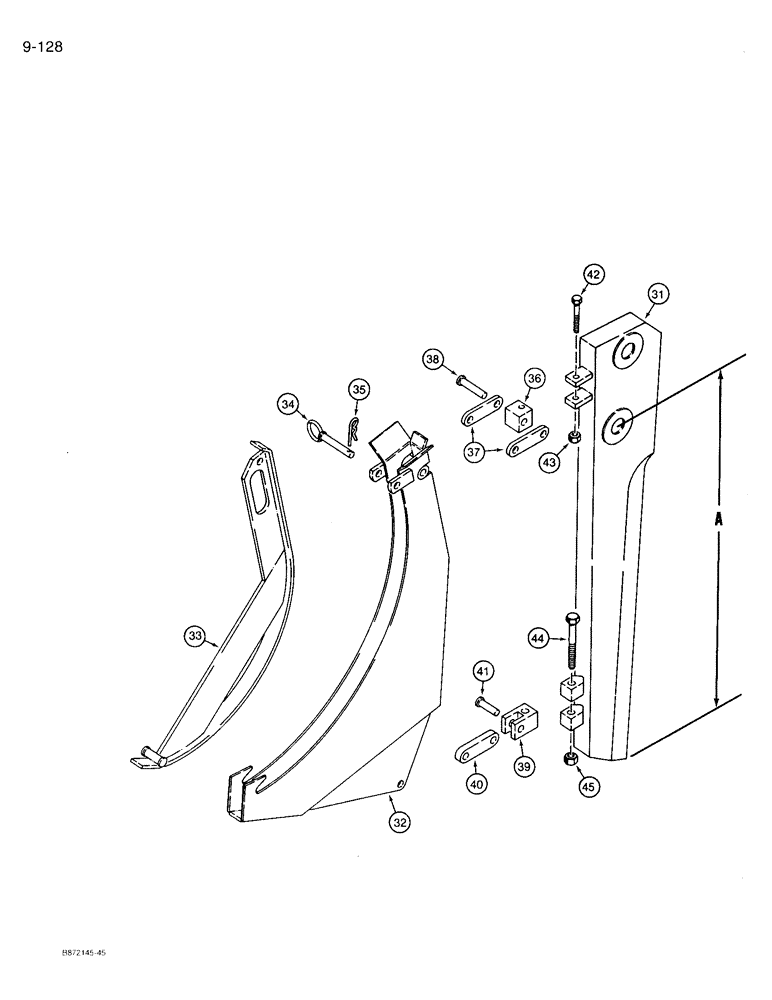

Схема запчастей Case 360 - (9-128) - ADV. ANGLE ("A" TYPE) PLOW BLADES AND 10:1 CHUTES - SWIVEL HINGE, 30 IN. COVER, 1-1/2 IN. WIDE BLADE (09) - CHASSIS/ATTACHMENTS
31
41
45
37
35
44
43
42
38
34
40
32
39
33
36
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H936443

BLADE AND CHUTE ASSEMBLY - plow, 1-1/2 inch wide blade and 30 inch cover depth x 1-1/8 inch chute clearance, machinery item, order from Machinery Price List, Includes: Ref. 31 - 45

1шт.

31

H638932

SCRAPER

plow, advanced angle, 30 inch cover depth, dimension "A" is 41 inches

1шт.

32

H639013

CHUTE ASSY.

cable, 1-1/8 inch clearance

1шт.

33

H639005

CHUTE ASSY.

chute

1шт.

34

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

35

H32292

PIN

hair, gate pin

1шт.

36

H133751

BLOCK

chute, upper

1шт.

37

H133157

DRAG LINK

chute to blade hinge, upper

2шт.

38

H133801

RIVET

flat head, 1/2 x 2-1/8 inch, hardened

2шт.

39

H133736

JOINT TURNING

chute, lower

1шт.

40

H133165

DRAG LINK

chute to blade hinge, lower

1шт.

41

H133785

RIVET

flat head, 1/2 x 1-1/2 inch, hardened

2шт.

42

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

43

230-4116

LOCK NUT,3/8"-16, GA

hex, self-locking, 3/8 inch NC

1шт.

44

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch

1шт.

45

131-1308

JAM NUT,Jam, 1/2"-13

1шт.
