Запчасти Case 360 (9-120) - ADVANCED ANGLE ("D" TYPE) PLOW BLADE AND 10:1 CHUTE - SWIVEL HINGE, 18 IN. COVER, 1 IN. WIDE BLADE (09) - CHASSIS/ATTACHMENTS

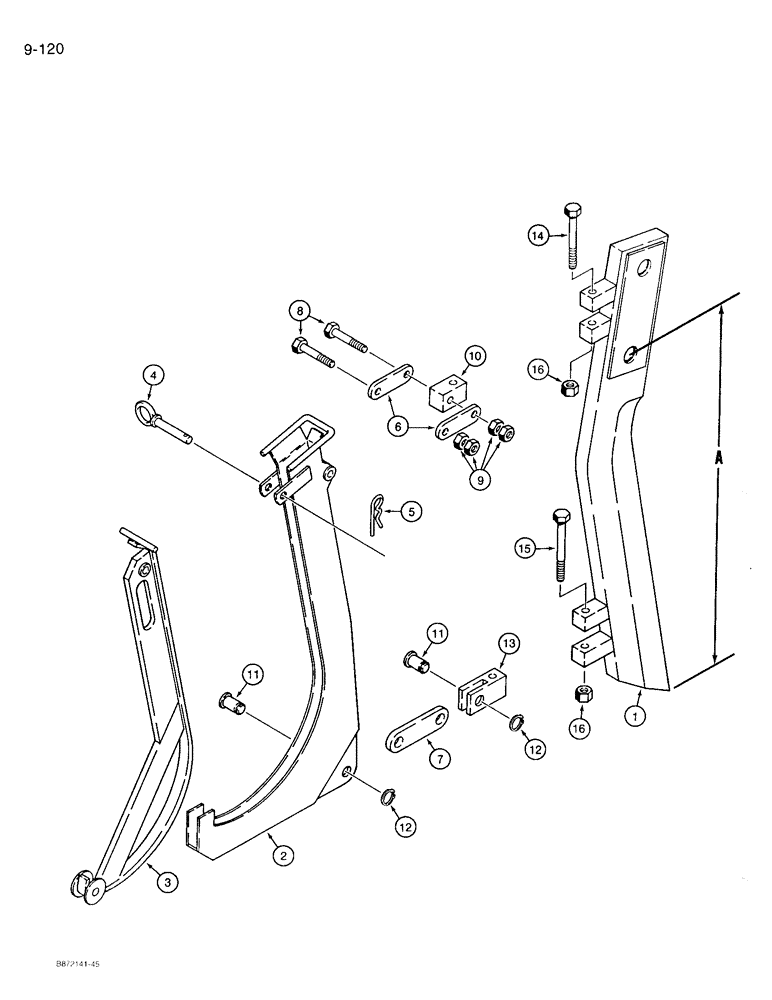

Схема запчастей Case 360 - (9-120) - ADVANCED ANGLE ("D" TYPE) PLOW BLADE AND 10:1 CHUTE - SWIVEL HINGE, 18 IN. COVER, 1 IN. WIDE BLADE (09) - CHASSIS/ATTACHMENTS
13
12
9
11
11
14
2
12
4
10
6
16
3
1
16
7
15
5
8

Артикул

Название

Примечание

Количество

H938878

BLADE AND CHUTE ASSEMBLY - plow, 1 inch wide blade and 18 inch cover depth x 3/4 inch chute clearance, machinery item, order from Machinery Price List, Includes: Ref. 1 - 16

1шт.

1

H670406

CHUTE ASSY.

BLADE - plow, 18 inch cover depth, dimension "A" is 30 inches

1шт.

2

H670414

CHUTE ASSY.

cable, low drag, 3/4 inch clearance

1шт.

3

H669523

DOOR

chute

1шт.

4

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

5

H32292

PIN

hair, gate pin

1шт.

6

H429514

LINK

chute to blade hinge, upper

2шт.

7

H429506

LINK

chute to blade hinge, lower

1шт.

8

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

2шт.

9

131-1308

JAM NUT,Jam, 1/2"-13

4шт.

10

H429670

PIVOT

chute, upper

1шт.

11

H433152

PIN

lower link to chute and hinge

2шт.

12

A33531

SNAP RING,#75, Ext

pin #75, Ext

2шт.

13

H429530

PIVOT

chute, lower

1шт.

14

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch

1шт.

15

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch

1шт.

16

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

2шт.

Выбрано товаров: 17
