(2-10) - AIR CLEANER, WISCONSIN GASOLINE ENGINE MODELS

Запчасти Case 360 (2-10) - AIR CLEANER, WISCONSIN GASOLINE ENGINE MODELS (02) - ENGINE

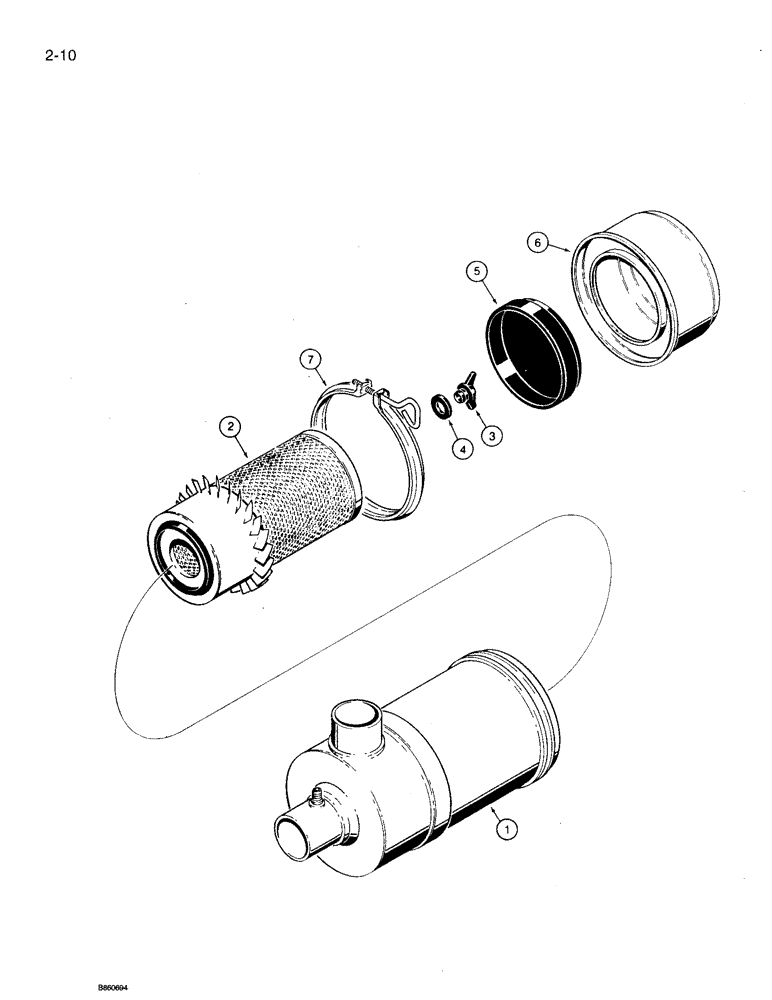

Схема запчастей Case 360 - (2-10) - AIR CLEANER, WISCONSIN GASOLINE ENGINE MODELS (02) - ENGINE
1
3
4
7
2
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D55203

CLEANER ASSY.

air, engine, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

2

D48198

AIR CLEANER

air cleaner

1шт.

D78354

WING NUT

wing, element, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - wing, element

1шт.

4

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

nut

1шт.

5

D48200

BAFFLE

rubber

1шт.

6

D48201

CUP

dust, access, air cleaner

1шт.

7

D48199

CLAMP

cup, Incl. hardware

1шт.
