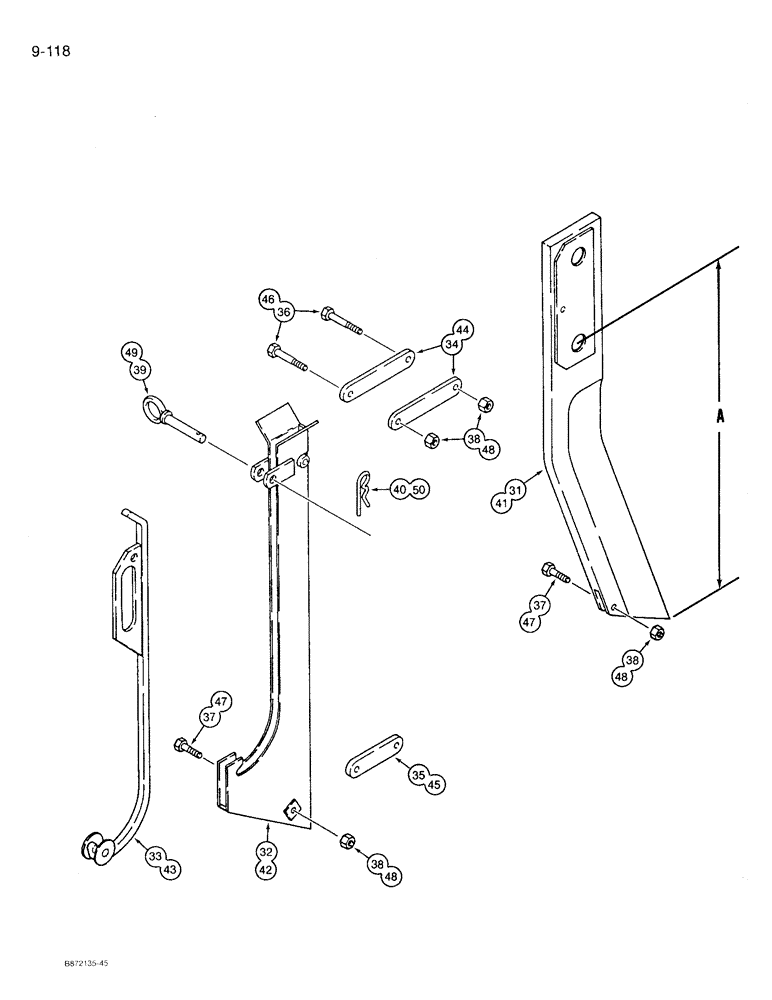

Запчасти Case 360 (9-118) - ADVANCED ANGLE ("D" TYPE) PLOW BLADES AND 4:1 CHUTES - 18 AND 24 INCH COVER DEPTH, 1 INCH WIDE BLADE (09) - CHASSIS/ATTACHMENTS

H936369

BLADE AND CHUTE ASSEMBLY - plow, 1 inch wide blade and 18 inch cover depth x 5/8 inch chute clearance, machinery item, order from Machinery Price List, Includes: Ref. 31- 40

1шт.

31

H639575

BLADE

plow, 18 inch cover depth, dimension "A" is 30 inches

1шт.

H648774

BAR

CHUTE ASSEMBLY - cable, 5/8 inch clearance, with attaching parts, Incl. Ref. 32 - 40

1шт.

32

H647362

BAR

CHUTE - cable

1шт.

33

H647370

DOOR

chute

1шт.

34

H387571

DRAG LINK

chute to blade, upper

2шт.

35

H127258

DRAG LINK

chute to blade, lower

1шт.

36

H127340

BOLT

hex head, 3/8" - 24 NF x 2-1/4", grade 8, special

2шт.

37

H127357

BOLT

hex head, 3/8" - 24 NF x 1-5/16", grade 8, special

2шт.

38

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, 3/8" - 24 NF, plated

4шт.

39

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

40

H32292

PIN

hair, gate pin

1шт.

H936377

BLADE AND CHUTE ASSEMBLY - plow, 1 inch wide blade and 24 inch cover depth x 5/8 inch chute clearance, machinery item, order from Machinery Price List, Includes: Ref. 41 - 50

1шт.

41

H639583

BLADE

plow, 24 inch cover depth, dimension "A" is 36 inches

1шт.

H648790

CHAIN (AG)

CHUTE ASSEMBLY - cable, 5/8 inch clearance, with attaching parts, Includes: Ref. 42 - 50

1шт.

42

H647388

CHUTE ASSY.

CHUTE - cable

1шт.

43

H647396

DOOR SEAL

GATE - chute

1шт.

44

H387589

DRAG LINK

chute to blade, upper

2шт.

45

H127258

DRAG LINK

chute to blade, lower

1шт.

46

H127340

BOLT

hex head, 3/8" - 24 NF x 2-1/4", grade 8, special

2шт.

47

H127357

BOLT

hex head, 3/8" - 24 NF x 1-5/16", grade 8, special

2шт.

48

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, 3/8" - 24 NF, plated

4шт.

49

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

50

H32292

PIN

hair, gate pin

1шт.
