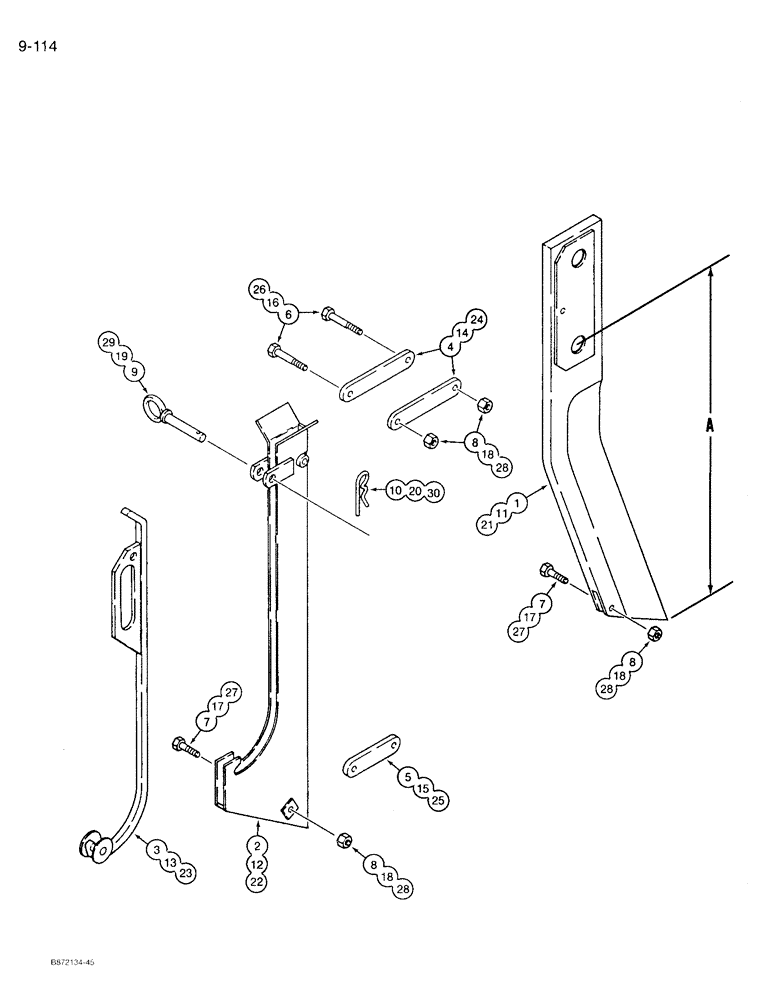

Запчасти Case 360 (9-114) - ADVANCED ANGLE ("D" TYPE) PLOW BLADES AND 4:1 CHUTES - 12 AND 18 INCH COVER DEPTH (09) - CHASSIS/ATTACHMENTS

H936336

BLADE AND CHUTE ASSEMBLY - plow, 3/4 inch wide blade and 12 inch cover depth x 3/8 inch chute clearance, machinery item, order from Machinery Price List, Includes: Ref. 1 - 10

1шт.

1

H639542

HALF BLADE

plow, 12 inch cover depth, dimension "A" is 24 inches 3/4

1шт.

H648717

CHAIN (CE)

CHUTE ASSEMBLY - cable, 3/8 inch clearance, with attaching parts 3/4 WIDE BLADE, Includes: Ref. 2 - 10

1шт.

2

H647305

GUIDE

CHUTE - cable 3/4 INCH WIDE BLADE

1шт.

3

H647313

CHUTE ASSY.

GATE - chute 3/4 INCH WIDE BLADE

1шт.

4

H387563

LINK

chute to blade, upper 3/4 INCH WIDE

2шт.

5

H127258

DRAG LINK

chute to blade, lower 3/4 INCH WIDE

1шт.

6

H127340

BOLT

hex, 3/8 NF x 2-1/4 inch, grade 8, special 3/4 WIDE BLADE

2шт.

7

328-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

hex, 3/8 NF x 1-1/4 inch, grade 8 3/4 WIDE BLADE

2шт.

8

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, 3/8 inch NF 3/4 WIDE BLADE

4шт.

9

H537787

AXLE PIN

gate to chute 3/4 INCH WIDE BLADE

1шт.

10

H32292

PIN

hair, gate pin 3/4 INCH WIDE BLADE

1шт.

H936351

BLADE AND CHUTE ASSEMBLY - plow, 3/4 inch wide blade and 18 inch cover depth x 3/8 inch chute clearance, machinery item, order from Machinery Price List, Includes: Ref. 11 - 20

1шт.

11

H639559

HALF BLADE

plow, 18 inch cover depth, dimension "A" is 30 inches 3/4 WIDE

1шт.

H648733

CHAIN (CE)

CHUTE ASSEMBLY - cable, 3/8 inch clearance, with attaching parts 3/4 WIDE BLADE, Includes: Ref. 12 - 20

1шт.

12

H647321

CHUTE (DOWNWARD)

CHUTE - cable 3/4 INCH WIDE BLADE

1шт.

13

H647339

CHUTE ASSY.

GATE - chute 3/4 INCH WIDE BLADE

1шт.

14

H387571

DRAG LINK

chute to blade, upper 3/4 INCH WIDE

2шт.

15

H127258

DRAG LINK

chute to blade, lower

1шт.

16

H127340

BOLT

hex, 3/8 NF x 2-1/4 inch, grade 8, special 3/4 WIDE BLADE

2шт.

17

328-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

hex, 3/8 NF x 1-1/4 inch, grade 8 3/4 WIDE BLADE

2шт.

18

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, 3/8 inch NF 3/4 WIDE BLADE

4шт.

19

H537787

AXLE PIN

gate to chute 3/4 INCH WIDE BLADE

1шт.

20

H32292

PIN

hair, gate pin 3/4 INCH WIDE BLADE

1шт.

H936344

BLADE AND CHUTE ASSEMBLY - plow, 1 inch wide blade and 12 inch cover depth x 5/8 inch chute clearance, machinery item, order from Machinery Price List, Includes: Ref. 21 - 30

1шт.

21

H639567

BLADE

plow, 12 inch cover depth, dimension "A" is 24 inches 1 WIDE

1шт.

H648758

ATTACHMENT

CHUTE ASSEMBLY - cable, 5/8 inch clearance, with attaching parts 1 WIDE BLADE

1шт.

22

H647347

CHUTE (DOWNWARD)

CHUTE - cable 1 INCH WIDE BLADE

1шт.

23

H647354

CHUTE ASSY.

GATE - chute 1 INCH WIDE BLADE

1шт.

24

H387563

LINK

chute to blade, upper 1 INCH WIDE

2шт.

25

H127258

DRAG LINK

chute to blade, lower 1 INCH WIDE

1шт.

26

H127340

BOLT

hex head, 3/8" - 24 NF x 2-1/4", grade 8, special 1 INCH WIDE BLADE

2шт.

27

H127357

BOLT

hex head, 3/8" - 24 NF x 1-5/16", grade 8, special 1 INCH WIDE BLADE

2шт.

28

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, 3/8" - 24 NF, plated 1 INCH WIDE BLADE

4шт.

29

H537787

AXLE PIN

gate to chute 1 INCH WIDE BLADE

1шт.

30

H32292

PIN

hair, gate pin 1 INCH WIDE BLADE

1шт.
