(9-112) - STRAIGHT PLOW BLADES AND 10:1 CHUTES - SWIVEL HINGE, 18 INCH COVER DEPTH

Запчасти Case 360 (9-112) - STRAIGHT PLOW BLADES AND 10:1 CHUTES - SWIVEL HINGE, 18 INCH COVER DEPTH (09) - CHASSIS/ATTACHMENTS

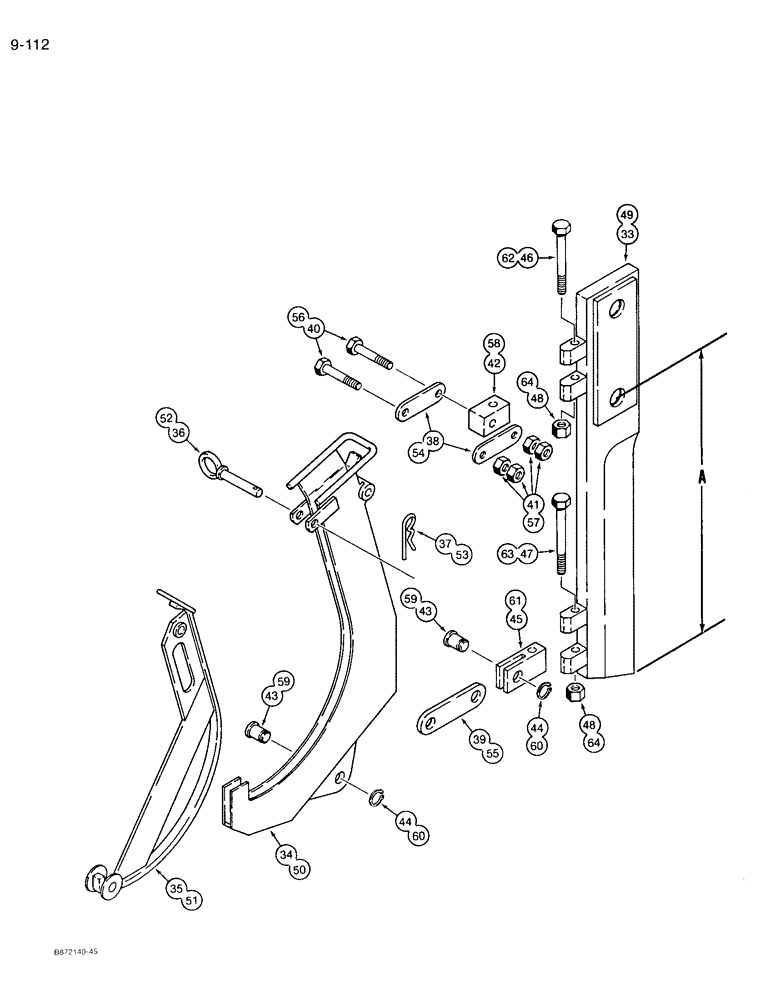

Схема запчастей Case 360 - (9-112) - STRAIGHT PLOW BLADES AND 10:1 CHUTES - SWIVEL HINGE, 18 INCH COVER DEPTH (09) - CHASSIS/ATTACHMENTS
62
58
46
39
60
38
54
37
44
44
36
45
55
43
64
40
64
59
57
60
59
48
56
34
43
41
33
52
42
47
35
63
51
50
49
53
48
61
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H938860

BLADE AND CHUTE ASSEMBLY - plow, 3/4 inch wide blade and 18 inch cover depth x 1/2 inch chute clearance, machinery item, order from Machinery Price List, Includes: Ref. 33 - 48

1шт.

33

H670331

BLADE

plow, 18 inch cover depth, dimension "A" is 26 inches 3/4

1шт.

34

H670364

CHUTE ASSY.

cable, 1/2 inch clearance 3/4 WIDE BLADE

1шт.

35

H670356

DOOR

chute 3/4 INCH WIDE BLADE

1шт.

36

H537787

AXLE PIN

gate to chute 3/4 INCH WIDE BLADE

1шт.

37

H32292

PIN

3/4 INCH WIDE BLADE

1шт.

38

H429514

LINK

chute to blade hinge, upper 3/4 INCH WIDE

2шт.

39

H420927

LINK

chute to blade hinge, lower 3/4 INCH WIDE

1шт.

40

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch 3/4 WIDE BLADE

2шт.

41

131-1308

JAM NUT,Jam, 1/2"-13

3/4 Wide blade

4шт.

42

H429670

PIVOT

chute, upper 3/4 INCH WIDE BLADE

1шт.

43

H433755

PIN

lower link to chute and hinge 3/4 INCH WIDE BLADE

2шт.

44

A33531

SNAP RING,#75, Ext

pin, 3/4" wide blade #75, Ext

2шт.

45

H420901

PIVOT

chute, lower 3/4 INCH WIDE BLADE

1шт.

46

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch 3/4 WIDE BLADE

1шт.

47

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch 3/4 WIDE BLADE

1шт.

48

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC 3/4 WIDE BLADE

2шт.

H938845

BLADE AND CHUTE ASSEMBLY - plow, 1 inch wide blade and 18 inch cover depth x 3/4 inch chute clearance, machinery item, order from Machinery Price List, Includes: Ref. 49 - 64

1шт.

49

H670505

BLADE

plow, 18 inch cover depth, dimension "A" is 26 inches 1 WIDE

1шт.

50

H670513

CHUTE ASSY.

cable, 3/4 inch clearance 1 INCH WIDE BLADE

1шт.

51

H669523

DOOR

chute 1 INCH WIDE BLADE

1шт.

52

H537787

AXLE PIN

gate to chute 1 INCH WIDE BLADE

1шт.

53

H32292

PIN

hair, gate pin 1 INCH WIDE BLADE

1шт.

54

H429514

LINK

chute to blade hinge, upper 1 INCH WIDE

2шт.

55

H429506

LINK

chute to blade hinge, lower 1 INCH WIDE

1шт.

56

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch 1 WIDE BLADE

2шт.

57

131-1308

JAM NUT,Jam, 1/2"-13

1 Wide blade

4шт.

58

H429670

PIVOT

chute, upper 1 INCH WIDE BLADE

1шт.

59

H433152

PIN

lower link to chute and hinge 1 INCH WIDE BLADE

2шт.

60

A33531

SNAP RING,#75, Ext

pin 1" wide blade #75, Ext

2шт.

61

H429530

PIVOT

chute, lower 1 INCH WIDE BLADE

1шт.

62

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch 1 WIDE BLADE

1шт.

63

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch 1 WIDE BLADE

1шт.

64

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC 1 WIDE BLADE

2шт.
