(9-110) - STRAIGHT PLOW BLADES AND 10:1 CHUTES - SWIVEL HINGE, 12 INCH COVER DEPTH

Запчасти Case 360 (9-110) - STRAIGHT PLOW BLADES AND 10:1 CHUTES - SWIVEL HINGE, 12 INCH COVER DEPTH (09) - CHASSIS/ATTACHMENTS

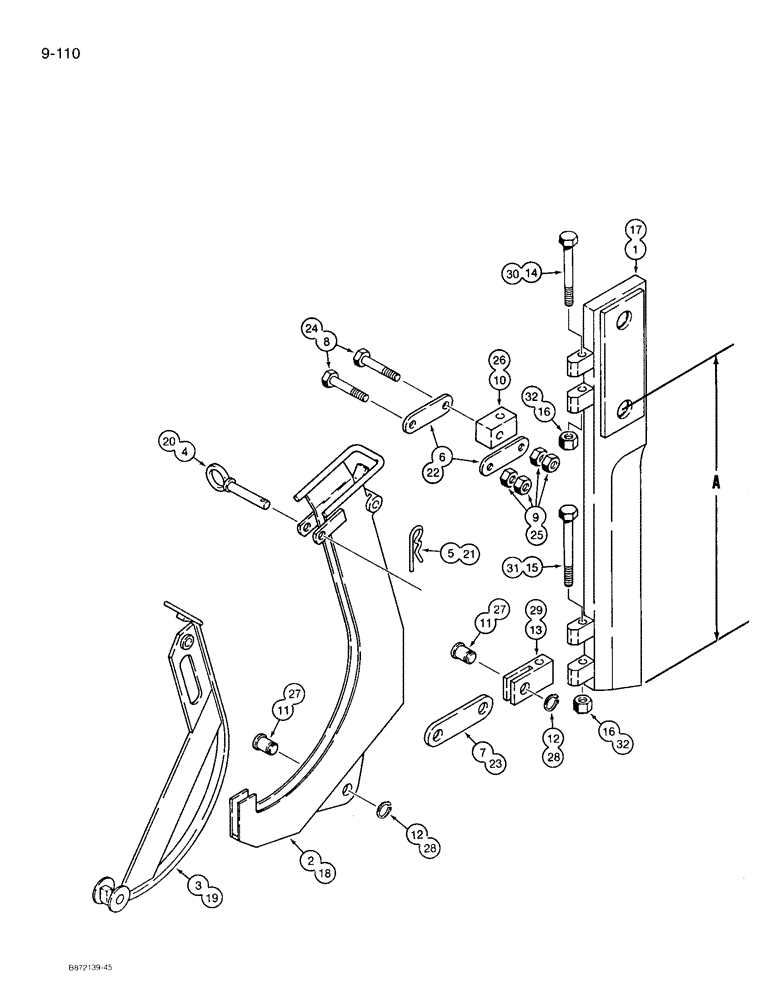

Схема запчастей Case 360 - (9-110) - STRAIGHT PLOW BLADES AND 10:1 CHUTES - SWIVEL HINGE, 12 INCH COVER DEPTH (09) - CHASSIS/ATTACHMENTS
13
17
27
20
9
15
23
12
25
12
27
21
28
30
19
29
32
28
16
18
22
8
1
6
26
31
11
14
3
7
2
32
16
11
5
10
4
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H938837

BLADE AND CHUTE ASSEMBLY - plow, 3/4 inch wide blade and 12 inch cover depth x 1/2 inch chute clearance, machinery item, order from Machinery Price List, Includes: REf. 1 - 16

1шт.

1

H670323

BLADE

plow, 12 inch cover depth, dimension "A" is 20 inches 3/4

1шт.

2

H664995

CHUTE ASSY.

cable, 1/2 inch clearance 3/4 WIDE BLADE

1шт.

3

H670299

DOOR

GATE - chute 3/4 INCH WIDE BLADE

1шт.

4

H537787

AXLE PIN

gate to chute 3/4 INCH WIDE BLADE

1шт.

5

H32292

PIN

hair, gate pin 3/4 INCH WIDE BLADE

1шт.

6

H429514

LINK

chute to blade hinge, upper 3/4 INCH WIDE

2шт.

7

H420927

LINK

chute to blade hinge, lower 3/4 INCH WIDE

1шт.

8

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch 3/4 WIDE BLADE

2шт.

9

131-1308

JAM NUT,Jam, 1/2"-13

3/4 Wide blade

4шт.

10

H429670

PIVOT

chute, upper 3/4 INCH WIDE BLADE

1шт.

11

H433755

PIN

lower link to chute and hinge 3/4 INCH WIDE BLADE

2шт.

12

A33531

SNAP RING,#75, Ext

pin 3/4" wide blade #75, Ext

2шт.

13

H420901

PIVOT

chute, lower 3/4 INCH WIDE BLADE

1шт.

14

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch 3/4 WIDE BLADE

1шт.

15

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch 3/4 WIDE BLADE

1шт.

16

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC 3/4 WIDE BLADE

2шт.

H938852

BLADE AND CHUTE ASSEMBLY - plow, 1 inch wide blade and 12 inch cover depth x 3/4 inch chute clearance, machinery item, order from Machinery Price List, Includes: Ref. 17 - 32

1шт.

17

H670489

BLADE

plow, 12 inch cover depth, dimension "A" is 20 inches 1

1шт.

18

H664987

CHUTE ASSY.

cable, 3/4 inch clearance 1 WIDE BLADE

1шт.

19

H670307

DOOR

chute 1 INCH WIDE BLADE

1шт.

20

H537787

AXLE PIN

gate to chute 1 INCH WIDE BLADE

1шт.

21

H32292

PIN

hair, gate pin 1 INCH WIDE BLADE

1шт.

22

H429514

LINK

chute to blade hinge, upper 1 INCH WIDE

2шт.

23

H429506

LINK

chute to blade hinge, lower 1 INCH WIDE

1шт.

24

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch 1 WIDE BLADE

2шт.

25

131-1308

JAM NUT,Jam, 1/2"-13

1 Wide blade

4шт.

26

H429670

PIVOT

chute, upper 1 INCH WIDE BLADE

1шт.

27

H433152

PIN

lower link to chute and hinge 1 INCH WIDE BLADE

2шт.

28

A33531

SNAP RING,#75, Ext

pin 1" wide blade #75, Ext

2шт.

29

H429530

PIVOT

chute, lower 1 INCH WIDE BLADE

1шт.

30

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch 1 WIDE BLADE

1шт.

31

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch 1 WIDE BLADE

1шт.

32

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC 1 WIDE BLADE

2шт.
