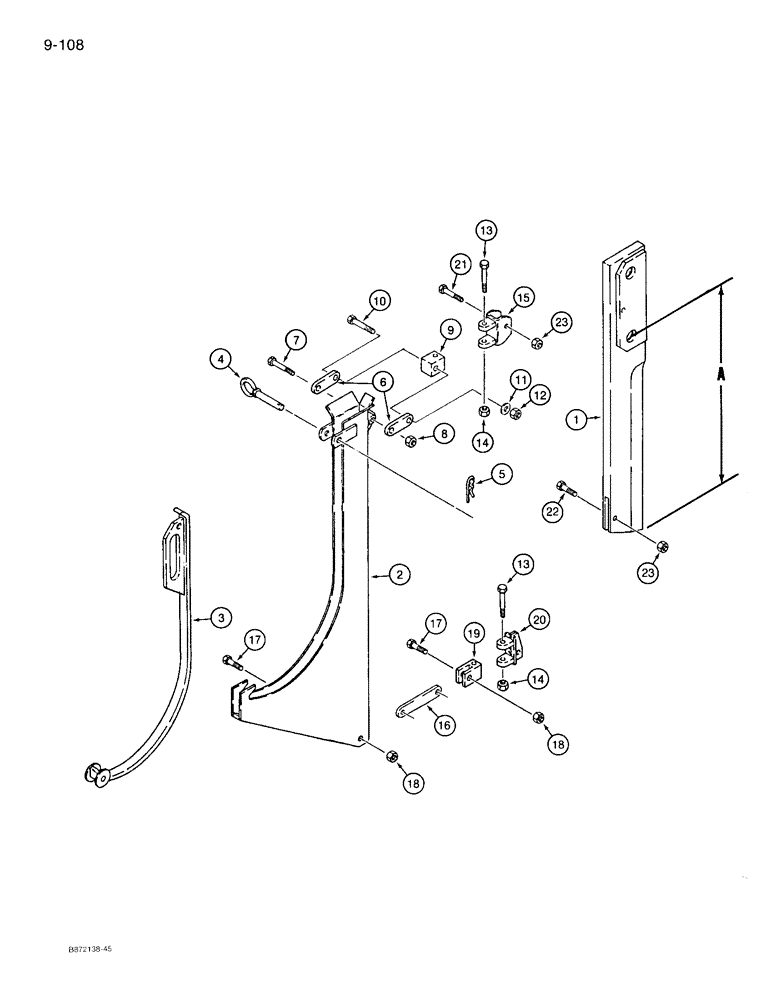

Запчасти Case 360 (9-108) - STRAIGHT PLOW BLADE AND 10:1 CHUTE - SWIVEL HINGE, 12 INCH COVER, 1 WIDE INCH BLADE W/O WELDED LUGS (09) - CHASSIS/ATTACHMENTS

H936385

BLADE AND CHUTE ASSEMBLY - plow, 1 inch wide blade and 12 inch cover depth x 3/4 inch chute clearance, machinery item, order from Machinery Price List, Includes: Ref. 1 - 23

1шт.

1

H639393

BLADE

plow, 12 inch cover, depth, dimension "A" is 20 inches

1шт.

H659003

CHUTE ASSY.

CHUTE AND GATE ASSEMBLY - cable, 3/4 inch clearance, Includes: Ref. 2 - 23

1шт.

2

H658245

CHUTE (DOWNWARD)

cable, 3/4 inch clearance

1шт.

3

H658286

CHUTE (DOWNWARD)

GATE - chute

1шт.

4

H537787

AXLE PIN

, Serial Range: gate-chute

1шт.

5

H32292

PIN

hair, gate pin

1шт.

6

NLS

NO LONGER SERVICED

chute to blade hinge, upper

2шт.

7

H127340

BOLT

hex, 3/8 NF x 2-1/4 inch

1шт.

8

131-1326

JAM NUT,Jam, 3/8"-24

hex, self-locking, 3/8 inch NF

1шт.

9

H133744

BLOCK

HINGE - chute, upper

1шт.

10

H409466

BOLT

hex, 1/2 NF x 2-1/2 inch

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64")

1шт.

12

131-168

LOCK NUT,1/2"-20, GA

hex, self-locking, 1/2 inch NF

1шт.

13

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

14

230-4116

LOCK NUT,3/8"-16, GA

hex lock, 3/8 inch NC

2шт.

15

H535674

BRACKET

blade, hinge mounting, upper

1шт.

16

H409557

LINK

chute to blade hinge, lower

1шт.

17

H409474

BOLT

hex, 1/2 NF x 1-1/2 inch, special

2шт.

18

131-168

LOCK NUT,1/2"-20, GA

NUT - hex, self-locking, 1/2 inch NF

2шт.

19

H150771

BLOCK

chute, lower

1шт.

20

H535666

ADAPTER

blade, hinge mounting, lower

1шт.

21

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

hex, 3/8 NF x 2 inch

1шт.

22

H127357

BOLT

hex, 3/8 NF x 1-5/16 inch, special

1шт.

23

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, 3/8 inch NF

2шт.
