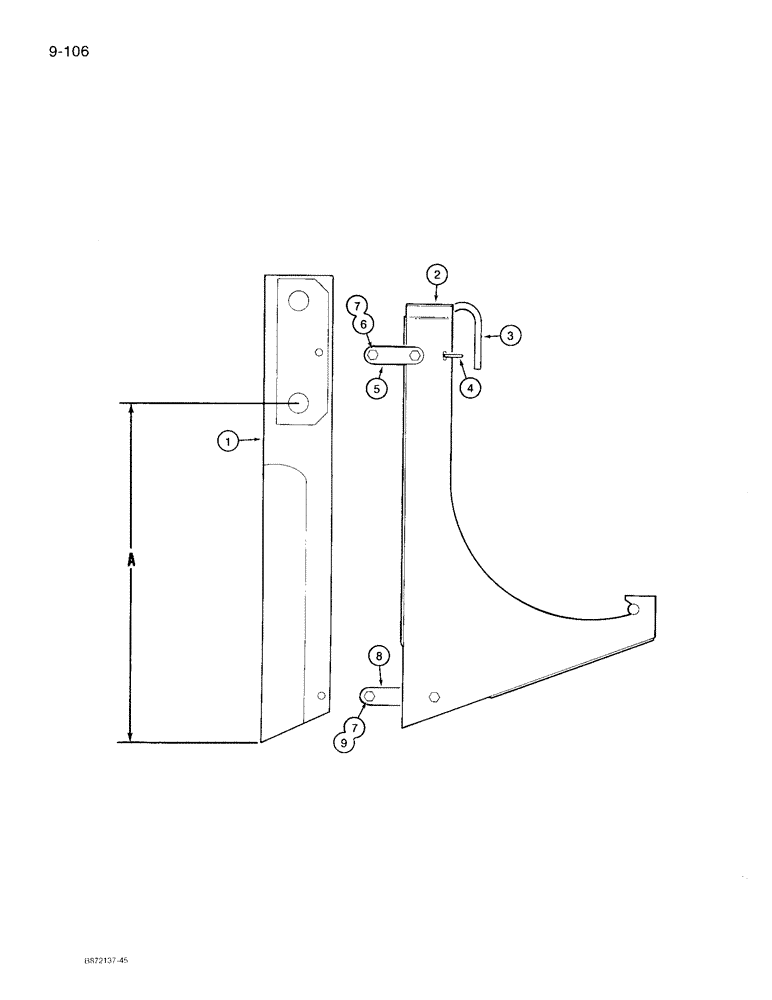

Запчасти Case 360 (9-106) - STRAIGHT PLOW BLADE AND 10:1 CHUTE - 12 INCH COVER DEPTH, 1 INCH WIDE BLADE W/O WELDED LUGS (09) - CHASSIS/ATTACHMENTS

1

H639393

BLADE

plow, 12 inch cover depth, dimension "A" is 20 inches

1шт.

H657510

CHUTE ASSY.

CHUTE AND GATE ASSEMBLY - cable, 3/4 inch clearance, no longer available, order H659003 chute and gate assembly, see Fig. 9-108, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

CHUTE - cable, 3/4 inch clearance

1шт.

3

H656165

CHUTE (DOWNWARD)

GATE - chute, no longer available, order H658286 gate, see Fig. 9-108

1шт.

4

A70250

PIN

, Serial Range: gate-chute

1шт.

5

H116756

DRAG LINK

chute to blade upper

2шт.

6

H127340

BOLT

hex head, 3/8" - 24 NF x 2-1/4", plated

2шт.

7

131-1326

JAM NUT,Jam, 3/8"-24

hex, self-locking, 3/8" - 24 NF, plated

4шт.

8

H127258

DRAG LINK

chute to blade, lower

1шт.

9

H127357

BOLT

hex head, 3/8" - 24 NF x 1-5/16", grade 8, special

2шт.
