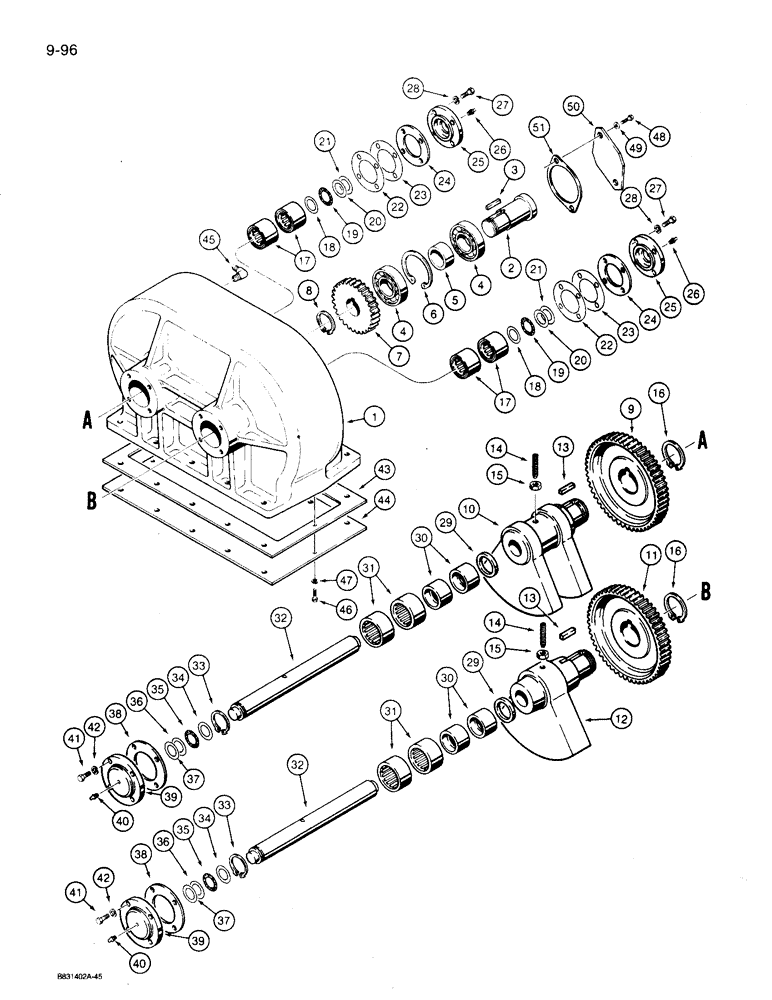

Запчасти Case 360 (9-096) - PLOW GEARBOX (09) - CHASSIS/ATTACHMENTS

H559187

CASE

GEARBOX ASSEMBLY - plow, Case manufactured, Incl. Ref. 1 - 51

1шт.

1

H189464

CASE

HOUSING - gearbox

1шт.

2

H197350

SHAFT

drive, gearbox

1шт.

3

H380030

KEY

square, 1/4" x 1-3/8" long

1шт.

4

H753194

BEARING

drive shaft

2шт.

5

H189795

SPACER

bearing

1шт.

6

NLS

NO LONGER SERVICED

RING SNAP 3.156", Int, #315, brg and shaft

1шт.

7

H189787

GEAR

drive

1шт.

8

R13338

SNAP RING,#150, Ext

gear #150, Ext

1шт.

9

H189753

GEAR

driven, counterweight shaft, left-hand

1шт.

10

H189514

WEIGHT

left-hand

1шт.

11

H189746

GEAR WHEEL

driven, counterweight shaft, right-hand

1шт.

12

H189506

WEIGHT

right-hand

1шт.

13

H380030

KEY

square, 1/4" x 1-3/8" long

2шт.

14

178-289

SET SCREW,Hex Soc, 1/2"-13 x 2"

set, hex socket headless, 1/2" - 13 NC x 2", dog point

2шт.

15

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

16

F40807

SNAP RING,#225, Ext

gear #225, Ext

2шт.

17

H753145

NEEDLE BEARING

counterweight shaft, front

4шт.

18

G46081

BEARING WASHER

thrust, shaft bearing, .032" (0.81 mm) thick

2шт.

19

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Shaft end

2шт.

20

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

thrust, .095" (2.41 mm) thick

1шт.

21

G46081

BEARING WASHER

thrust, .032" (0.81 mm) thick

1шт.

22

H189878

SHIM,.005" Thk

(0.13 mm), If used

1шт.

23

H189886

SHIM,.015" Thk

(0.38 mm), If used

1шт.

24

H189860

GASKET

shaft cover, front

2шт.

25

H189829

CAP

bearing end, front

2шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

27

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

8шт.

29

H189803

SPACER

bearing

2шт.

30

H753160

BEARING CUP

RACE - bearing, inner

4шт.

31

H753152

NEEDLE BEARING

counterweight shaft, rear

4шт.

H559187

CASE

GEARBOX ASSEMBLY - plow, Case manufactured, continued from Fig. 9-96

1шт.

32

H189761

SHAFT

counterweight

2шт.

33

R13338

SNAP RING,#150, Ext

shaft #150, Ext

2шт.

34

G46081

BEARING WASHER

thrust, .032" (0.81 mm) thick

2шт.

35

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Shaft end

2шт.

36

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

thrust, .095" (2.41 mm) thick

1шт.

37

G46081

BEARING WASHER

thrust, .032" (0.81 mm) thick

1шт.

38

H189852

GASKET

shaft end cover, rear

2шт.

39

H189811

BEARING CAP

bearing end, rear

2шт.

40

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

41

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

42

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

8шт.

43

H189910

GASKET

housing bottom

1шт.

44

H202176

LARGE PLATE

PLATE, LARGE cover, housing bottom

1шт.

45

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

Male

1шт.

46

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

47

192-21

LOCK WASHER,3/8"

2шт.

48

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Plate

2шт.

49

195-525

WASHER,3/8", SAE

Plate retaining

2шт.

50

H137844

LARGE PLATE

PLATE, LARGE motor mounting

1шт.

51

A58617

GASKET

plate

1шт.
