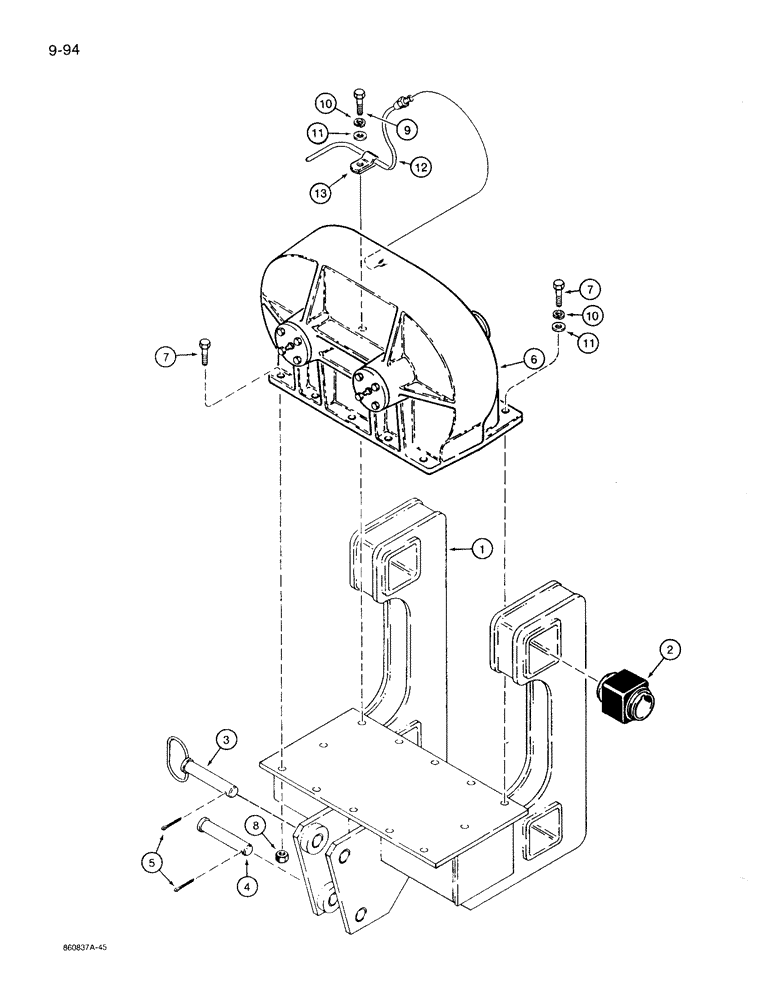

Запчасти Case 360 (9-094) - PLOW REAR FRAME AND GEARBOX MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H663385

FRAME

plow, rear, Incl. Ref. 2 and Bushing H131102

1шт.

2

H235069

SEAL

BUSHING - rubber, rear plow frame

4шт.

H131102

BUSHING

Used at Ref 3, 4 Locations

4шт.

3

H531830

AXLE PIN

clevis, plow blade locking

1шт.

4

H79293

AXLE PIN,28.5mm OD x 128.59mm L

clevis, 1-1/8 x 4-7/8 inch long

1шт.

5

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

6

H559187

CASE

GEARBOX ASSEMBLY - plow, parts list Fig. 9-96

1шт.

7

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

9шт.

8

232-4118

NUT,1/2"-13, GC

8шт.

9

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64")

2шт.

12

H546275

TUBE,0.25" OD x 18" L

breather, plow gearbox

1шт.

13

H151753

CLAMP

breather tube

1шт.
