(2-09A) - AIR CLEANER - 1347840C1, DEUTZ DIESEL ENGINE MODELS, P.I.N. JAF0104257 AND AFTER

Запчасти Case 360 (2-09A) - AIR CLEANER - 1347840C1, DEUTZ DIESEL ENGINE MODELS, P.I.N. JAF0104257 AND AFTER (02) - ENGINE

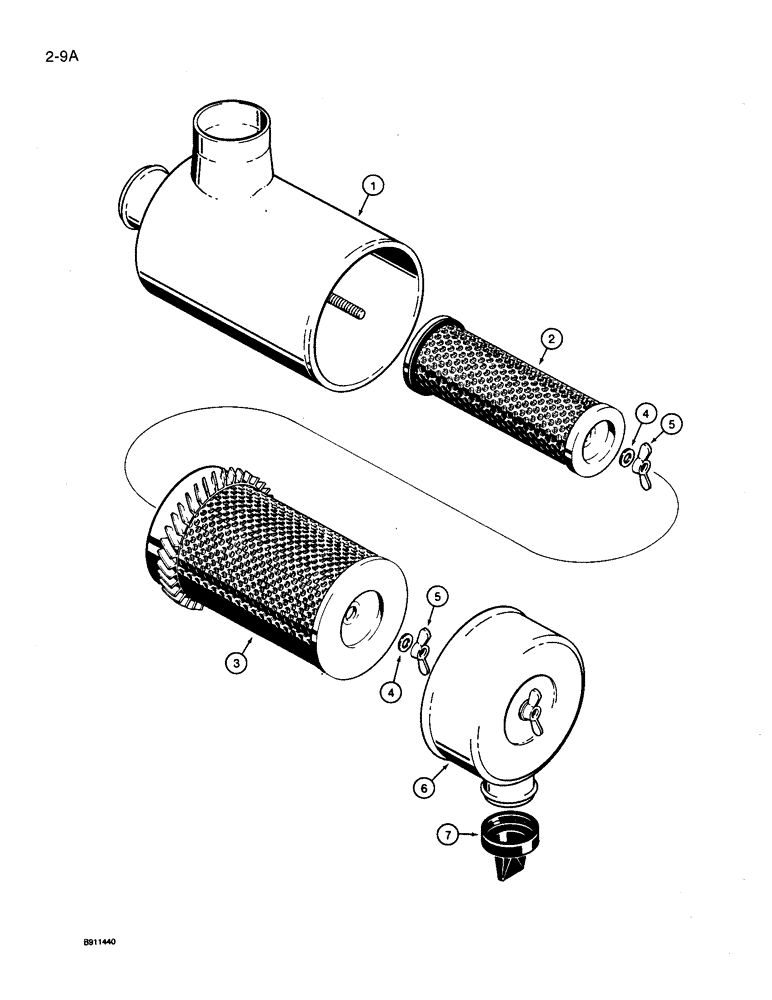

Схема запчастей Case 360 - (2-09A) - AIR CLEANER - 1347840C1, DEUTZ DIESEL ENGINE MODELS, P.I.N. JAF0104257 AND AFTER (02) - ENGINE
5
4
2
7
1
5
3
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1347840C1

AIR CLEANER

air, engine, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

2

3115569R2

AIR FILTER

secondary

1шт.

3

3125199R2

AIR FILTER

primary

1шт.

4

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

element

2шт.

5

1547926C1

THUMB SCREW

wing, element and cover

2шт.

6

A184708

COVER

end

1шт.

7

A189052

DUST VALVE

dust, rubber

1шт.
