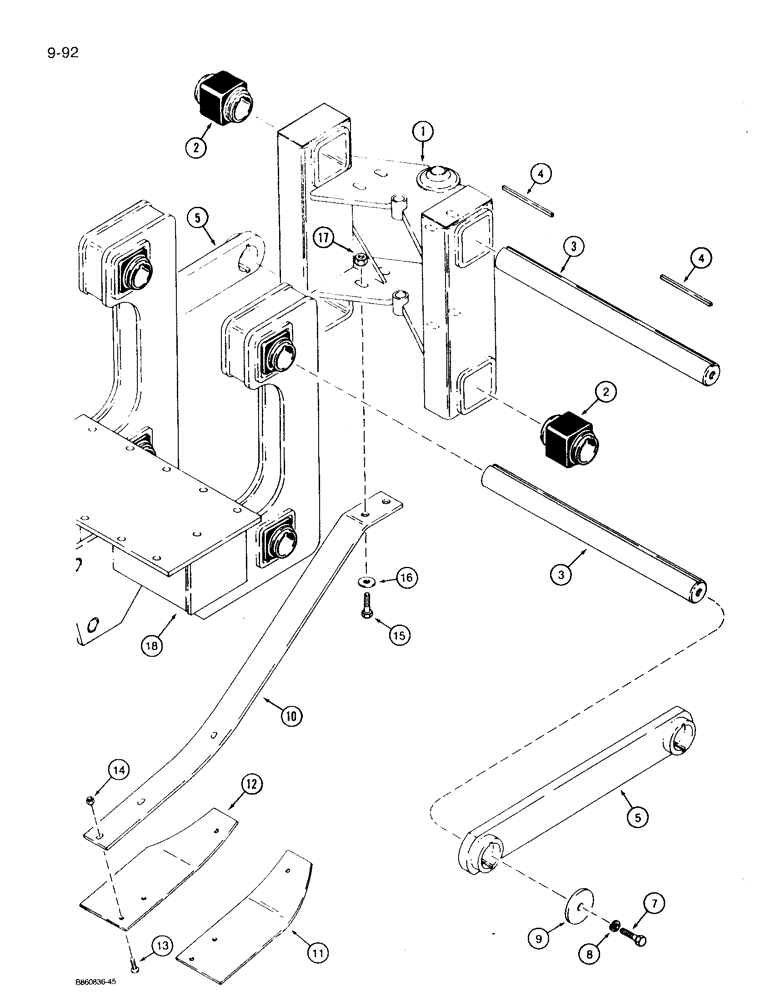

Запчасти Case 360 (9-092) - PLOW PIVOT FRAME AND LINKS (09) - CHASSIS/ATTACHMENTS

1

H663302

FRAME

plow pivot, Incl. Ref. 2

1шт.

2

H235069

SEAL

BUSHING - rubber, pivot frame

4шт.

3

H401323

SHAFT

plow pivot and blade frames

4шт.

4

H416438

KEY

shaft (replaces F21923 & H416348)

8шт.

5

H661363

LINK

pivot frame to rear frame

4шт.

7

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

8шт.

8

492-11062

BEARING WASHER,5/8"

8шт.

9

A141470

WASHER

flat, 5/8 inch, special (replaces H196626)

8шт.

10

H388561

SPRING

pivot frame, ground leveler

2шт.

11

H149666

SHOE (ASSY)

PLATE - spring shoe, right-hand

1шт.

12

H149674

SHOE (ASSY)

PLATE - spring shoe, left-hand

1шт.

13

164-152

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 1"

hex socket flat head, 3/8" - 24 NF x 1", grade 8, plated

6шт.

14

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, 3/8" - 24 NF, plated

6шт.

15

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

4шт.

16

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, 5/8 inch, hardened

4шт.

17

232-41110

NUT,5/8"-11, GC

4шт.

18

H663385

FRAME

plow, rear, parts list Fig. 9-94

1шт.
