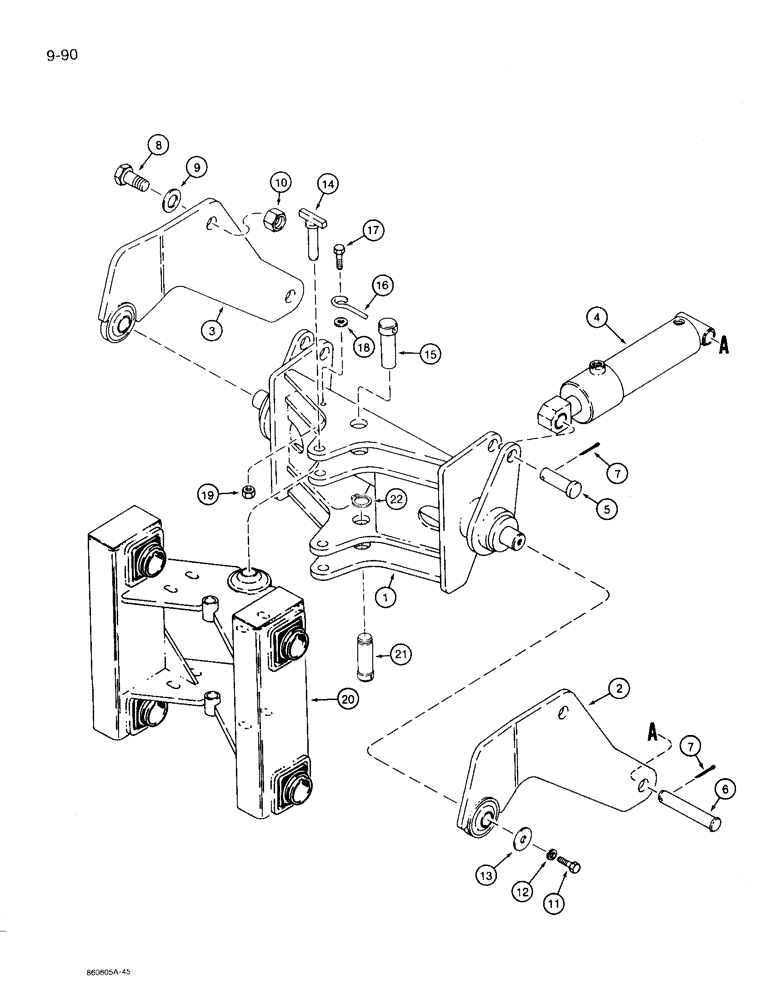

Запчасти Case 360 (9-090) - PLOW FRONT FRAME AND CYLINDERS (09) - CHASSIS/ATTACHMENTS

1

H645473

FRAME

plow, front

1шт.

2

H672071

ARM

plow lift, right-hand

1шт.

3

H672070

ARM

plow lift, left-hand

1шт.

4

G33751

CYLINDER,Double Acting, 38.1mm Rod, 177.8mm Stroke

plow lift, parts list Fig. 8-70

2шт.

5

H67272

PIN,25.3mm OD x 84.93mm L

clevis, 1 x 2-25/32 inch, special

2шт.

6

H69476

RETAINER

clevis, 1 x 6 inch, special

2шт.

7

432-1628

COTTER PIN,1/4" x 1 3/4"

4шт.

8

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

hex, 1 NC x 2-1/2 inch, grade 8

2шт.

9

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, 1 inch, special

2шт.

10

232-41116

LOCK NUT,1"-8, GC

2шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

13

H165720

WASHER

flat, 1/2 inch, special

2шт.

14

H565259

PIN

clevis, swing locking

1шт.

15

H384099

PIVOT

plow lift frame to plow pivot frame, upper

1шт.

16

H313981

PIN

LOCK - pin

2шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

18

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 3/8 inch, hardened

1шт.

19

232-4116

NUT,3/8"-16, GC

2шт.

20

H663302

FRAME

plow pivot, parts list Fig. 9-92; Incl. H363432

1шт.

H363432

BALL JOINT

SPARE PART

2шт.

21

H434623

PIVOT PIN

pivot, plow lift frame to plow pivot frame, lower

1шт.

22

S73862

SNAP RING,#143, Ext

lower pivot pin #143, Ext

1шт.
