Запчасти Case 360 (9-086) - PLOW CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS

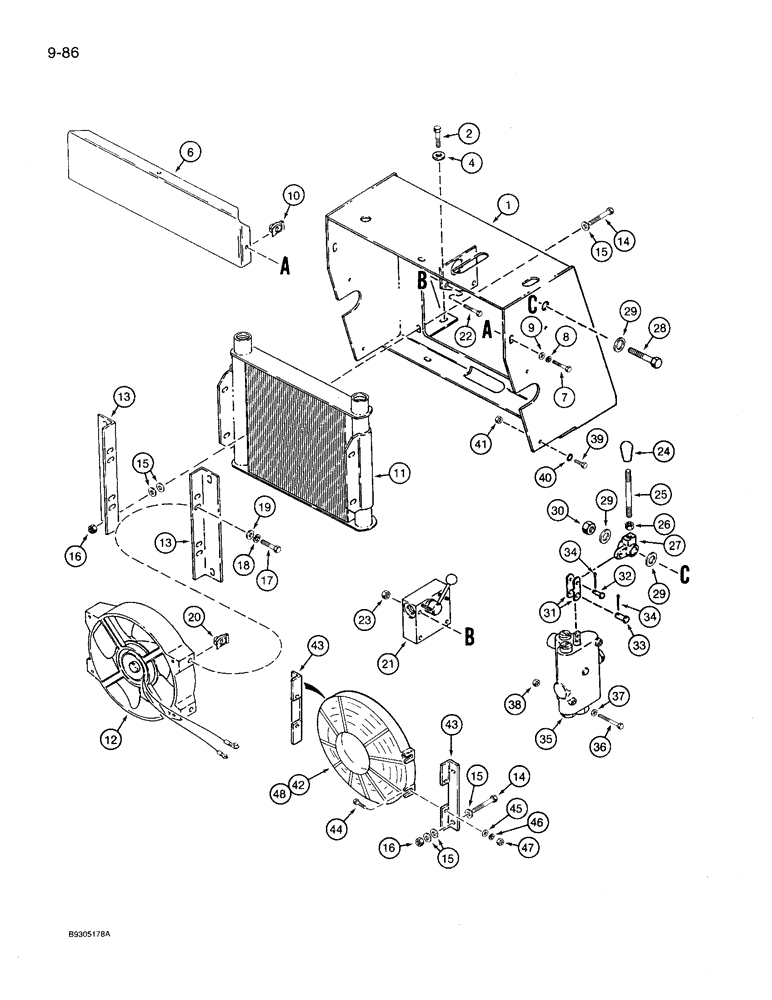

Схема запчастей Case 360 - (9-086) - PLOW CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS
16
34
29
21
13
25
7
29
28
33
14
15
18
36
6
15
29
20
15
1
19
34
37
16
8
17
24
42
39
48
13
46
15
14
44
27
30
38
32
11
47
43
31
45
26
10
41
40
2
23
4
9
35
22
12
43

Артикул

Название

Примечание

Количество

1

H672287

BRACKET

plow control

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If Used

2шт.

2

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch; If Used

2шт.

4

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

6

H434162

COVER

console

1шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

7

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch; If Used

2шт.

8

492-11031

LOCK WASHER,5/16"

3шт.

9

H426775

WASHER

flat, 5/16 inch, hardened

3шт.

10

H346650

NUT

5/16 inch NC, special

3шт.

11

H351734

COOLER, OIL

plow hydraulic oil

1шт.

12

H672448

FAN

ASSEMBLY - plow hydraulic oil cooler, electric, see Figs. 4-14 and 4-16 for components, if used, no longer available, order Ref. 49, 50, 51 and 52

1шт.

13

H435065

ANGLE

fan mounting, if used

2шт.

14

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

4шт.

15

H426775

WASHER

flat, 5/16 inch, hardened

12шт.

16

232-4115

LOCK NUT,5/16"-18, GC

Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-82 and 9-84 for additional parts.5/16 inch NC

4шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If used

4шт.

18

492-11031

LOCK WASHER,5/16"

If used

4шт.

19

H426775

WASHER

flat, hardened, if used

4шт.

20

H346650

NUT

5/16 inch NC, special, if used

4шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - control, plow motor, for correct assembly and components, see Fig. 8-68

1шт.

22

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

23

232-4115

LOCK NUT,5/16"-18, GC

2шт.

24

A14051

GRIP

plow lift control valve handle

1шт.

25

H242701

HANDLE

plow lift control valve

1шт.

26

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

27

H275255

CRANK LEVER

plow lift control valve handle

1шт.

28

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

29

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, 5/8 inch, hardened

3шт.

30

232-41110

NUT,5/8"-11, GC

1шт.

31

H185066

DRAG LINK

plow lift control valve

2шт.

32

D23693

AXLE PIN

clevis, 1/4 x 1 inch long, special

1шт.

33

H35279

AXLE PIN,4.72mm OD x 23.76mm L

clevis, 3/16 x 57/64 inch long, special

1шт.

34

432-48

COTTER PIN,1/16" x 1/2"

2шт.

35

H657320

VALVE

control, plow lift, parts list Fig. 8-64

1шт.

36

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

37

H426767

WASHER

flat, 1/4 inch, hardened

2шт.

38

232-4114

LOCK NUT,1/4"-20, GC

2шт.

39

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

40

193-57

LOCK WASHER,Ext Tooth, 1/4"

1шт.

41

232-4114

LOCK NUT,1/4"-20, GC

1шт.

42

H673325

FAN

ASSEMBLY - plow hydraulic oil cooler, electric, see Figs. 4-14 and 4-17C for components, if used, no longer available, order Ref. 49, 50, 51 and 52 for service

1шт.

43

H436301

BRACKET

fan mounting, if used

1шт.

44

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

If used

4шт.

45

H426767

WASHER

flat, 1/4 inch, hardened, if used

4шт.

46

892-11006

LOCK WASHER,M6

If Used

4шт.

47

825-1106

NUT,Hex, M6, Cl 8

If used

4шт.

48

H674469

FAN

ASSEMBLY - oil cooler, no longer available, order Ref. 49, 50, 51 and 52

1шт.

49

H438066

FAN

blade, not shown

1шт.

50

H438067

MOTOR

fan, not shown

1шт.

51

H438068

SHROUD

fan, not shown

1шт.

52

H438069

CLIP

blade retaining, not shown

1шт.

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

Motor To Shroud

3шт.

Выбрано товаров: 53
