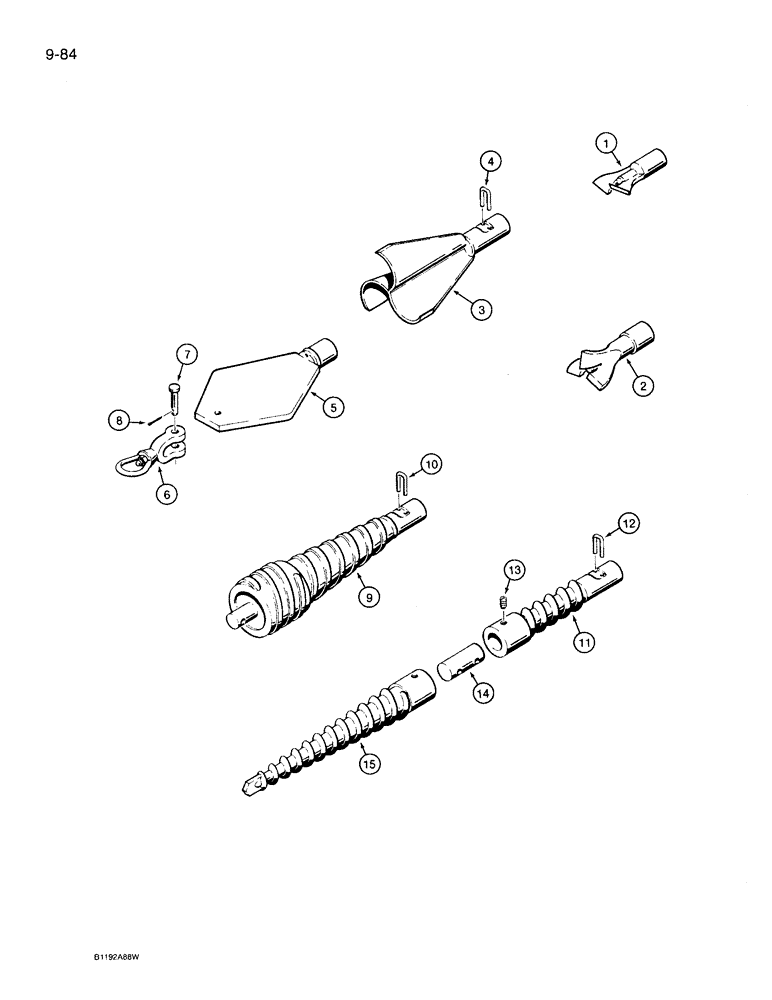

Запчасти Case 360 (9-084) - HYDRA-BORER BORING ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

1

H518837

BIT

drill, 2", two blade, 1" NPT female; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-80 and 9-82 for additional parts.

1шт.

1

H518910

BIT

drill, 3", two blade, 1" NPT female

1шт.

2

H519249

BIT

drill, 3", three blade, 1" NPT female

1шт.

3

H522441

REAMER

8", quick lock female

1шт.

3

H522466

REAMER

12", quick lock female

1шт.

4

H94961

STAPLE

retainer, quick lock; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-80 and 9-82 for additional parts.

1шт.

5

H519504

REAMER

fish plate, 4"

1шт.

5

H519652

REAMER

fish plate, 6"

1шт.

5

H528497

REAMER

fish plate, 8"

1шт.

6

H88195

FASTENER

reamer

1шт.

7

H32284

AXLE PIN

clevis, 3/8" x 1-3/4" long, special

1шт.

8

132-310

COTTER PIN,1/8" x 1"

1шт.

9

H522409

REAMER

compaction, 3-3/4", quick lock female

1шт.

10

H94961

STAPLE

retainer, quick lock; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-80 and 9-82 for additional parts.

1шт.

11

H522433

BIT

compaction, 2", quick lock female; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-80 and 9-82 for additional parts.

1шт.

12

H94961

STAPLE

retainer, quick lock; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-80 and 9-82 for additional parts.

1шт.

13

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

hex socket head, 3/8" - 16 NC x 1-3/4"; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-80 and 9-82 for additional parts.

2шт.

14

H85233

COUPLING

bit; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-80 and 9-82 for additional parts.

1шт.

15

H84988

BIT

compaction, end, 2"; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-80 and 9-82 for additional parts.

1шт.
