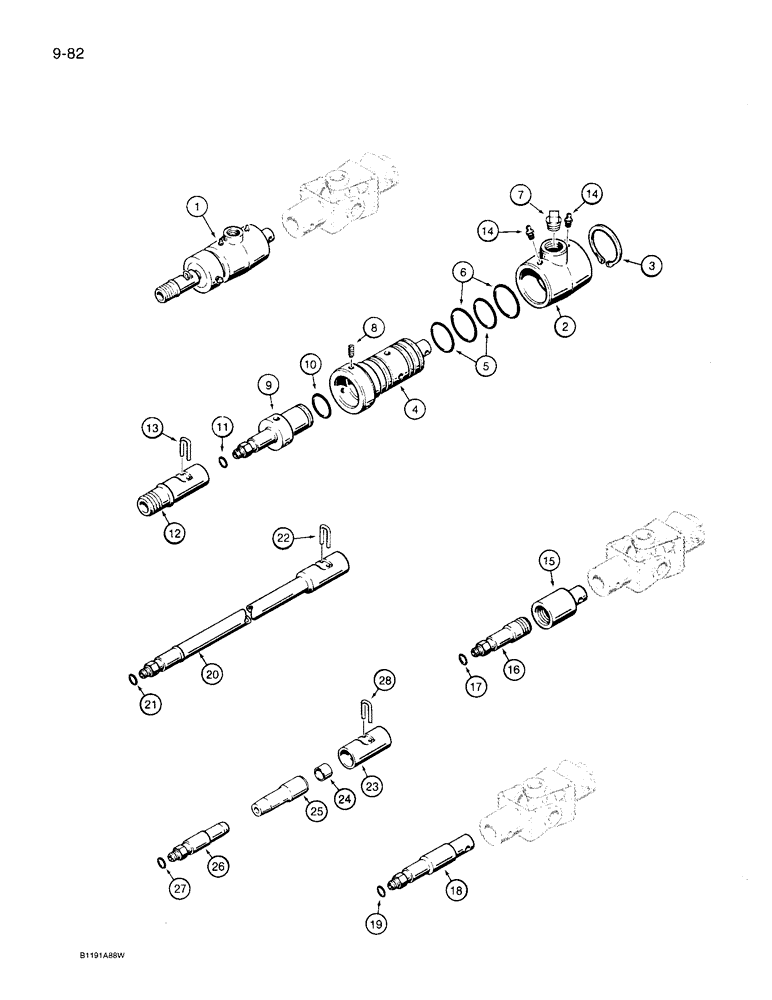

Запчасти Case 360 (9-082) - HYDRA-BORER COUPLERS, ADAPTERS, AND DRILL STEMS (09) - CHASSIS/ATTACHMENTS

1

H522367

COUPLING

water, wet boring, attaches to U-joint on gearbox, Incl. Ref. 2 - 14

1шт.

2

H84228

RING

HOUSING - coupler, water

1шт.

3

F40807

SNAP RING,#225, Ext

coupler #225, Ext

1шт.

4

H84236

COUPLING

SLEEVE - coupler

1шт.

5

R20570

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

seal backup

2шт.

6

H749317

OIL SEAL

coupler

2шт.

7

353-207

PLUG,Sq Drive, 3/4"-14 NPT

pipe, square head, 3/4" NPT, used for dry boring, if used

1шт.

8

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

set, square head, 3/8" - 16 NC x 3/4"

3шт.

9

H522359

ADAPTER

quick lock, male

1шт.

10

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

coupler, large

1шт.

12

H522375

ADAPTER

drill stem, quick lock female to 1" NPT male; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-82 and 9-84 for additional parts.

1шт.

13

H94961

STAPLE

retainer, quick lock; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-82 and 9-84 for additional parts.

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

2шт.

15

H83352

ADAPTER

1" NPT male, dry boring, attaches to U-joint, if used

1шт.

16

H522383

ADAPTER

ADAPTER - 1" NPT male to quick lock male, if used

1шт.

18

H646901

ADAPTER

dry boring, quick lock male, attaches to U-joint, if used; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-82 and 9-84 for additional parts.

1шт.

20

H672563

EXTENSION

drill, quick lock, 5 foot long

1шт.

Refs. 23 through 26 may also be used to repair ends of Ref. 20 drill stem.

1шт.

20

H672562

ADAPTER

drill, quick lock, 10 foot long; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-82 and 9-84 for additional parts.

1шт.

Refs. 23 through 26 may also be used to repair ends of Ref. 20 drill stem.

1шт.

22

H94961

STAPLE

retainer, quick lock; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-82 and 9-84 for additional parts.

1шт.

H672594

COUPLING

quick lock, female, Incl. Ref. 23 - 25

1шт.

23

H434272

COUPLING

quick lock, female

1шт.

Refs. 23 through 26 may also be used to repair ends of Ref. 20 drill stem.

1шт.

24

H434276

COUPLING

BUSHING - shaft, O-ring seat

1шт.

Refs. 23 through 26 may also be used to repair ends of Ref. 20 drill stem.

1шт.

25

H434271

COUPLING

SHAFT - stub

1шт.

Refs. 23 through 26 may also be used to repair ends of Ref. 20 drill stem.

1шт.

26

H434273

NIPPLE, LUBE

NIPPLE COUPLER - quick lock, male

1шт.

Refs. 23 through 26 may also be used to repair ends of Ref. 20 drill stem.

1шт.

28

H94961

STAPLE

retainer, quick lock; Component of Hydra-Borer Basic Application Kit, P/N 185583A1. See Figs. 9-82 and 9-84 for additional parts.

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Coupler, small

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Adapter, if used

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Adapter, if used

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Drill stem

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Coupler

1шт.
