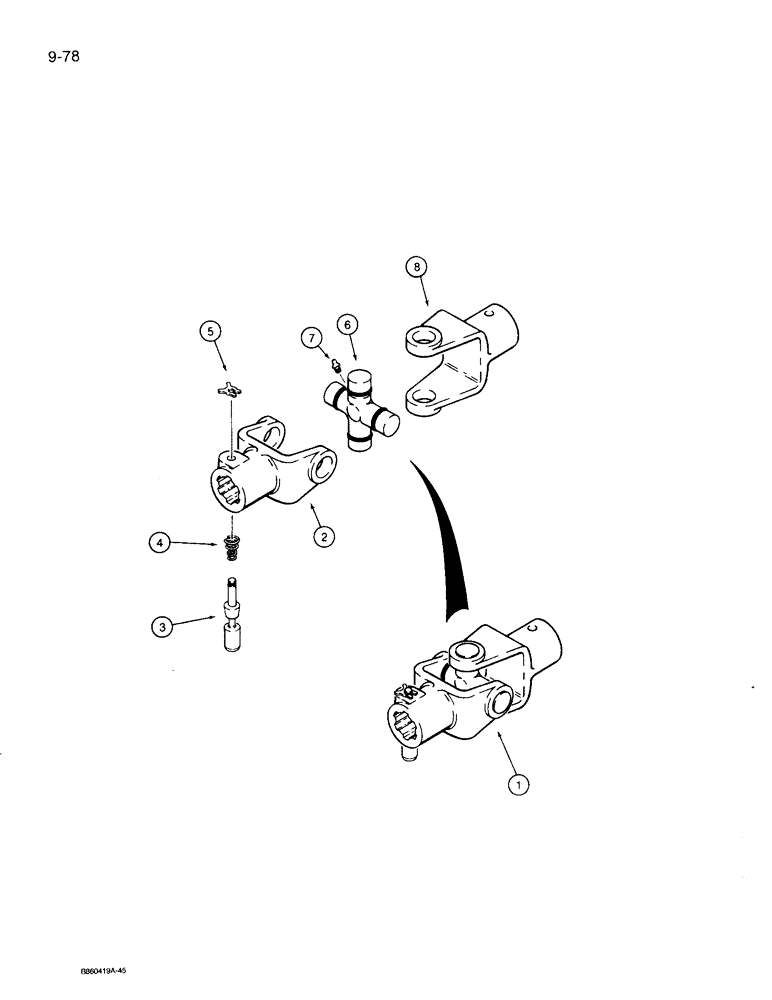

Запчасти Case 360 (9-078) - HYDRA-BORER ATTACHMENT UNIVERSAL JOINT (09) - CHASSIS/ATTACHMENTS

1

H511113

JOINT

Hydra-Borer attachment, service with individual components listed below

1шт.

H71142

YOKE

UNIVERSAL JOINT YOKE splined, Incl. Ref 1 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

YOKE - splined

1шт.

H658179

SET OF PARTS

U-joint retaining, Incl. Ref. 3 and 4, Order this kit if pin, Ref 3 is 1-3/4 inch

1шт.

182951A1

KIT

U-joint retaining, Incl. Ref. 3A and 4; Not included in H71142, Order this kit if pin, Ref 3A is 2-1/4 inch

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - clevis, retainer, 1-3/4 "

1шт.

3a

NSS

NOT SOLD SEPARAT

PIN - clevis, retainer, 2-1/4"; Not included in H71142

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - retainer

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - pin

1шт.

H71167

JOURNAL

CROSS ASSEMBLY - universal joint, Incl. Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

CROSS - U-joint

1шт.

7

219-11

LUBE NIPPLE,1/4" - 28 NPTF

Straight, Taper

1шт.

8

H71159

YOKE

UNIVERSAL JOINT YOKE boring attachments

1шт.
