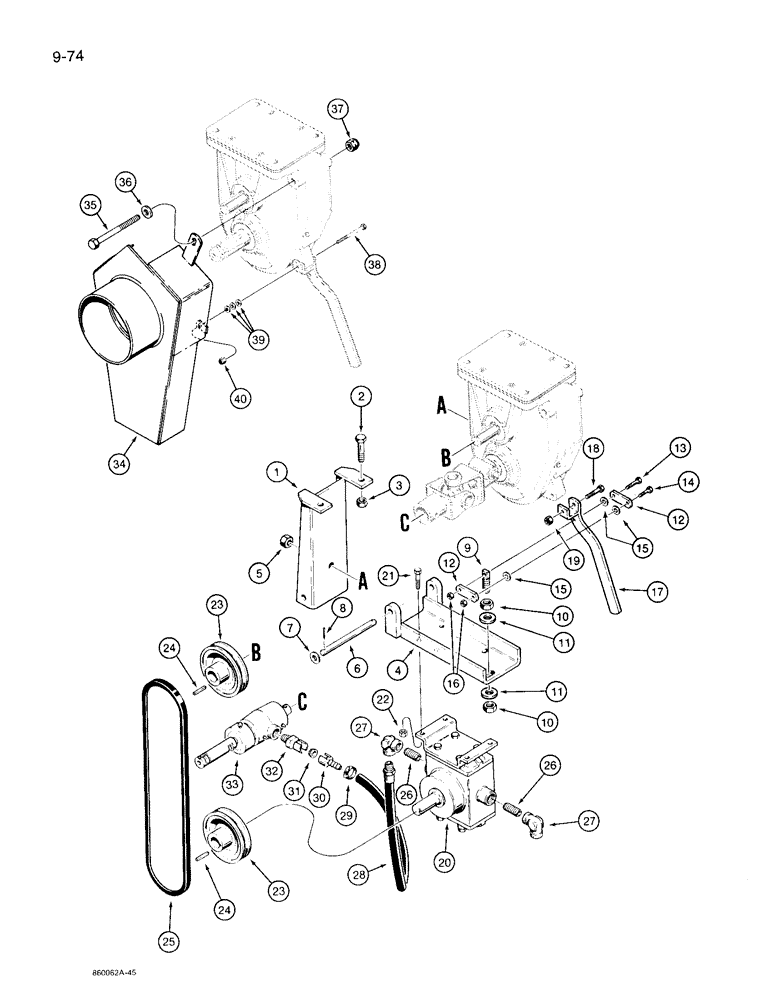

Запчасти Case 360 (9-074) - HYDRA-BORER WATER PUMP MOUNTING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
H519389
SUPPORT
water pump mounting bracket; Part of Water Pump Attaching Kit, P/N H668475
1шт.
2
413-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
2шт.
3
232-4118
NUT,1/2"-13, GC
2шт.
4
H519397
PUMP
water pump mounting; Part of Water Pump Attaching Kit, P/N H668475
1шт.
5
425-118
NUT,1/2"-20, G5
Part of Water Pump Attaching Kit, P/N H668475
1шт.
6
H87460
PIN
bracket mounting; Part of Water Pump Attaching Kit, P/N H668475
1шт.
7
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 5/64"), Part of Water Pump Attaching Kit, P/N H668475
2шт.
8
432-816
COTTER PIN,1/8" x 1"
Part of Water Pump Attaching Kit, P/N H668475
2шт.
9
H71233
STUD
special, belt adjuster; Part of Water Pump Attaching Kit, P/N H668475
1шт.
10
425-1510
JAM NUT,Jam, 5/8"-18, G5
Hex, Part of Water Pump Attaching Kit, P/N H668475
2шт.
11
495-11066
WASHER,5/8", SAE
flat, 21/32 x 1-5/16 x 3/32 inch; Part of Water Pump Attaching Kit, P/N H668475
2шт.
12
H71241
DRAG LINK
belt adjuster; Part of Water Pump Attaching Kit, P/N H668475
2шт.
13
413-424
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
Part of Water Pump Attaching Kit, P/N H668475
1шт.
15
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16"), Part of Water Pump Attaching Kit, P/N H668475
3шт.
16
232-4114
LOCK NUT,1/4"-20, GC
Part of Water Pump Attaching Kit, P/N H668475
2шт.
17
H665943
LEVER
belt adjusting; Part of Water Pump Attaching Kit, P/N H668475
1шт.
18
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
Not used with Ref. 34 guard; Part of Water Pump Attaching Kit, P/N H668475
1шт.
19
232-4115
LOCK NUT,5/16"-18, GC
Part of Water Pump Attaching Kit, P/N H668475
1шт.
20
H668442
PUMP, WATER
parts list Fig. 9-76; Part of Water Pump Attaching Kit, P/N H668475
1шт.
21
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
Part of Water Pump Attaching Kit, P/N H668475
4шт.
22
232-4116
NUT,3/8"-16, GC
Part of Water Pump Attaching Kit, P/N H668475
4шт.
23
H87494
SHEAVE
drive and driven; Part of Water Pump Attaching Kit, P/N H668475
2шт.
24
T13450
KEY
square, 1/4" x 1-1/4" long, sheave; Part of Water Pump Attaching Kit, P/N H668475
2шт.
25
H88005
BELT
pump drive; Part of Water Pump Attaching Kit, P/N H668475
1шт.
26
221-1211
FITTING
pipe, 3/4" NPT x 1-3/8" long; Part of Water Pump Attaching Kit, P/N H668475
2шт.
27
221-1378
ELBOW,90º, 3/4" NPT
90 degree, female, 3/4" NPT; Part of Water Pump Attaching Kit, P/N H668475
2шт.
28
H78295
HOSE
36" (914 mm) long, water; Part of Water Pump Attaching Kit, P/N H668475
1шт.
29
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
hose, worm drive, SAE No. 20; Part of Water Pump Attaching Kit, P/N H668475
1шт.
30
H78303
COUPLING
quick disconnect, with 3/4" ID hose barb; Part of Water Pump Attaching Kit, P/N H668475
1шт.
31
H88104
GASKET
coupler; Part of Water Pump Attaching Kit, P/N H668475
1шт.
32
H78311
CLAMP
quick disconnect, with 3/4" NPT male adapter; Part of Water Pump Attaching Kit, P/N H668475
1шт.
33
H522367
COUPLING
water, wet boring, see parts list Fig. 9-82
1шт.
34
H669119
BELT
belt, Hydra-Borer water pump; Part of Water Pump Attaching Kit, P/N H668475
1шт.
35
413-876
BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5
hex, 1/2 NC x 4-3/4 inch; Part of Water Pump Attaching Kit, P/N H668475
1шт.
36
496-21053
WASHER,17/32" x 1 1/16" x .134"
Part of Water Pump Attaching Kit, P/N H668475
1шт.
37
232-4118
NUT,1/2"-13, GC
Part of Water Pump Attaching Kit, P/N H668475
1шт.
38
413-548
BOLT,Hex, 5/16" - 18 x 3", Gr 5
Used in place of Ref. 18 bolt when Ref. 34 guard is used; Part of Water Pump Attaching Kit, P/N H668475
1шт.
39
495-11034
WASHER,5/16", SAE
(Flat, 11/32 x 11/16 x 1/16"), Part of Water Pump Attaching Kit, P/N H668475
12шт.
40
232-4115
LOCK NUT,5/16"-18, GC
Part of Water Pump Attaching Kit, P/N H668475
1шт.
H668475
ATTACHMENT
KIT - water pump attaching, Incl. Refs. 1, 4 - 32, and 35 - 40
1шт.
14
413-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
Part of Water Pump Attaching Kit, P/N H668475
1шт.
