(2-08) - AIR CLEANER - H673627, DEUTZ DIESEL ENGINE MODELS, PRIOR TO P.I.N. JAF0104257

Запчасти Case 360 (2-08) - AIR CLEANER - H673627, DEUTZ DIESEL ENGINE MODELS, PRIOR TO P.I.N. JAF0104257 (02) - ENGINE

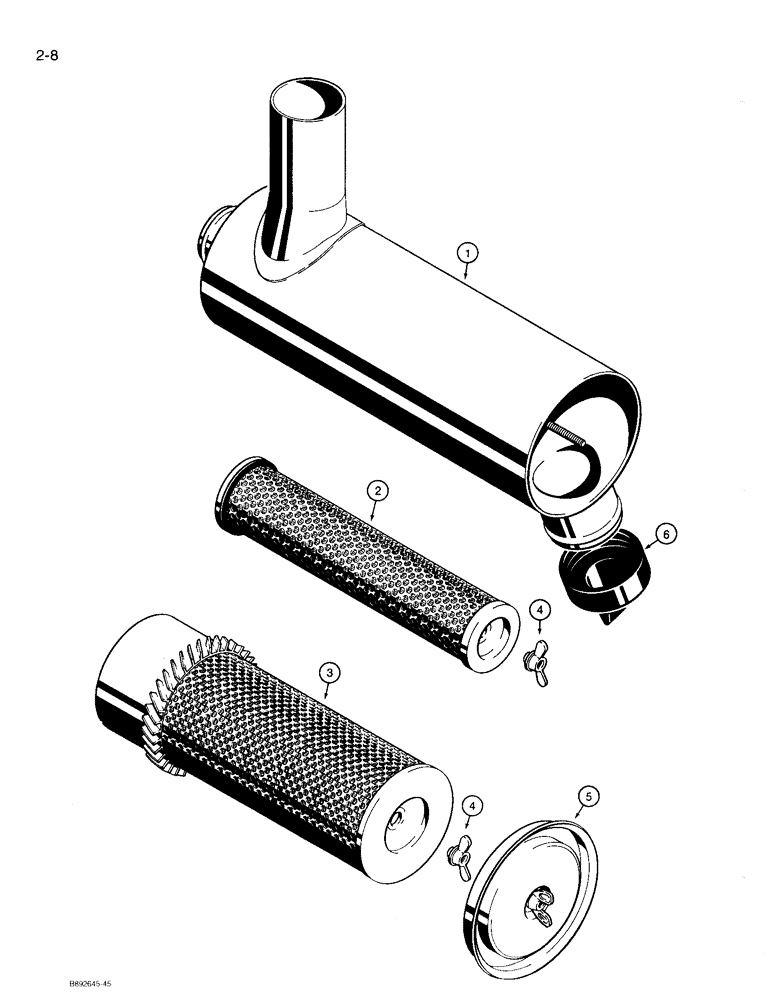

Схема запчастей Case 360 - (2-08) - AIR CLEANER - H673627, DEUTZ DIESEL ENGINE MODELS, PRIOR TO P.I.N. JAF0104257 (02) - ENGINE
3
5
1
2
4
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H673627

AIR CLEANER

air, engine, Includes: Ref 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

2

N6777

FILTER, ELEMENT

ELEMENT, FILTER secondary

1шт.

3

H436515

FILTER, ELEMENT

ELEMENT, FILTER primary

1шт.

4

F91761

WING NUT

wing, element and cover

2шт.

5

N6779

COVER

end

1шт.

6

A189052

DUST VALVE

dust, rubber

1шт.
