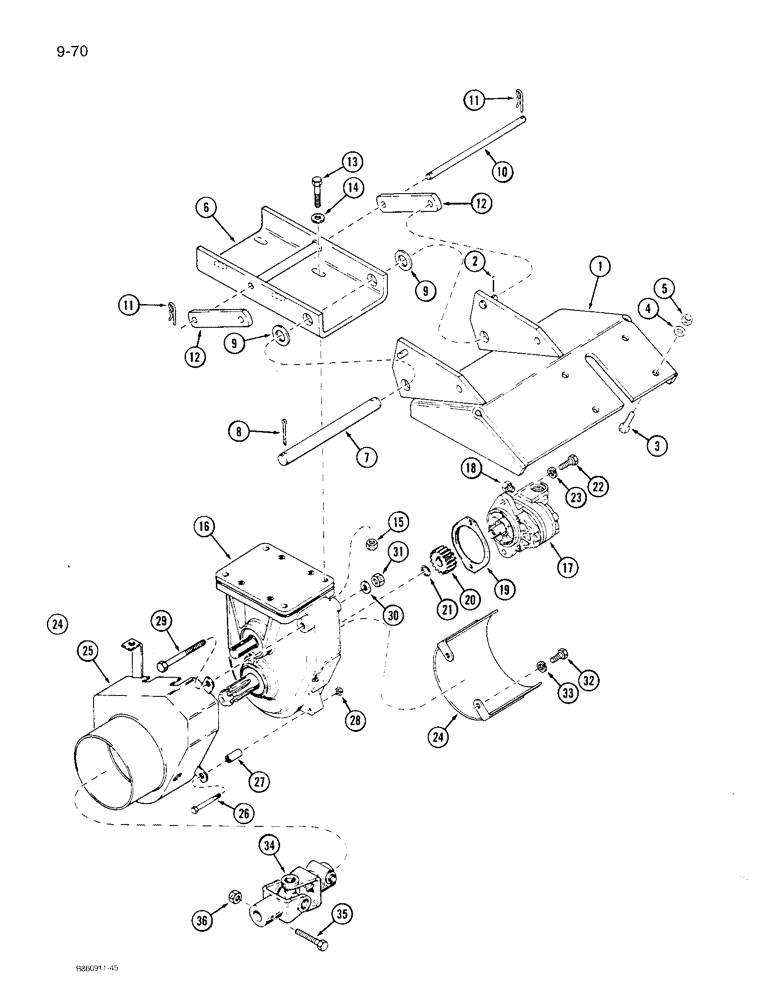

Запчасти Case 360 (9-070) - HYDRA-BORER GEARBOX AND MOTOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H672206

BRACKET

FRAME - Hydra-Borer mounting

1шт.

2

432-816

COTTER PIN,1/8" x 1"

2шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

4

H274894

WASHER

flat, 1/2 inch, special

4шт.

5

232-4118

NUT,1/2"-13, GC

4шт.

6

H672205

CHANNEL

Hydra-Borer gearbox mounting

1шт.

7

H175448

SHAFT

Hydra-Borer pivot

1шт.

8

432-1628

COTTER PIN,1/4" x 1 3/4"

2шт.

9

495-11106

WASHER,1", SAE

(1-1/16 x 2 x 1/8")

2шт.

10

H434517

PIN

Hydra-Borer locking

1шт.

11

H32292

PIN

hair, Hydra-Borer locking pin

2шт.

12

H433471

LINK

mounting bracket to Hydra-Borer frame

2шт.

13

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

14

H274894

WASHER

flat, 1/2 inch, special

4шт.

15

232-4118

NUT,1/2"-13, GC

4шт.

16

H666875

GEARBOX ASSY

Hydra-Borer, parts list Fig. 9-72

1шт.

17

H654814

MOTOR

Hydra-Borer drive, parts list Fig. 8-58

1шт.

18

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

1/4 x 1/8 inch NPT, do not use galvanized

1шт.

19

H32375

GASKET

motor

1шт.

20

H426023

SPUR

input pinion, Not included with H666875 gearbox

1шт.

21

A27521

SNAP RING,#68, Ext

gear #68, Ext

2шт.

22

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

hex, 7/16 NC x 1-1/4 inch

2шт.

23

492-11044

LOCK WASHER,7/16"

2шт.

24

H645838

SHIELD

Hydra-Borer shaft

1шт.

25

H645788

GUARD

Hydra-Borer

1шт.

26

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

27

H217174

SPACER

, Serial Range: gearbox-guard

1шт.

28

232-4115

LOCK NUT,5/16"-18, GC

1шт.

29

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

31

232-4116

NUT,3/8"-16, GC

1шт.

32

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Included with H666875 gearbox

2шт.

33

492-11038

LOCK WASHER,3/8"

Included with H666875 gearbox

2шт.

34

H511113

JOINT

Hydra-Borer attachment, parts list Fig. 9-78

1шт.

35

424-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 2

hex, 3/8 NC x 2-1/2 inch, grade 2

1шт.

36

232-4116

NUT,3/8"-16, GC

1шт.
