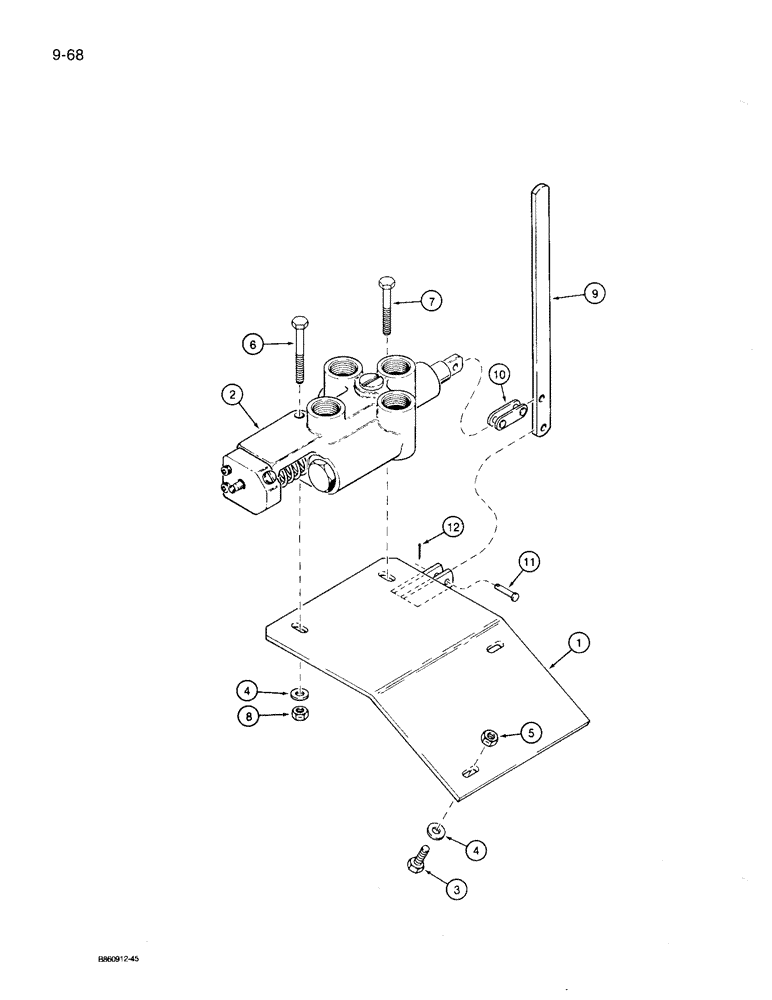

Запчасти Case 360 (9-068) - HYDRA-BORER CONTROL VALVE MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H672555

BRACKET

mounting, Hydra-Borer control valve

1шт.

2

H544718

LOCK VALVE

control, with detent, if used, Hydra-Borer, parts list Fig. 8-56

1шт.

2a

107110A1

VALVE

control, without detent, if used, not shown, Hydra-Borer, parts list Fig. 8-57A

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

4

H426775

WASHER

flat, 5/16 inch, hardened

4шт.

5

232-4115

LOCK NUT,5/16"-18, GC

2шт.

6

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

7

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

8

232-4115

LOCK NUT,5/16"-18, GC

2шт.

9

H71415

LEVER

control valve

1шт.

10

B12505

LINK

connector, complete

1шт.

11

H35279

AXLE PIN,4.72mm OD x 23.76mm L

clevis, 3/16 x 57/64 inch long, special

1шт.

12

432-48

COTTER PIN,1/16" x 1/2"

1шт.
