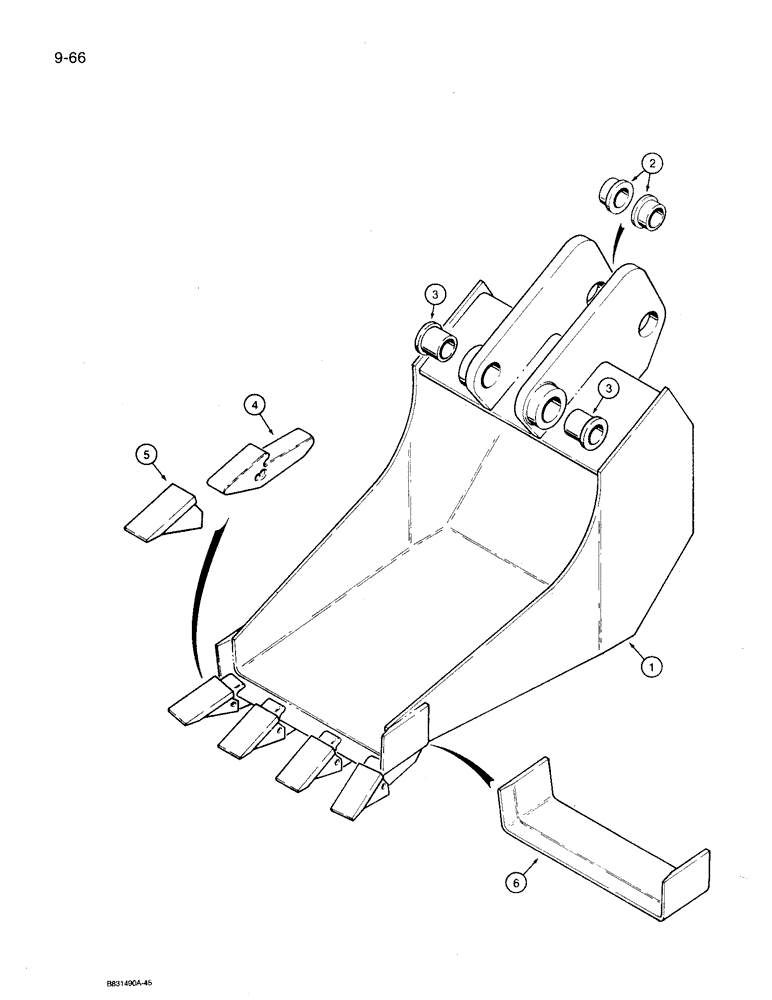

Запчасти Case 360 (9-066) - BACKHOE BUCKETS - BELLHOLE BUCKETS (09) - CHASSIS/ATTACHMENTS

1

H905109

BUCKET ASSEMBLY - 12" (305 mm), machinery item, order from the Machinery Price List, Includes: Ref. 2 - 6

1шт.

2

H50823

BUSHING

cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

bucket pivot

2шт.

4

H61283

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

6

H61424

HALF BLADE

cutting edge, 12" (305 mm) bucket

1шт.

1

H905117

BUCKET ASSEMBLY - 18" (457 mm), machinery item, order from the Machinery Price List, Includes: Ref. 2 - 6

1шт.

2

H50823

BUSHING

cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

bucket pivot

2шт.

4

H61283

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

6

H61432

HALF BLADE

cutting edge, 18" (457 mm) bucket

1шт.

1

H905125

BUCKET ASSEMBLY - 22" (559 mm), machinery item, order from the Machinery Price List, Includes: Ref. 2 - 6

1шт.

2

H50823

BUSHING

cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

bucket pivot

2шт.

4

H61283

TOOTH

SHANK - tooth

5шт.

5

T41166

TOOTH

POINT - tooth

5шт.

6

H61440

HALF BLADE

cutting edge, 22" (559 mm) bucket

1шт.
