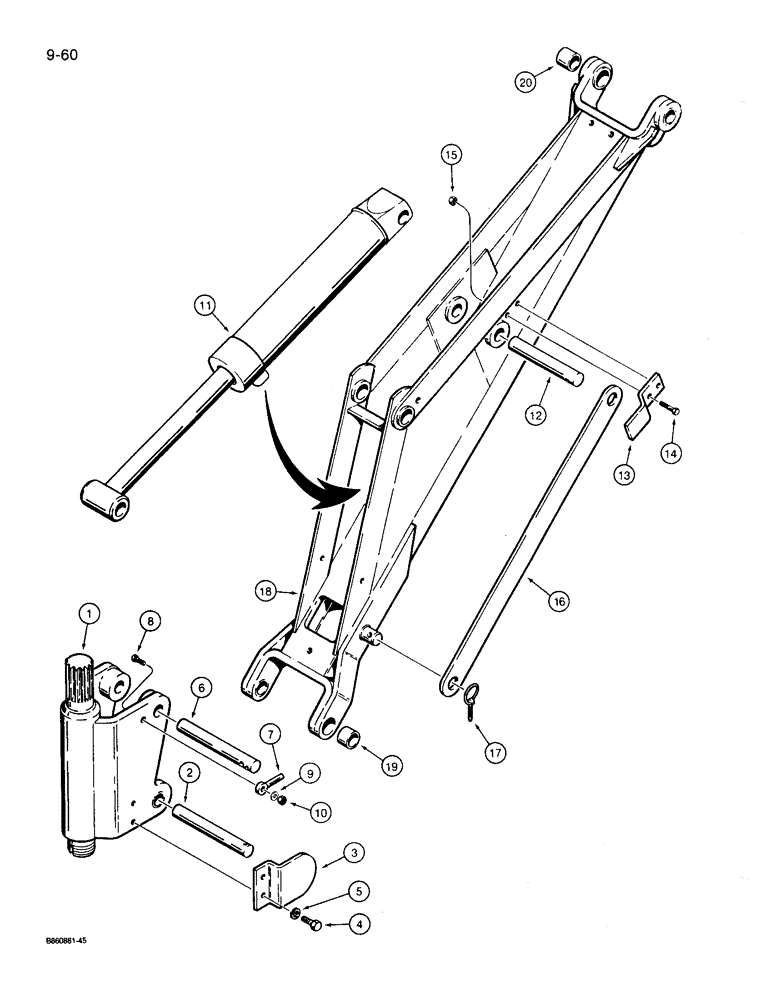

Запчасти Case 360 (9-060) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

H514596

POST

swing, backhoe, parts list Fig. 9-58

1шт.

2

H50526

PIN

boom pivot, boom to swing tower

1шт.

3

H434535

LARGE PLATE

PLATE, LARGE pin retaining

2шт.

4

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

6

H56945

AXLE PIN

boom cylinder rod end to swing tower

1шт.

7

H313981

PIN

retaining

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

9

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

10

232-4116

NUT,3/8"-16, GC

1шт.

11

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

boom, parts list Fig. 8-50

1шт.

12

H50690

AXLE PIN,28.57mm OD x 171.45mm L

boom cylinder closed, Serial Range: end-boom

1шт.

13

H60616

AXLE PIN

pin retainer

2шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

15

232-4116

NUT,3/8"-16, GC

4шт.

16

H56952

DRAG LINK

transport

2шт.

17

A30338

PIN

locking

2шт.

18

H514620

BOOM

backhoe, Incl. Ref. 19 and 20

1шт.

19

H50435

BUSHING,28.91mm ID x 36.63mm OD x 25.4mm L

boom pivot

2шт.

20

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

dipper pivot

2шт.
