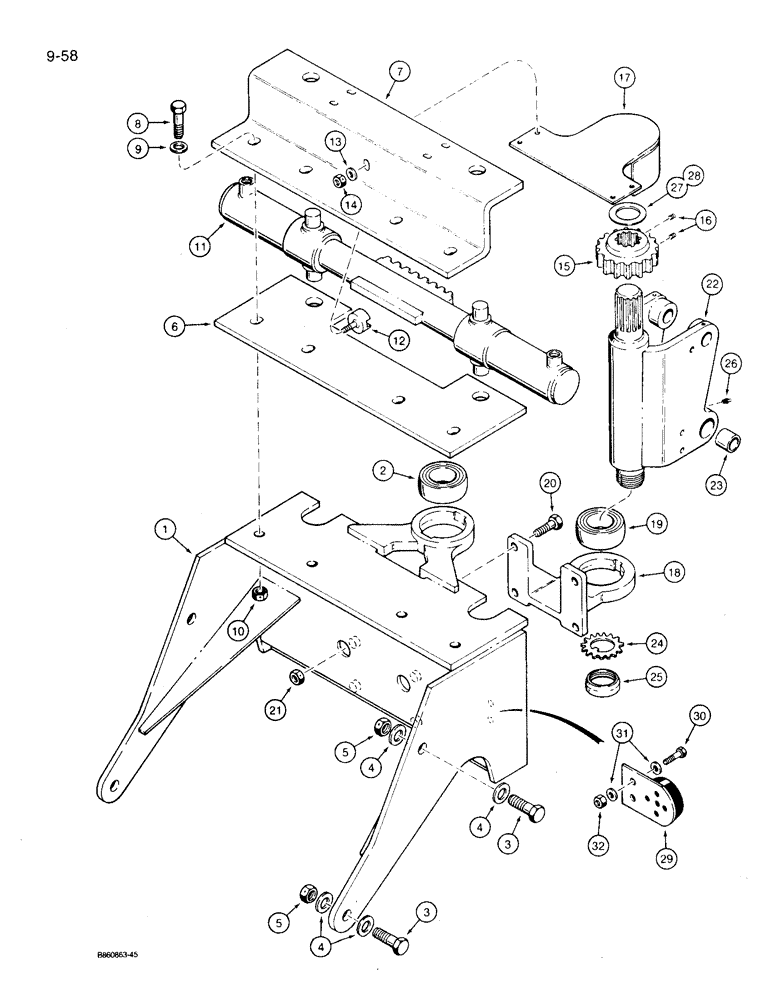

Запчасти Case 360 (9-058) - BACKHOE FRAME AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

H672042

CHASSIS

backhoe attachment, Incl. Ref. 2

1шт.

2

H747170

BALL BEARING

frame

1шт.

3

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

hex, 1 NC x 2-1/2 inch, grade 8, backhoe frame to chassis

4шт.

4

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, 1-1/16 x 1-7/8 x 9/64 inch, hardened

8шт.

5

232-41116

LOCK NUT,1"-8, GC

4шт.

6

H433143

PLATE

mounting, swing cylinder

1шт.

7

H433142

LARGE PLATE

PLATE, LARGE mounting, swing cylinder

1шт.

8

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Mounting bracket to backhoe frame

4шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4 inch hardened

4шт.

10

232-41112

NUT,3/4"-10, GC

4шт.

11

H514125

CYLINDER ASSY.

swing, parts list Fig. 8-48

1шт.

12

109082A1

GUIDE

BOLT - special, rack guide, swing cylinder to bracket, replaces H434525

1шт.

13

D43266

WASHER

WASHER - flat, 21/32 x 1-5/16 x 9/64 inch, hardened

1шт.

14

230-47110

LOCK NUT,5/8"-18, GB

1шт.

15

H50369

GEAR WHEEL

swing

1шт.

16

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8 NC x 3/8 inch, cone pt

4шт.

17

H514380

COVER ASSY

gear

1шт.

18

H571927

BEARING ASSY

swing tower, lower frame bearing, Incl. Ref. 19

1шт.

19

H747170

BALL BEARING

lower frame bracket

1шт.

20

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Lower bracket to backhoe frame

4шт.

21

232-41110

NUT,5/8"-11, GC

4шт.

22

H514596

POST

swing, backhoe, Incl. Ref. 23

1шт.

23

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

swing tower

2шт.

24

192-311

BEARING WASHER,Bearing, W-11

bearing lock, SAE No. W-11

1шт.

25

131-1037

BEARING LOCK NUT,Bearing, 2.1654" Bore

bearing lock, N-11, if used

1шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Swing tower

1шт.

27

H433285

SPACER

swing gear, 1.5 mm thick

1шт.

28

H433284

SPACER

swing gear, 3 mm thick

1шт.

29

H625731

SHOCK ABSORBER

rubber, swing tower to boom and swing cushion

2шт.

30

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

31

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

32

232-4118

NUT,1/2"-13, GC

4шт.
