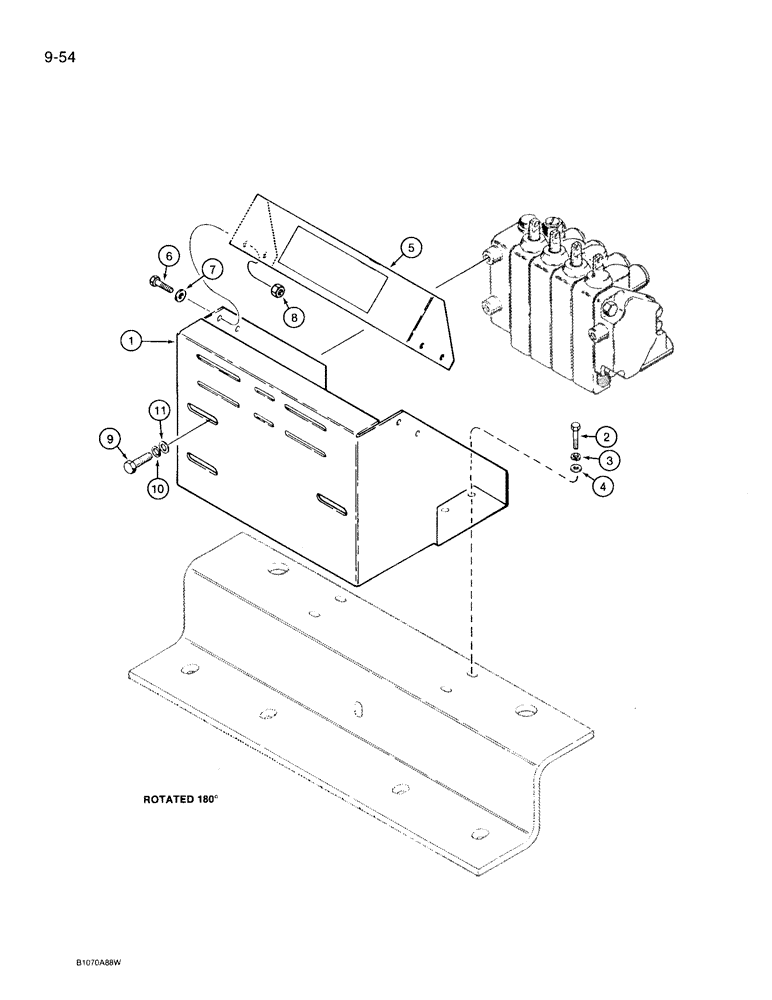

Запчасти Case 360 (9-054) - BACKHOE CONTROL CONSOLE - MODELS WITH DUAL LEVER CONTROLS, PRIOR TO P.I.N. JAF0091962 (09) - CHASSIS/ATTACHMENTS

1

H434591

CONSOLE

valve mounting

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

5

H434696

CHANNEL

decal mounting, see Fig. 9-140 for decal

1шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

7

H426767

WASHER

flat, 1/4 inch, hardened, if used

4шт.

8

232-4114

LOCK NUT,1/4"-20, GC

4шт.

9

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

3шт.

10

492-11044

LOCK WASHER,7/16"

3шт.

11

H426783

WASHER

flat, 7/16 inch, hardened

3шт.
