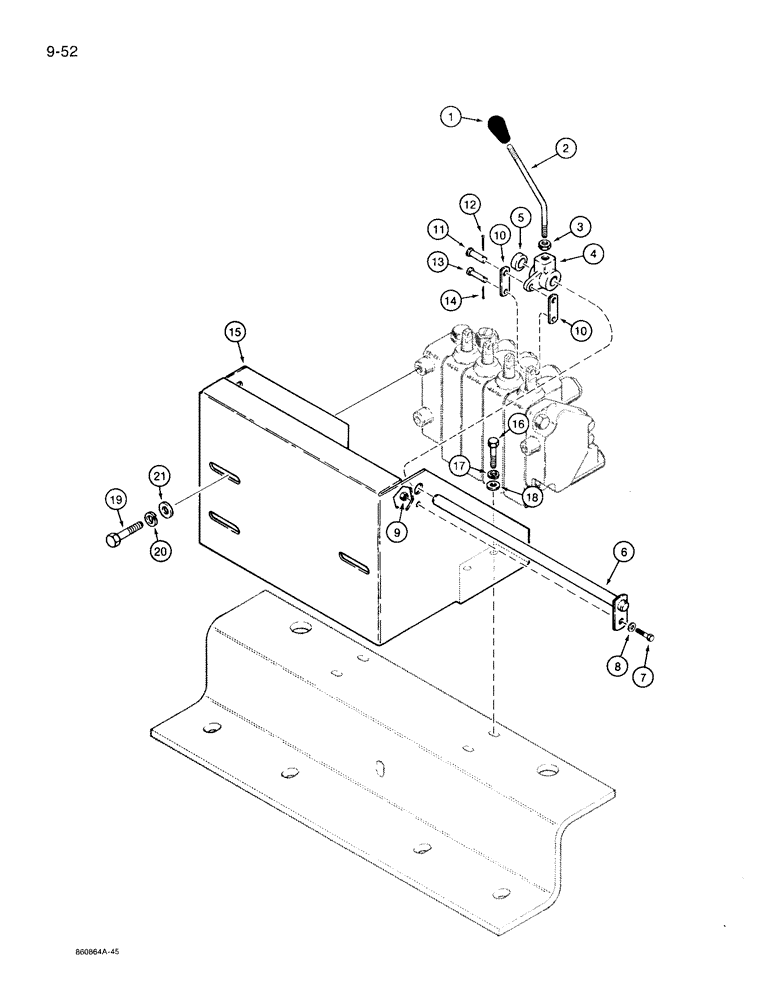

Запчасти Case 360 (9-052) - BACKHOE CONTROLS AND CONTROL CONSOLE - MODELS WITH FOUR LEVER CONTROLS (09) - CHASSIS/ATTACHMENTS

1

A14051

GRIP

control lever

4шт.

2

H191924

LEVER

control, backhoe

4шт.

3

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.

4

H275255

CRANK LEVER

control lever pivot

4шт.

5

H191908

SPACER

lever

3шт.

6

H669192

ROD

control lever pivot

1шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.

9

232-4114

LOCK NUT,1/4"-20, GC

1шт.

10

H185066

DRAG LINK

, Serial Range: valve-lever

8шт.

11

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

1/4 x 3/4 inch, special, Serial Range: lever-link

4шт.

12

432-48

COTTER PIN,1/16" x 1/2"

4шт.

13

H35279

AXLE PIN,4.72mm OD x 23.76mm L

3/16 x 57/64 inch, Serial Range: link-valve

4шт.

14

432-48

COTTER PIN,1/16" x 1/2"

4шт.

15

H428359

CONSOLE

valve mounting

1шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

19

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

3шт.

20

492-11044

LOCK WASHER,7/16"

3шт.

21

495-11047

WASHER,7/16", SAE

Flat, (15/32 x 59/64 x 1/16")

3шт.
