(9-051A) - BACKFILL BLADE LIFT AND ANGLE CONTROLS W/ROD TYPE CONTROL LEVERS

Запчасти Case 360 (9-051A) - BACKFILL BLADE LIFT AND ANGLE CONTROLS W/ROD TYPE CONTROL LEVERS (09) - CHASSIS/ATTACHMENTS

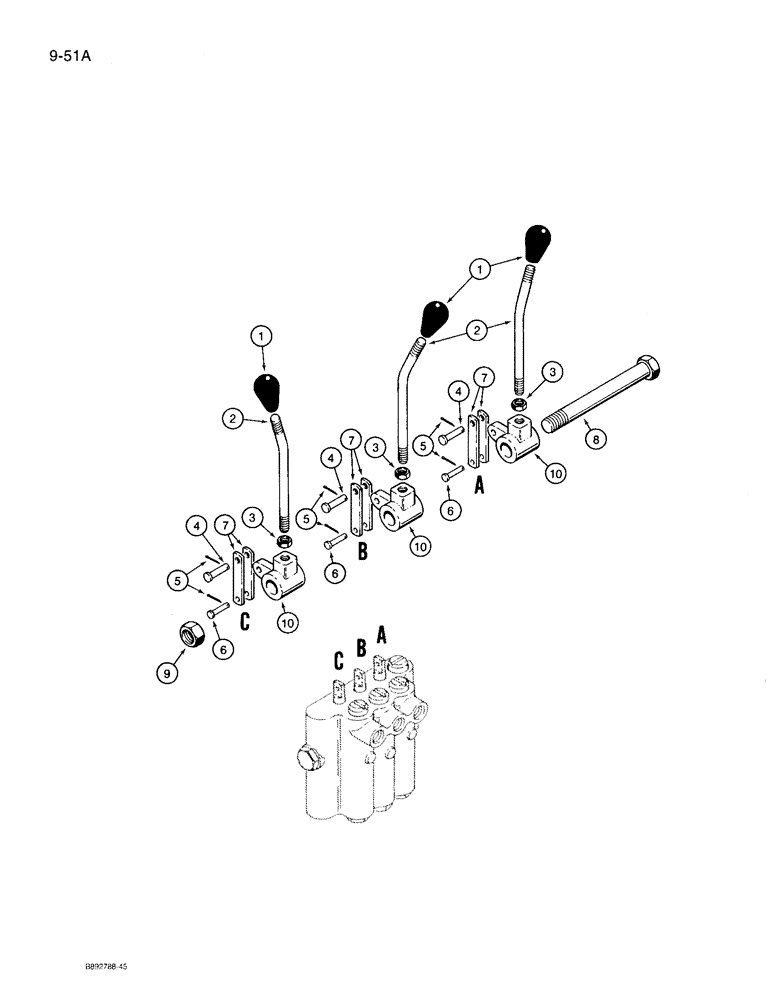

Схема запчастей Case 360 - (9-051A) - BACKFILL BLADE LIFT AND ANGLE CONTROLS W/ROD TYPE CONTROL LEVERS (09) - CHASSIS/ATTACHMENTS
7
5
7
10
2
9
6
2
4
1
8
6
3
1
3
3
4
7
6
4
10
10
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A14051

GRIP

control lever

3шт.

2

H191924

LEVER

control

3шт.

3

425-146

JAM NUT,3/8" - 16, Gr 5

3шт.

4

D23693

AXLE PIN

clevis, 1/4 x 1 inch long, special

3шт.

5

432-48

COTTER PIN,1/16" x 1/2"

6шт.

6

H35279

AXLE PIN,4.72mm OD x 23.76mm L

clevis, 3/16 x 57/64 inch

3шт.

7

H196857

LINK

control lever

6шт.

8

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

1шт.

9

232-41110

NUT,5/8"-11, GC

1шт.

10

H275255

CRANK LEVER

control lever

3шт.
