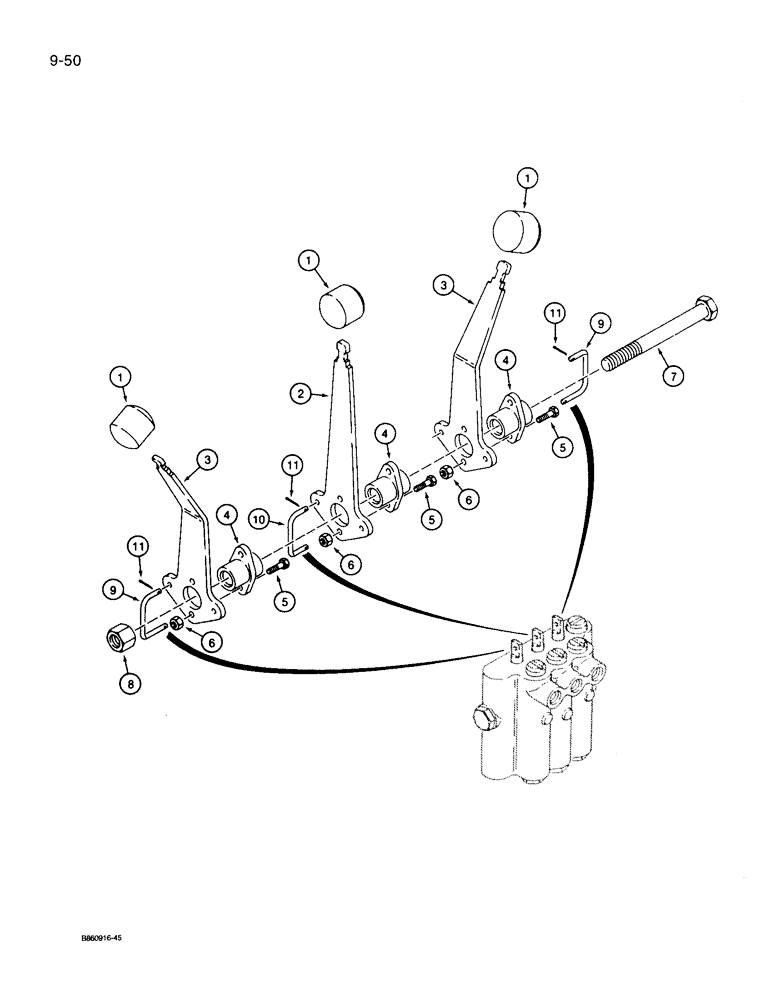

Запчасти Case 360 (9-050) - BACKFILL BLADE LIFT AND ANGLE CONTROLS - W/FLAT TYPE CONTROL LEVERS (09) - CHASSIS/ATTACHMENTS

1

A177435

BALL KNOB

control lever

3шт.

2

H433005

HANDLE

control, raise and lower, straight

1шт.

3

H433004

HANDLE

control, right-hand and left-hand angle, 30 degree

2шт.

4

A162299

BEARING,15.95mm ID

control levers

3шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

6

232-4114

LOCK NUT,1/4"-20, GC

6шт.

7

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

hex, 5/8 NC x 5-1/2 inch

1шт.

8

232-41110

NUT,5/8"-11, GC

1шт.

9

H432963

LINKAGE

angle control levers to valve spool eyes

2шт.

10

H432955

LINKAGE

raise and lower control lever to valve spool eye

1шт.

11

432-412

COTTER PIN,1/16" x 3/4"

6шт.
