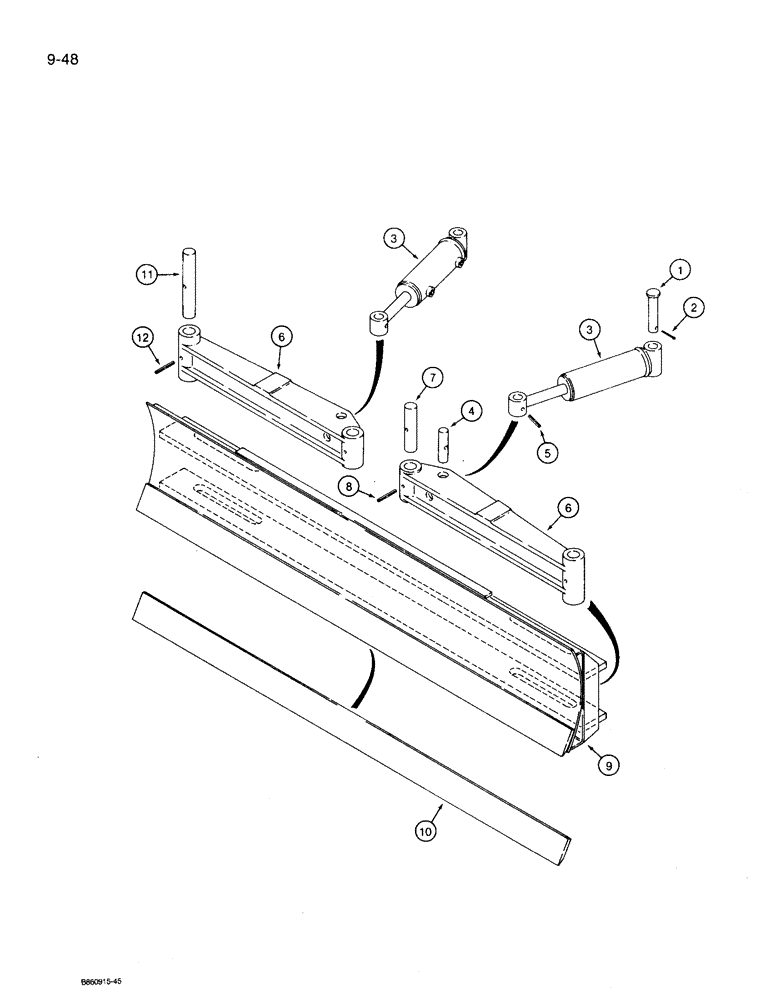

Запчасти Case 360 (9-048) - BACKFILL BLADE AND MOUNTING ARMS (09) - CHASSIS/ATTACHMENTS

1

H68676

RETAINER

clevis, closed end of angle cylinder to lift frame

2шт.

2

432-1628

COTTER PIN,1/4" x 1 3/4"

2шт.

3

H672496

CYLINDER ASSY.

angle, backfill blade, parts list Fig. 8-28

2шт.

4

H248732

CYLINDER BLOCK

clevis, rod end of angle cylinder to arm, swing

2шт.

5

138-177

LOCK PIN,3/8" x 2", Slotted

2шт.

6

H248609

ARM

blade angling

2шт.

7

H248724

AXLE PIN

clevis, arm to lift frame, pivot

2шт.

8

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

2шт.

9

H672025

WIPER

BACKFILL BLADE ASSEMBLY - spoil return, Incl. Ref. 10

1шт.

10

H251967

EDGE, CUTTING

cutting edge, backfill blade

1шт.

11

H249011

AXLE PIN

clevis, Serial Range: arm-blade

2шт.

12

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

2шт.
