(9-046) - BACKFILL BLADE LIFT FRAME AND MOUNTING

Запчасти Case 360 (9-046) - BACKFILL BLADE LIFT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

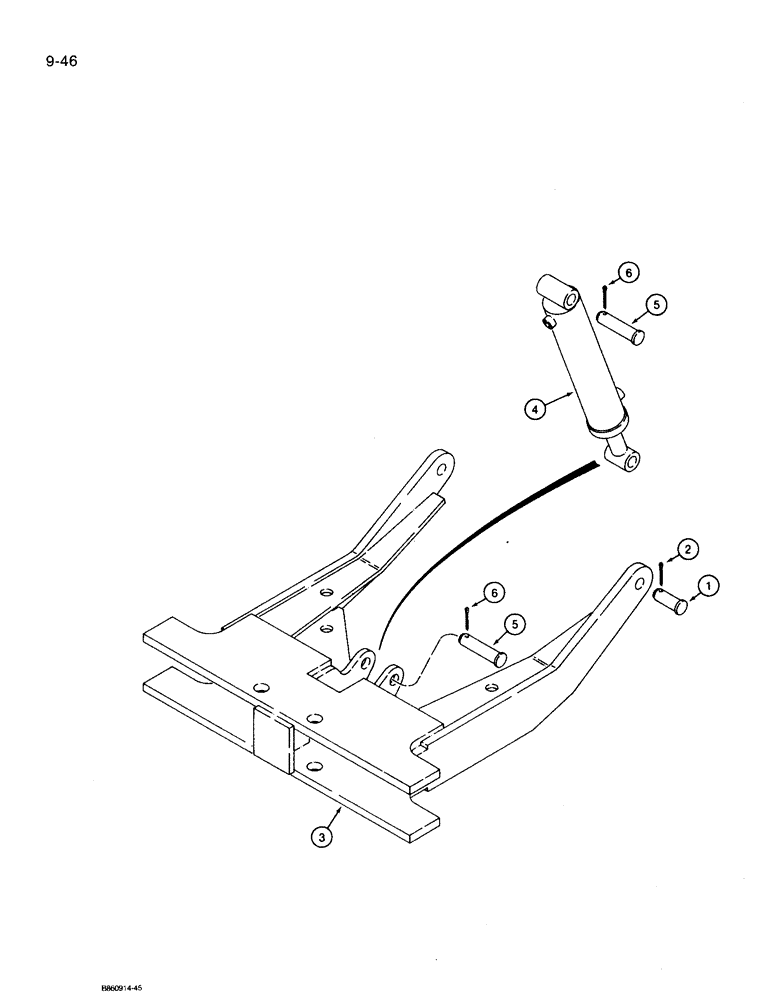

Схема запчастей Case 360 - (9-046) - BACKFILL BLADE LIFT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS
6
5
1
3
2
4
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H65011

AXLE PIN,25.3mm OD x 75.41mm L

clevis, lift frame to rear chassis

2шт.

2

432-1628

COTTER PIN,1/4" x 1 3/4"

2шт.

3

H672026

FRAME

backfill lift

1шт.

4

H672314

CYLINDER

lift, backfill blade, parts list Fig. 8-26

1шт.

5

H68676

RETAINER

clevis, closed end of lift cylinder to rear chassis and rod end of lift cylinder to lift frame

2шт.

6

432-1628

COTTER PIN,1/4" x 1 3/4"

2шт.
