(9-040) - STANDARD AND ANTI-BACKFLEX DIGGING CHAINS - 50,000 LB. CHAINLINE, 3 FOOT (0.914M) DEPTH BOOM

Запчасти Case 360 (9-040) - STANDARD AND ANTI-BACKFLEX DIGGING CHAINS - 50,000 LB. CHAINLINE, 3 FOOT (0.914M) DEPTH BOOM (09) - CHASSIS/ATTACHMENTS

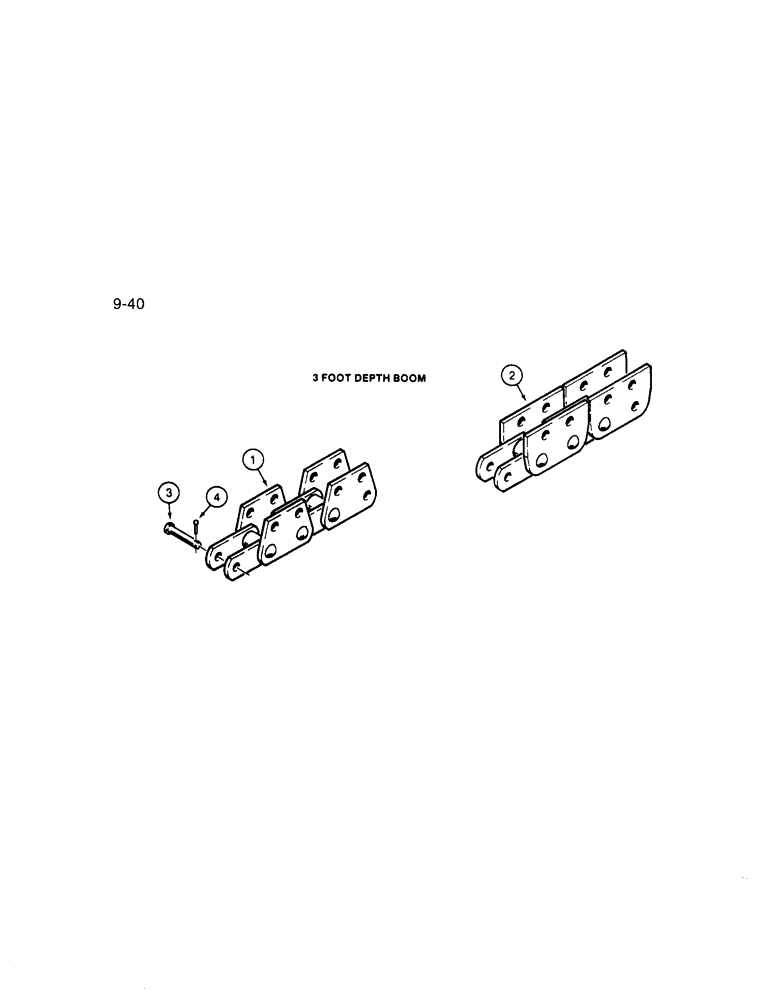

Схема запчастей Case 360 - (9-040) - STANDARD AND ANTI-BACKFLEX DIGGING CHAINS - 50,000 LB. CHAINLINE, 3 FOOT (0.914M) DEPTH BOOM (09) - CHASSIS/ATTACHMENTS
2
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H542068

CHAIN (CE)

digging, standard, 48 pitches

1шт.

2

H644260

CHAIN (CE)

digging, anti-backflex, 48 pitches, Incl. Ref. 3 and 4

1шт.

3

H145011

AXLE PIN

clevis, connector

1шт.

4

H170399

LOCK PIN

clevis, pin retaining, chain

1шт.

Выбрано товаров: 4
