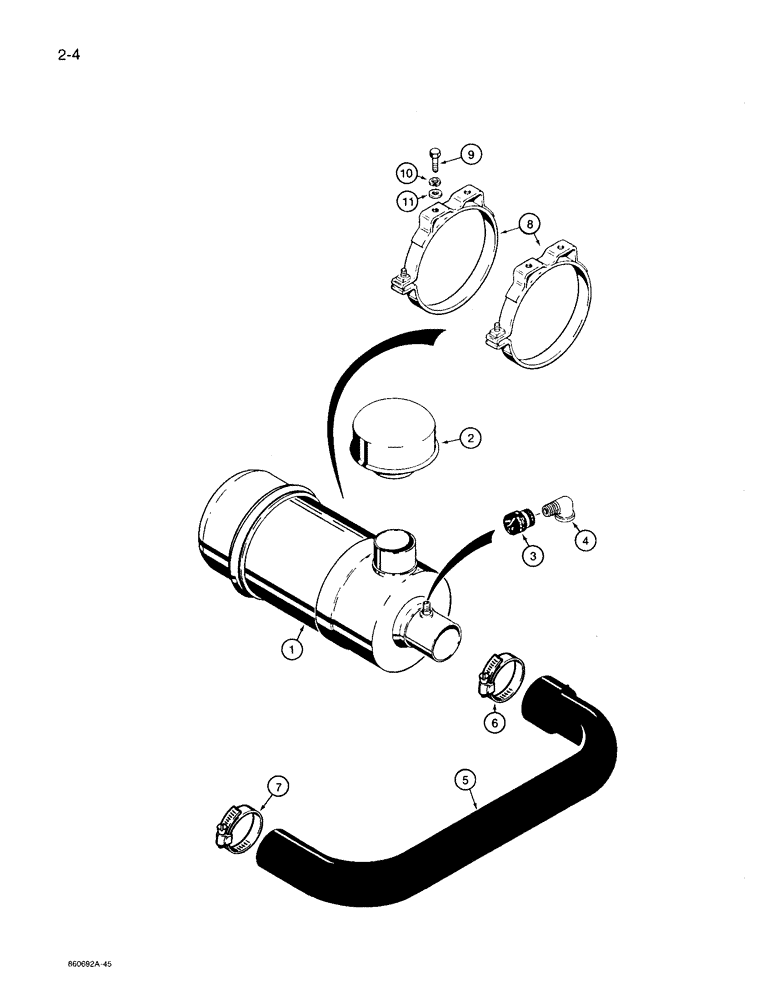

Запчасти Case 360 (2-04) - AIR CLEANER AND INTAKE - WISCONSIN GASOLINE ENGINE MODELS (02) - ENGINE

1

D55203

CLEANER ASSY.

air, engine, parts list Fig. 2-10

1шт.

2

D22685

CAP

air cleaner, metal

1шт.

3

E77901

INDICATOR

air cleaner restriction

1шт.

4

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street

1шт.

5

H433336

INTAKE AIR HOSE,44.50 mm ID, 50.00 mm ID x 381.00 mm, SAE 20R4 CLASS D-2

air cleaner to engine

1шт.

6

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

Air cleaner hose, at air cleaner

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Air cleaner hose, at engine

1шт.

8

R41654

COLLAR CLAMP

air cleaner mounting

2шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

10

492-11031

LOCK WASHER,5/16"

4шт.

11

H426775

WASHER

flat, hardened

4шт.
