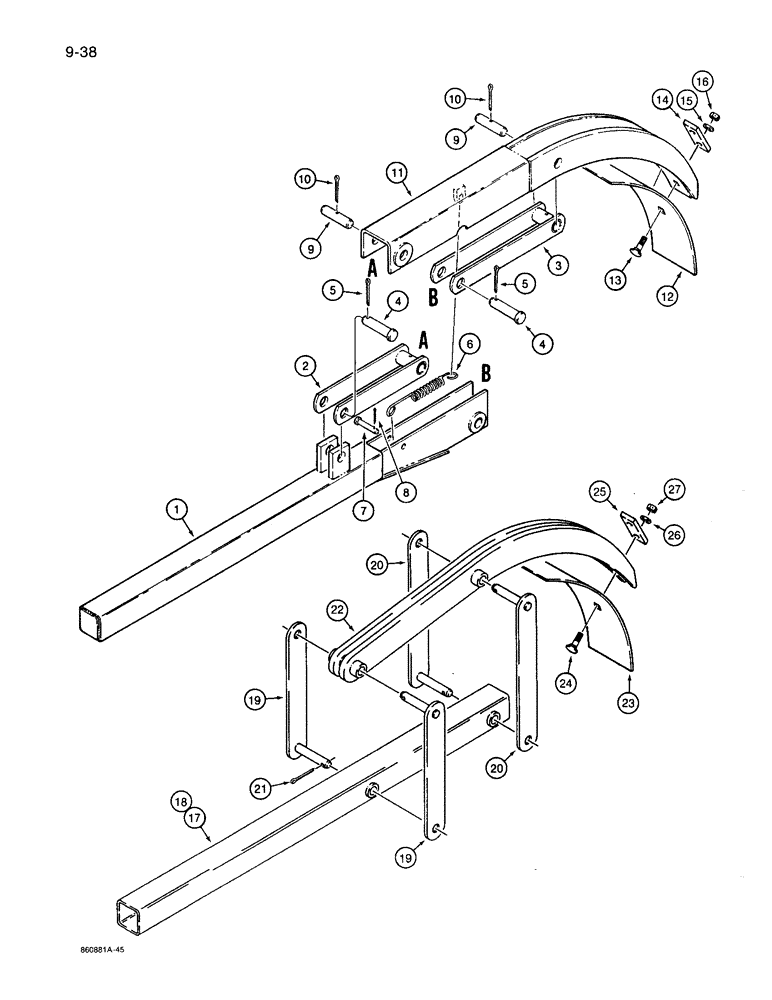

Запчасти Case 360 (9-038) - CRUMBER BOOM ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

1

H542894

BOOM

crumber, 3 foot depth WITH SPRINGS

1шт.

2

H536664

DRAG LINK

short, upper BOOMS WITH SPRINGS

1шт.

3

H532440

DRAG LINK

long, lower BOOMS WITH SPRINGS

1шт.

4

H54320

AXLE PIN,19.05mm OD x 79.38mm L

clevis, special, link retaining, 3/4 x 2-7/8 inch long BOOMS WITH SPRINGS

2шт.

5

432-1624

COTTER PIN,1/4" x 1 1/2"

Booms with springs

2шт.

6

H128280

VALVE SPRING

crumber boom

1шт.

7

H54395

AXLE PIN,9.47mm OD x 60.33mm L

clevis, special, spring retaining, 3/8 x 2-1/4 inch long BOOMS WITH SPRINGS

1шт.

8

432-816

COTTER PIN,1/8" x 1"

Booms with Springs

1шт.

9

H118109

AXLE PIN,19.05mm OD x 92.08mm L

clevis, blade retaining BOOMS WITH SPRINGS

2шт.

10

432-1224

COTTER PIN,3/16" x 1-1/2"

Booms with springs

2шт.

11

H536656

BRACKET

crumber blade BOOMS WITH SPRINGS

1шт.

12

H127480

BLADE

crumber, 5 inch wide blade for 6 inch wide cut, if used BOOMS WITH SPRINGS

1шт.

12

H60087

BLADE

crumber, 7 inch wide blade for 8 inch wide cut, if used BOOMS WITH SPRINGS

1шт.

12

H60103

BLADE

crumber, 9 inch wide blade for 10 inch wide cut, if used BOOMS WITH SPRINGS

1шт.

12

H60129

BLADE

crumber, 11 inch wide blade for 12 inch wide cut, if used BOOMS WITH SPRINGS

1шт.

12

H60145

BLADE

crumber, 13 inch wide blade for 14 inch wide cut, if used BOOMS WITH SPRINGS

1шт.

13

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

carriage, 1/2 NC x 4 inch, grade 2 BOOMS WITH SPRINGS

2шт.

14

H309450

SPACER

blade BOOMS WITH SPRINGS

1шт.

15

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Booms with springs

2шт.

16

232-4118

NUT,1/2"-13, GC

Booms with springs

2шт.

17

H659177

TUBE

BOOM - crumber, 4 foot depth WITHOUT SPRINGS

1шт.

18

H659185

TUBE

BOOM - crumber, 5 foot depth WITHOUT SPRINGS

1шт.

19

H659144

LINK

short BOOMS WITHOUT SPRINGS

2шт.

20

H659151

LINK

long BOOMS WITHOUT SPRINGS

2шт.

21

432-1220

COTTER PIN,3/16" x 1 1/4"

Booms without springs

4шт.

22

H659201

SUPPORT

crumber blade BOOMS WITHOUT SPRINGS

1шт.

23

H127480

BLADE

crumber, 5 inch wide blade for 6 inch wide cut, if used BOOMS WITHOUT SPRINGS

1шт.

23

H60087

BLADE

crumber, 7 inch wide blade for 8 inch wide cut, if used BOOMS WITHOUT SPRINGS

1шт.

23

H60103

BLADE

crumber, 9 inch wide blade for 10 inch wide cut, if used BOOMS WITHOUT SPRINGS

1шт.

23

H60129

BLADE

crumber, 11 inch wide blade for 12 inch wide cut, if used BOOMS WITHOUT SPRINGS

1шт.

23

H60145

BLADE

crumber, 13 inch wide blade for 14 inch wide cut, if used BOOMS WITHOUT SPRINGS

1шт.

24

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

carriage, 1/2 NC x 4 inch, grade 2 BOOMS WITHOUT SPRINGS

2шт.

25

H309450

SPACER

blade BOOMS WITHOUT SPRINGS

1шт.

26

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Booms without springs

2шт.

27

232-4118

NUT,1/2"-13, GC

Booms without springs

2шт.
