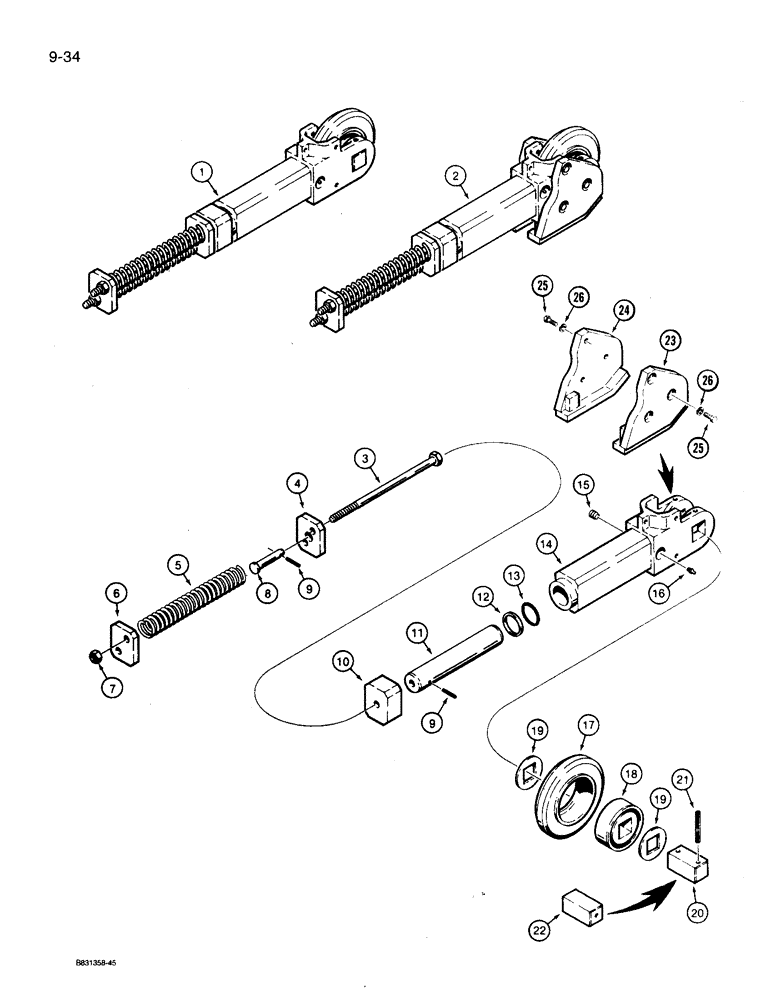

Запчасти Case 360 (9-034) - TRENCHER BOOM END ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

1

H531087

BOOM

END ASSEMBLY - boom, sprocket uniboom

1шт.

2

H645358

END

END ASSEMBLY - boom, channel uniboom, Incl. Ref. 3 - 26

1шт.

H531111

VALVE SPRING

adjusting, Incl. Ref. 3 - 7

1шт.

3

H90787

BOLT

special

2шт.

4

H115238

VALVE SPRING

RETAINER - spring, front

1шт.

5

H101998

VALVE SPRING

SPRING - adjusting

2шт.

6

H119164

VALVE SPRING

RETAINER - spring, rear

1шт.

7

230-41110

LOCK NUT,5/8"-11, GA

2шт.

8

H119172

CLEVIS COUPLING

special, block assembly retaining

1шт.

9

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

1шт.

10

H115196

BEARING

PLATE - bearing

1шт.

11

H115188

PLUNGER

ROD

1шт.

12

H755009

RING

backup, O-ring

1шт.

13

H748871

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

plunger rod seal

1шт.

14

H115204

CASTING

END - boom, roller mounting

1шт.

15

H114728

PLUG

bleed

1шт.

16

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

with cap, special, straight, 1/8" PTF, special short

1шт.

H531384

ROLLER

boom end, Incl. Ref. 17 and 18

1шт.

17

H115261

ROLLER

boom end, digging chain

1шт.

18

H747444

ROLLER BEARING,1.5" ID x 100 mm OD x 1.3125"

roller

1шт.

19

H117598

WASHER

roller, spacer

2шт.

20

H115246

SHAFT

roller, square, used on H531087 boom end assembly

1шт.

21

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

Shaft, used on H531087 boom end assembly

2шт.

22

H381426

SHAFT

roller, square, used on H645358 boom end assembly

1шт.

23

H644070

SHOE (ASSY)

skid, right-hand, used on H645358 boom end assembly

1шт.

24

H644088

SHOE (ASSY)

skid, left-hand, used on H645358 boom end assembly

1шт.

25

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Used on H645358 boom end assembly

6шт.

26

492-11038

LOCK WASHER,3/8"

Used on H645358 boom end assembly

6шт.
