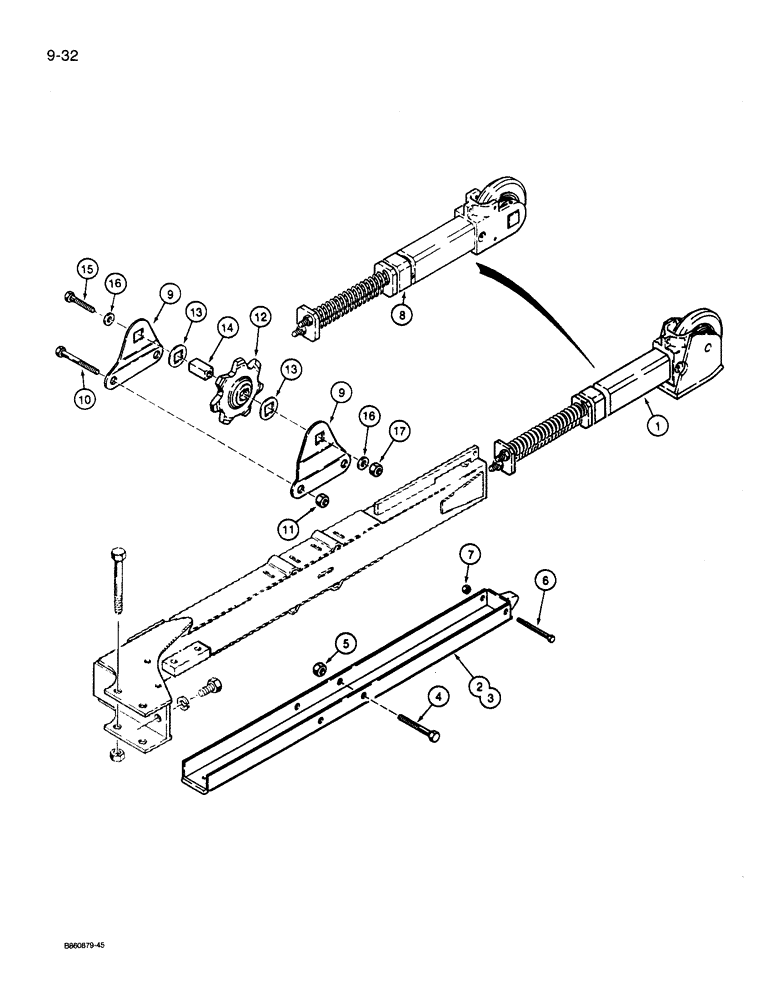

Запчасти Case 360 (9-032) - TRENCHER BOOM END AND SPROCKET MOUNTING - CHANNEL BOOM PARTS (09) - CHASSIS/ATTACHMENTS

1

H645358

END

boom, channel uniboom, parts list Fig. 9-34

1шт.

2

H651885

CHANNEL

boom, 3 foot depth, mounts to bottom of boom

1шт.

3

H651869

CHANNEL

boom, 4 foot depth, mounts to bottom of boom

1шт.

4

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

hex, 5/8 NC x 4-1/4 inch

2шт.

5

232-41110

NUT,5/8"-11, GC

2шт.

6

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

hex, 1/2 NC x 4-1/4 inch

1шт.

7

232-4118

NUT,1/2"-13, GC

1шт.

8

H531087

BOOM

END ASSEMBLY - boom, sprocket uniboom, parts list Fig. 9-34

1шт.

9

H388959

BRACKET

sprocket mounting

2-4-8шт.

10

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2-4-8шт.

11

232-41110

NUT,5/8"-11, GC

2-4-8шт.

12

H531251

PINION

SPROCKET ASSEMBLY - boom, Incl. Ref. 10, 11 and 12 on Fig. 9-30

1-2-4шт.

13

H117606

WASHER

sprocket

2-4-8шт.

14

H251033

BOOM

SHAFT - sprocket mounting

1-2-4шт.

15

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

1-2-4шт.

16

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

2-4-8шт.

17

232-41110

NUT,5/8"-11, GC

1-2-4шт.
